Description
Production 10 HP shaper.

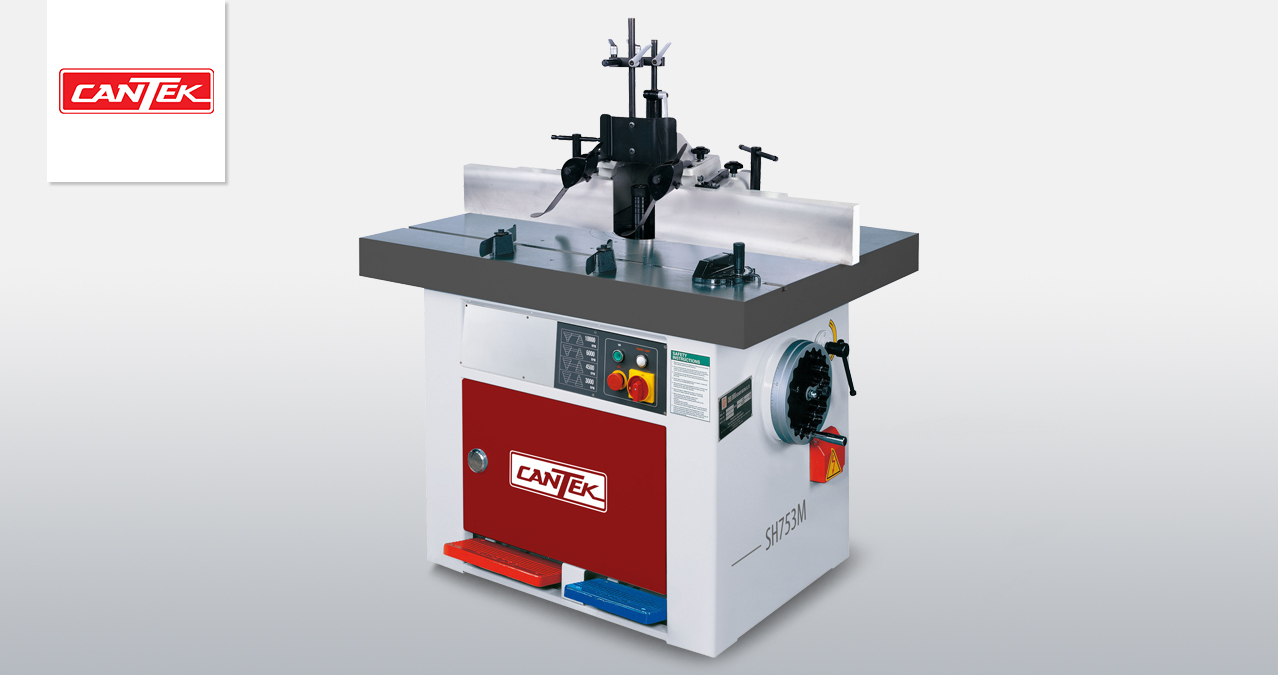

The Cantek SH753M spindle shaper is a ruggedly built shaper with an economical price point. Its industrial design and 10HP motor make it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more. The powerful dual-direction 10HP driven spindle allows for optimum shaping even with large profiles. The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.
Why Cantek SH753M Spindle Shaper?
- 1 ¼” interchangeable spindle is standard (other sizes available).
- Large high grade cast-iron table is ground and polished for maximum stability and durability.
- Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig.
- Powerful 10 HP motor for even the most demanding profiling work.
- Five spindle speeds can be easily adjusted to suit your tool diameter.
- Precision fence assembly with micro infeed and outfeed fence adjustment.
- Precision ground and electronically balanced spindle.
- V-belt drive with (4) spindle speeds is easily accessed from the front of the machine.
- 1 ¼” Interchangeable cutter spindle is standard.
- Forward/reverse spindle rotation.
- Foot pedal spindle braking system and foot pedal spindle lock for changing tools
- Includes the following standard equipment:
- 1 ¼” spindle.
- (1) 4″ dust chute on guard & (1) 4″ dust chute in the table
- (2) spring steel hold downs
- Mitre tenoning jig
-
Specs
Spindle Diameter|1-1/4″
Spindle Travel|7″ (180mm)
Spindle Speeds|3000 / 4500 / 7500 / 10000 rpm. (4 Speeds)
Spindle Taper|MK5
Table Size|36-1/2″ x 48″ (930 x 1220mm)
Table Insert Opening Diameter|Ø3-15/16″, 6-3/4″, 8-1/4″, 10-1/4″, 13-1/4″ (100, 170, 210, 260, 336mm)
Sindel Capacity Under Nut| 5-1/2″
Table Height|35-1/2″ (900mm)
Fence Size|23-1/2″ x 5-3/4″ (600 x 146mm)
Motor Horsepower|10HP 230V 3PH
N.W.|1430 lbs(650kgs)
G.W.|1650 lbs(750kgs)
Packing Dimensions|53″(L) x 42″(W) x 51″(H) -
