Description
Production 7.5 HP shaper.

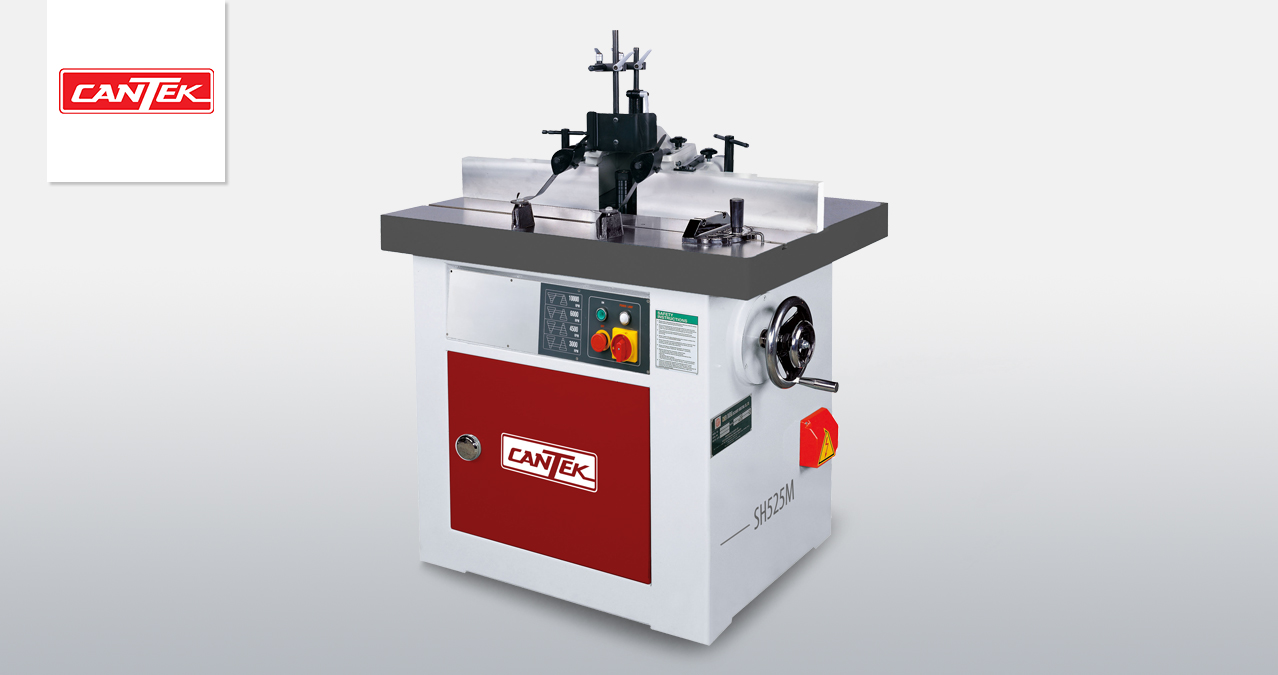

The Cantek SH525M Spindle Shaper is a ruggedly built shaper with an economical price point. Its industrial design and 7.5HP motor make it the ideal shaping solution for edge-profiling, door & furniture components, mouldings, tenoning, and more. The powerful dual-direction 7.5HP driven spindle allows for optimum shaping even with large profiles. The heavy-duty cast-iron table and shaping column ensure maximum stability with superior vibration damping for optimum finish quality.
Why Cantek SH525M Spindle Shaper?
- 1 ¼” interchangeable spindle is standard (other sizes available).
- Large high grade cast-iron table is ground and polished for maximum stability and durability.
- Cast iron ground & polished table with insert rings & t-slot for mitre / tenoning jig.
- Powerful 7.5 HP motor for even the most demanding profiling work.
- Five spindle speeds can be easily adjusted to suit your tool diameter.
- Precision fence assembly with micro infeed and outfeed fence adjustment.
- Precision ground and electronically balanced spindle.
- V-belt drive with (4) spindle speeds is easily accessed from the front of the machine.
- 1 ¼” Interchangeable cutter spindle is standard.
- Forward/reverse spindle rotation.
- Includes the following standard equipment:
- 1 ¼” spindle.
- (1) 4″ dust chute on guard & (1) 4″ dust chute in the table
- (2) spring steel hold downs
- Mitre tenoning jig
-
Specs
Spindle Dia.|1-1/4″
Spindle Speed|3000 / 4500 / 7500 / 10000 rpm.
Taper of Spindle|MK5
Sindle Motor|5 HP 230V 3PH
Spindle Travel|130mm (5″)
Spindle capacity under nut| 4-1/2″
Max. Table Insert Diameter|220mm (8-5/8″)
Table Size|700 x 900mm (27-1/2″ x 35-1/2″)
Table Height|900mm (35-1/2″)
Fence Size|125 x 900mm (4-15/16″ x 35-1/2″)
N.W.|695 lbs(316kgs)
G.W.|854 lbs(388kgs)
Packing Dimensions|42″(L) x 38″(W) x 50″(H)
