Description

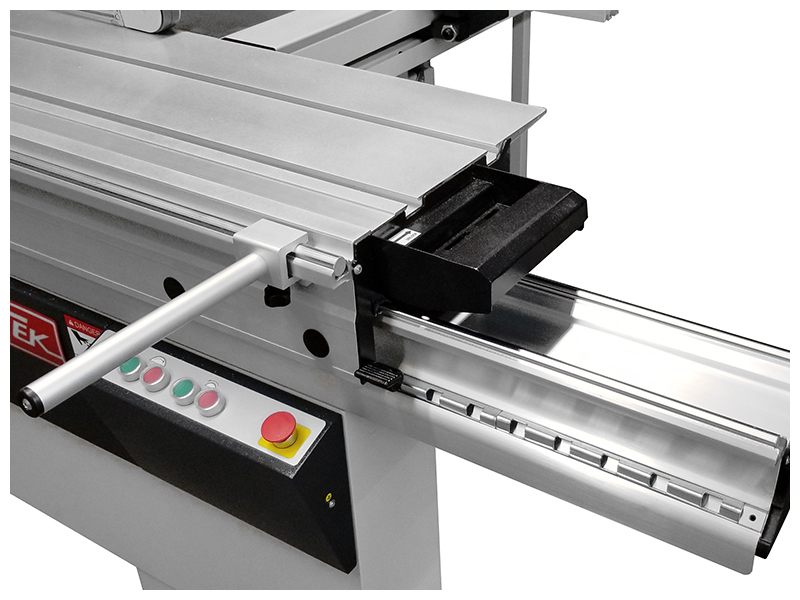

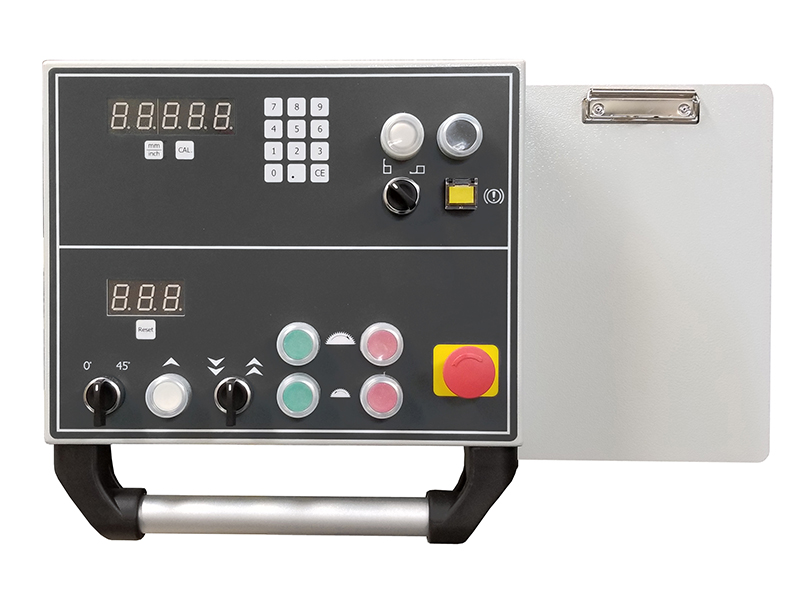

Stop walking around your saw with the programmable rip fence. The Cantek D405ANC 1-Axis Sliding Table Saw is the ideal sliding panel saw for high accuracy cutting of sheet materials for the production of kitchen cabinetry, furniture, millwork operations, and more. The NC rip fence provides the operator with the added convenience of setting the rip width automatically through an eye level control. This saves time while providing a high level of accuracy and repeatability. The 10’ sliding table is made from a precision aluminum extrusion and runs on precision linear guide rails.
-
Specs
Sliding table dimensions 126 x 15.5″
Cast iron table dimensions 21.6″ x 35.3″
Extension table (rear) 38.7″ x 35.25″
Extension table (front) 32.7″ x 12.6″
Table size 59″ x 68″
Main saw blade (Max.) 16″
Main saw bore dia. 30mm
Max. cutting height @ 90° (355mm) 4.13″
Max. cutting height @ 90° (400mm) 5.12″
Max. cutting height @ 45° (355mm) 2.75″
Main motor power 7.5 HP
Main blade speed 3000 / 4000 / 5000 RPM
Scoring blade dia. 120mm
Scoring blade bore dia. 20mm
Scoring blade motor power 1 HP
Scoring blade speed 8000 RPM
Max. rip cutting width 51″
Cutting width adjustment Motorized
Saw blade tilting adjustment 0~45° (Motorized)
Scoring saw adjustment Manual
Dust collection outlets 4.72″ x 4″
Machine shipping dimensions 83″ x 45.25″ x 44″
Machine NW / GW 1228 / 1428 lbs
Sliding table shipping dimensions 137″ x 19.3″ x 14.6″
Sliding table NW / GW 310 / 381 lbs
Rip fence shipping dimensions 73.25″ x 12.6″ x 13″
Rip Fence NW / GW 90 / 115 lbs
Machine total weight NW/GW 1628/1923 lbs
Electrics 230/3/60 =26.20 Full total Amps -
