Description
•Large precision ground table provides a stable work surface. •Cast iron base offers a steady platform.
•Fully enclosed cabinet and blade dust shroud for better dust management.
•Precision ground 5/8” arbor.
•Wide stance trunnion features a left tilt blade.
•Poly V-belt drive smoothly transfers power to the blade.

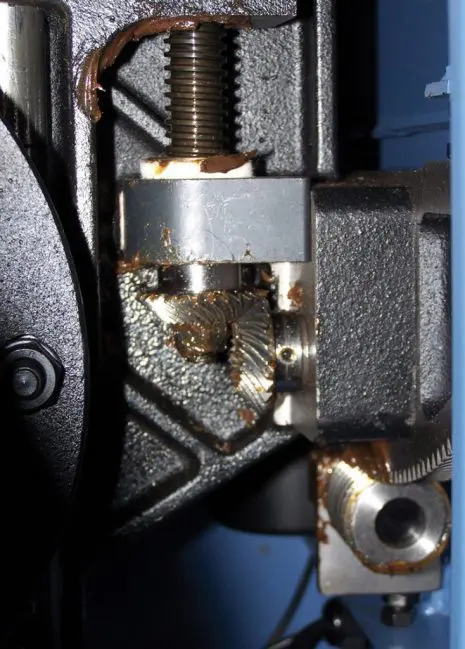

•Hydraulic assisted blade lift mechanism for easy movement.
•Large chrome hand wheels allow easy adjustments.
•Includes digital readout of blade tilt.
•Riving knife splitter for added safety against kick-back.

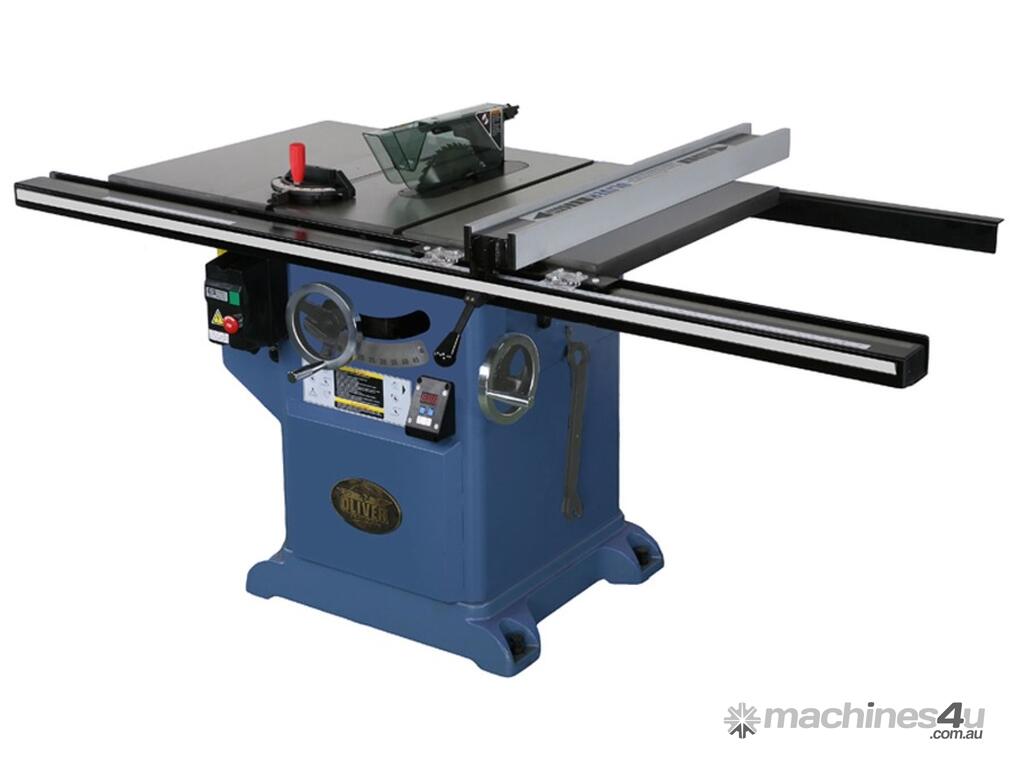

•Optimus T-square fence available in 36” or 52” rip capacity.
•36” rail includes (2) cast iron extension wings.

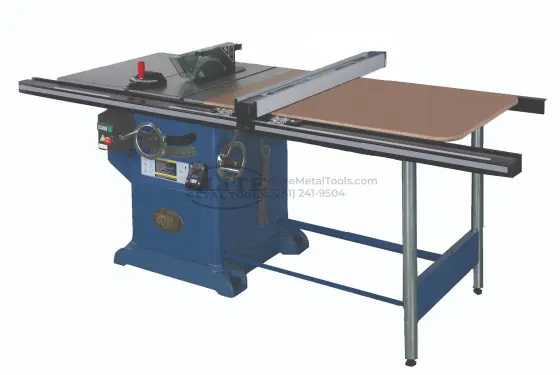

•52” rail includes wood side table and (1) cast iron extension wing.
•Optional rear support table available.
•Magnetic controls with emergency off switch.
•Powerful TEFC motor available in single or three-phase.
•Miter gauge included. -
Specs
Model Number|4016
Stock No. (5HP, 1Ph)|4016.003
Stock No. (5HP, 3Ph)|4016.004
Blade Diameter|10″
Arbor Diameter|5/8″
Blade Tilt|Left
Arbor Speed|3,450 RPM
Maximum Depth of Cut at|90° 3″
Maximum Depth of Cut at|45° 2-1/4″
Maximum Width of Dado|13/16″
Maximum Cut to Right of Blade |36”or 52” with side table
Maximum Cut to Left of Blade|12″
Dust Port Diameter|4″
Table Dimensions w/o Extensions|27”D x 21-1/4”W
Wing Size|27” x 12”
Table Height|36″
Motor 1Ph|5HP, 1Ph, 220V Only (18 amps)
Motor 3Ph|5HP, 3Ph, 220V/440V* Prewired 220V (15/7.5 Amp)
Overall Dimensions|74”L x 32-½”W x 40”H
Net Weight|480 lbs.
Gross Weight|720 lbs.
