Description

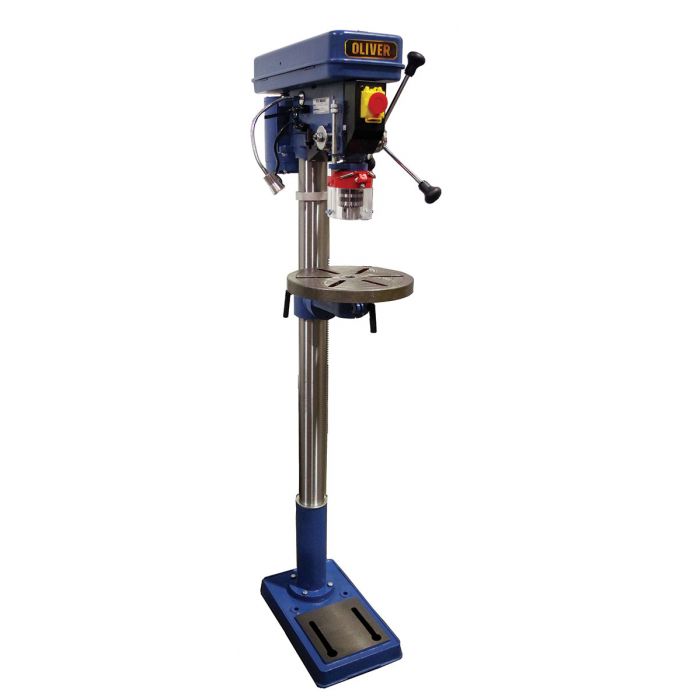

•Available in bench or floor model version. (Bench model number is 10060)
•Line interrupt switch requires manual start in the event of a power loss.
•Spindle is supported by high quality sealed ball bearings.

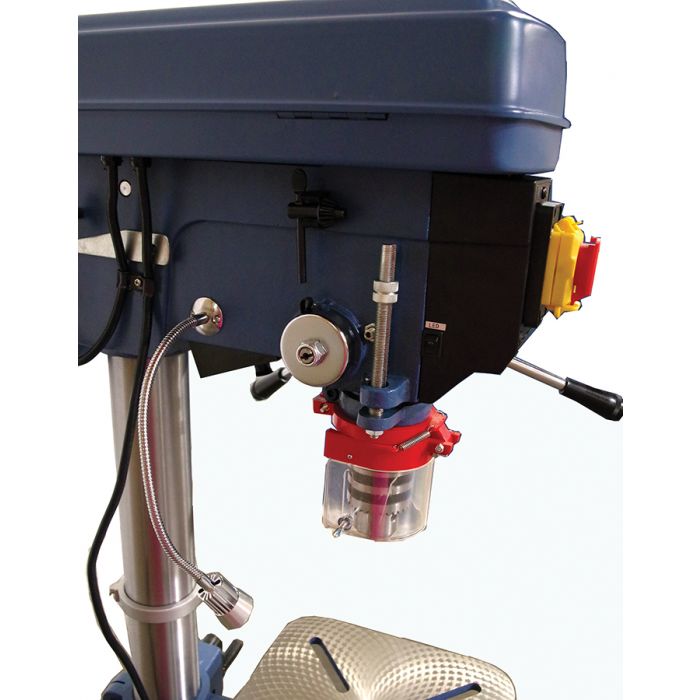

•LED lamp provides a well lit work area.
•Table rotates 360° and tilts 45°.
•Crank operation moves table up and down with locking clamp.

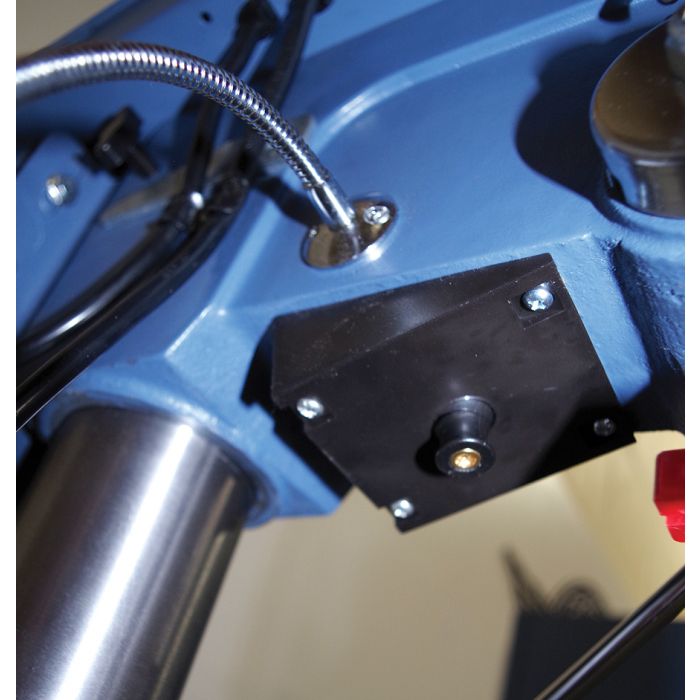

•Laser pointer is built-in for precise repeat drilling.

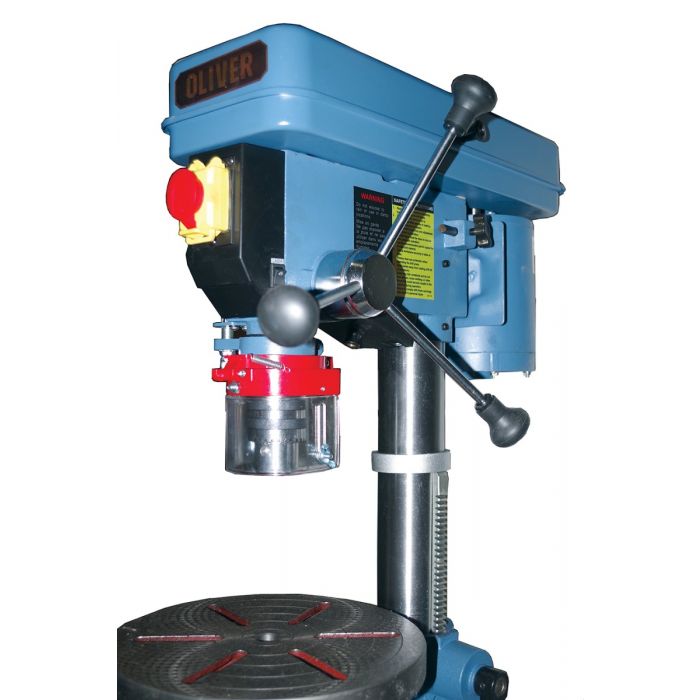

•Drill chuck guard included.
•5/8”chuck and key holder included.

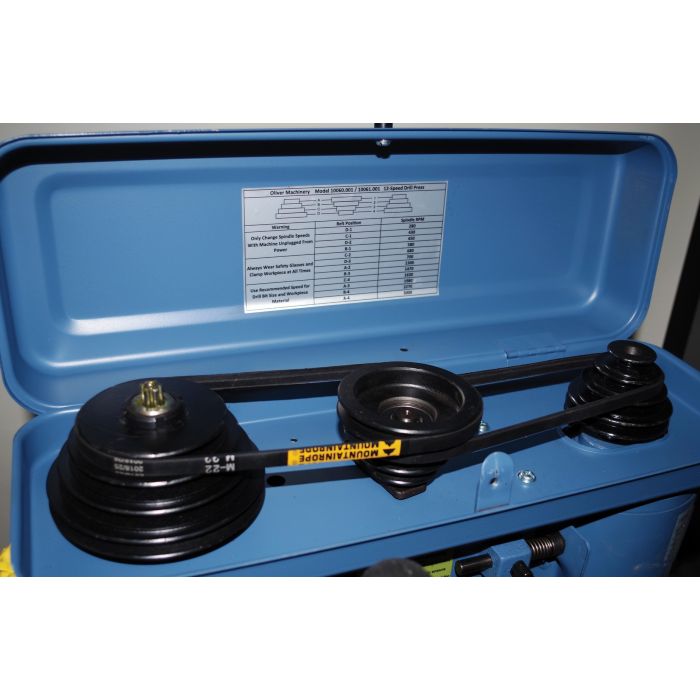

•Cast iron pulleys reduce vibration.
•Positive depth stop allows repeated operations with ease.
•Powerful 1/2 HP Motor. -
Specs
Type|14” Floor
Swing|13-1/4”
Drilling Capacity|3/4”
Chuck Capacity|5/8”
Chuck Taper|JT-3
Table Size|11-1/2” Round
Table Tilt|+/- 45°
Spindle Taper|MT-2
Spindle Travel|3-1/8″
Spindle Speeds|12
Speed Range RPM|280 to 3,000
Spindle to Table|31-1/2”
Spindle to Base |48-1/2”
Column Diameter|2-7/8”
Base Size|10-1/2” x 16-3/4”
Overall Height|62”
Motor|1/2HP, 1Ph 115V (8 Amps)
Net Weight|126 lbs.
Gross Weight|135 lbs.
