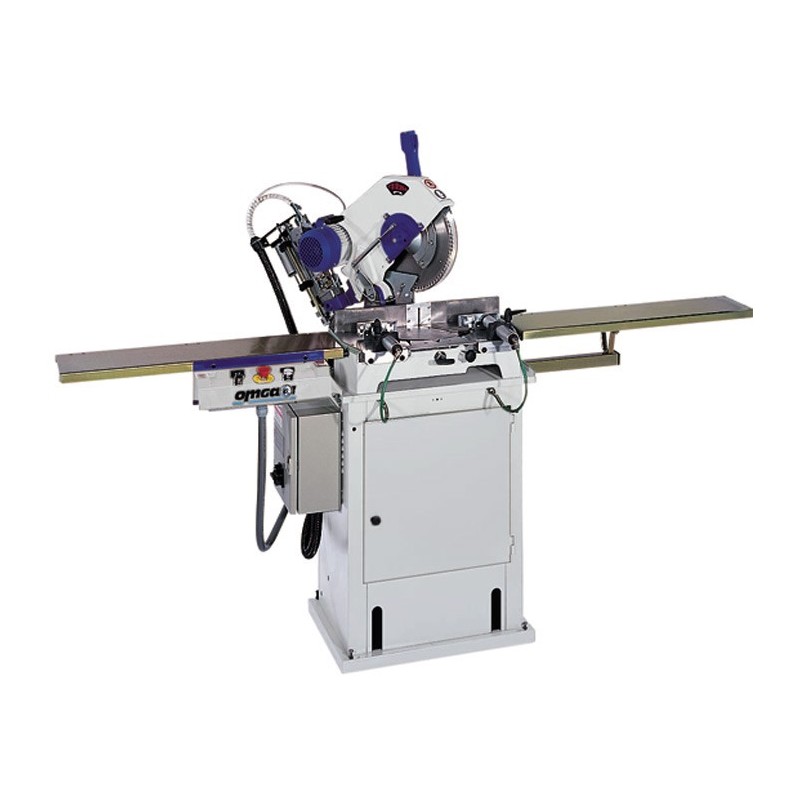

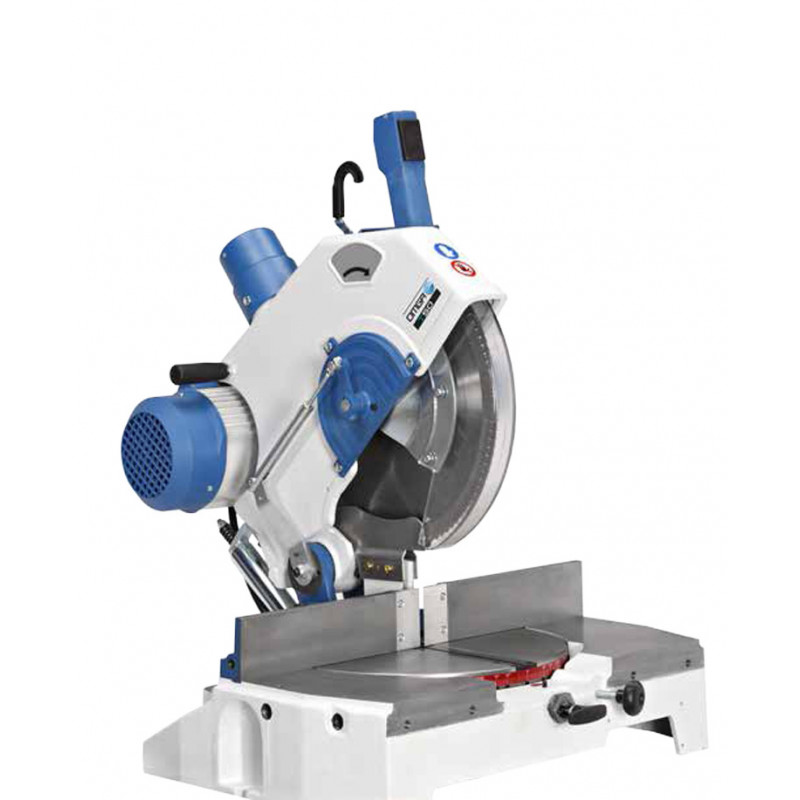

T 50-350 | OMGA | Miter Saws
-
Power:230V 3PH
-
Description
14″ Mitre Chop Saw 3HP Motor Width Cutting Capacity 6 11/16″ Thickness Capacity 4 5/16″ The heaviest duty of all model of OMGA’s Precision Mitre Chop Saws (along with the T 53 370). It features a solid cast iron base and head construction. The rotating table rides on roller bearings for maximum smoothness and accuracy. Positive stops at 45, 30, 22 1/2, 15 and 10 degrees on both sides of the rotation and an independently fine tunable one at 90 degrees. A manual locking device for all the intermediate angles provides a great flexibility to this unit. The belt driven transmission and a powerful 3 HP induction motor make of the T 50 350 the ideal tool for heavy duty industrial usage. This machine is designed to be fitted with a wide variety of optional accessories to make it perfect for any application. This precision saw is a multi purpose machine suitable for use in general carpentry, for cutting moulding, picture frames, furniture components and any application requiring precision cutting.
-
Specs
Cross cut capacity 90 Deg.|6 3/4″
Cross cut capacity 45 Deg.|4 3/4″
Max. Depth of Cut|4 5/16″
Max. Depth of cut 45 Deg.|N/A
Motor power|3 HP
Max. Beveled Cross Cut|N/A
Saw bore|1″
Saw blade diameter|14″
Arbor Speed RPM|3200
Dust Chute Diameter|3 1/8″
Table Size|23 5/8″ X 17 1/8″
Shipping Weight Lbs.|222
Crated Dimensions|26″ X 25″ X 30″ -
