Description

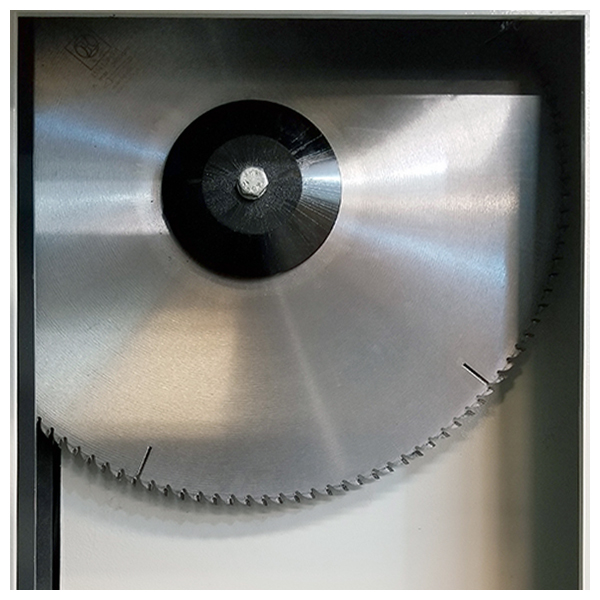

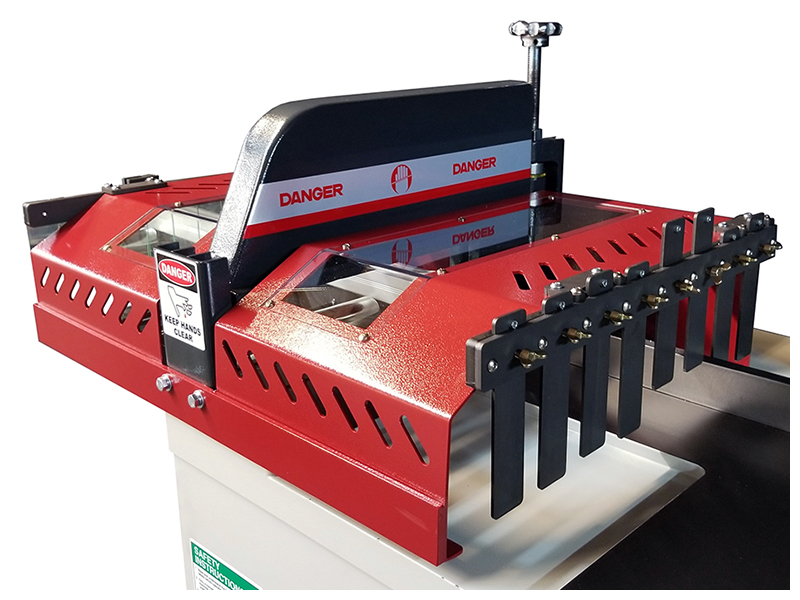

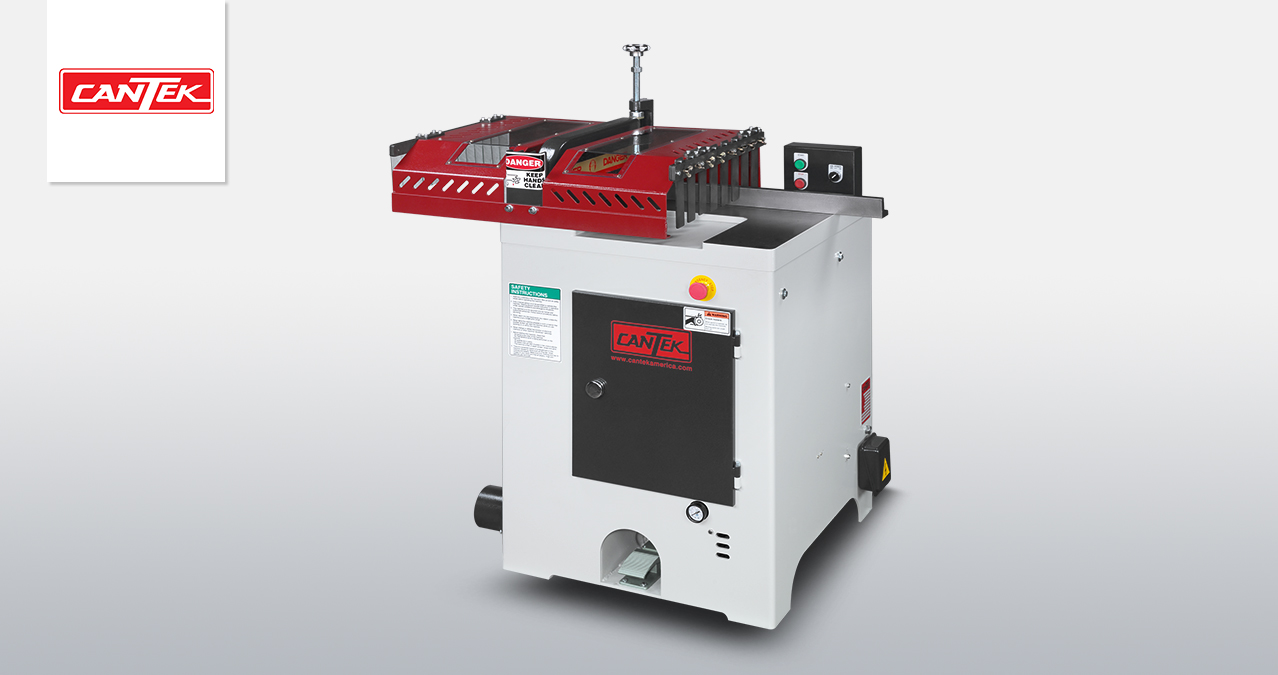

The Cantek PCS18 18″ pneumatic cut-off saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 10HP motor and adjustable cutting stroke ensure it can effortlessly cut through a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.
-
Specs

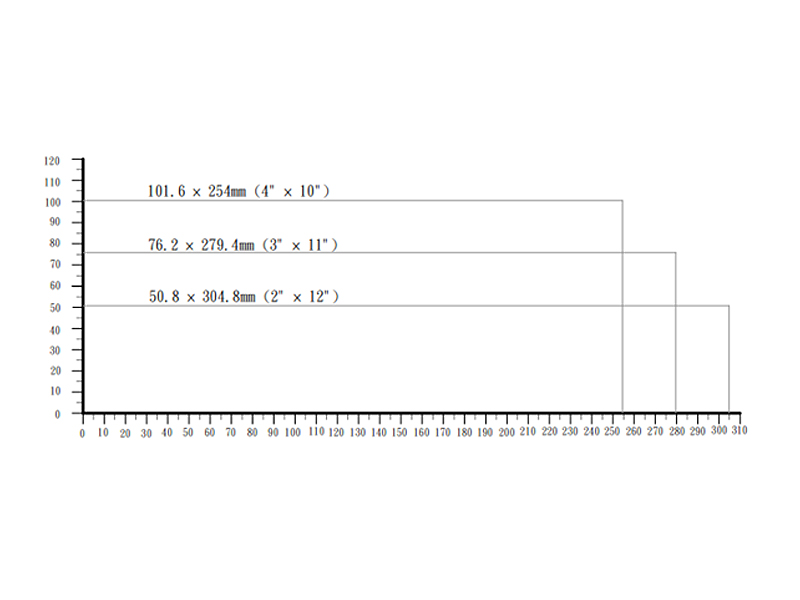

Cutting capacity (thickness x width)|2″ x 12″, 3″ x 11″, 4″ x 10″
Cycle speed|45 strokes/min
Cycle operation|Air
Saw blade size (optional)|18″
Saw arbor diameter|1″
Saw blade speed|3600 RPM
Dust exhaust diameter|Ø4″
Air|9.8 CFM / 70-85 PSI
Motor|10 HP
Table size|26″ x 27 ½”
Net weight|770 lbs.
Shipping weight|902 lbs.
Machine dimensions (LxWxH)|42” x 27” x 48”
Packing dimensions (L x W x H)|37” x 33 ½” x 53.2”
Power requirements|230/3/60 = 28 amps | 460/3/60 = 14 amps -
