Description

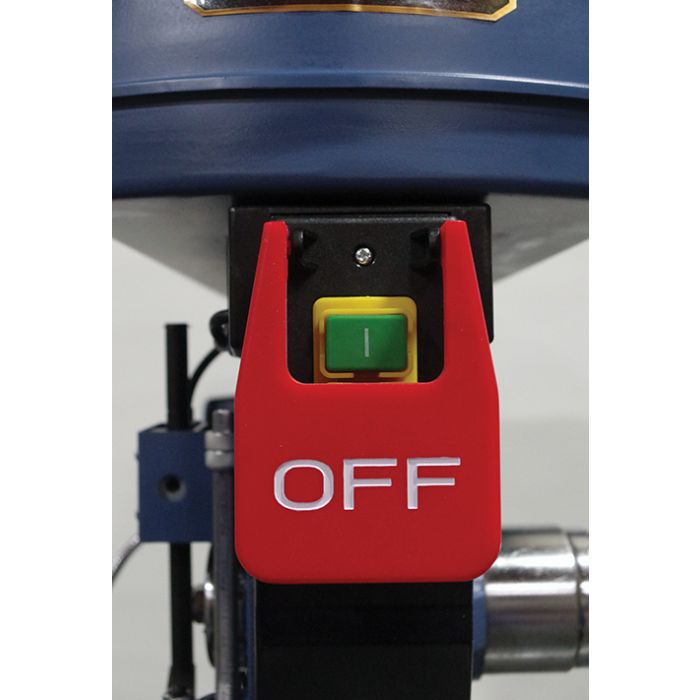

•Line interrupt switch requires manual start in the event of a power loss.
•Spindle is supported by high quality sealed ball bearings.
•LED lamp provides a well lit work area.
•Table rotates 360° and tilts 45°.
•Crank operation moves table up and down with locking clamp.•Precision ground table features T-slots
•Laser pointer is built-in for precise repeat drilling.

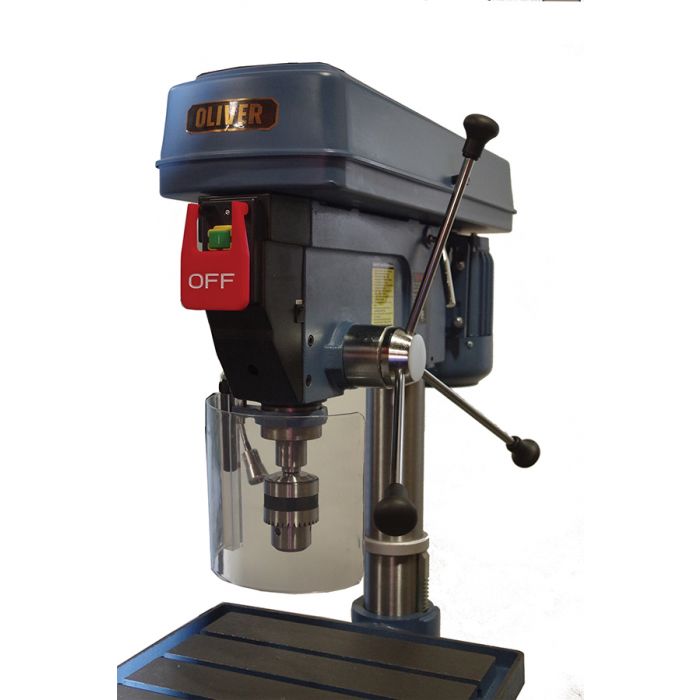

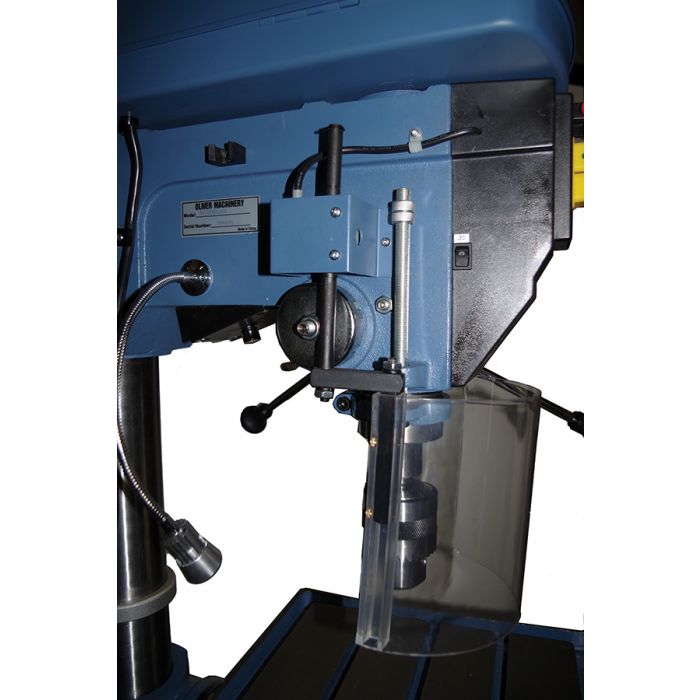

•Drill chuck guard included.
•3/4”chuck and key holder included.

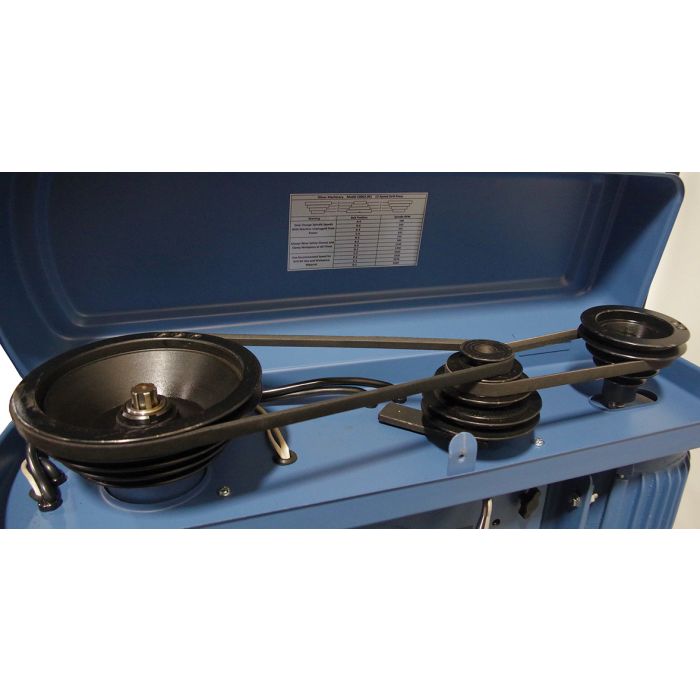

•Cast iron pulleys reduce vibration.
•Positive depth stop allows repeated operations with ease.
•Powerful 1-1/2 HP Motor. -
Specs
Type|22” Floor
Swing|22”
Drilling Capacity|1-1/4”
Chuck Capacity|3/4”
Chuck Taper|JT-3
Table Size|16” x 18-1/2”
Table Tilt|+/- 45°
Spindle Taper|MT-3
Spindle Travel|4-1/2”
Spindle Speeds|12
Speed Range RPM|180 to 3,420
Spindle to Table|26-3/4”
Spindle to Base |48”
Column Diameter|3-7/8”
Base Size|19-5/8” x 22-3/4”
Overall Height|68-3/4”
Motor|1.5HP, 1Ph, 115V (21 Amps)
Net Weight|380 lbs.
Gross Weight|395 lbs.
