Description
- BYRD Shelix carbide inserts are indexed for quick changing.
- Massive cast iron construction throughout.
- Polished built-in table roller assists movement of rough stock.

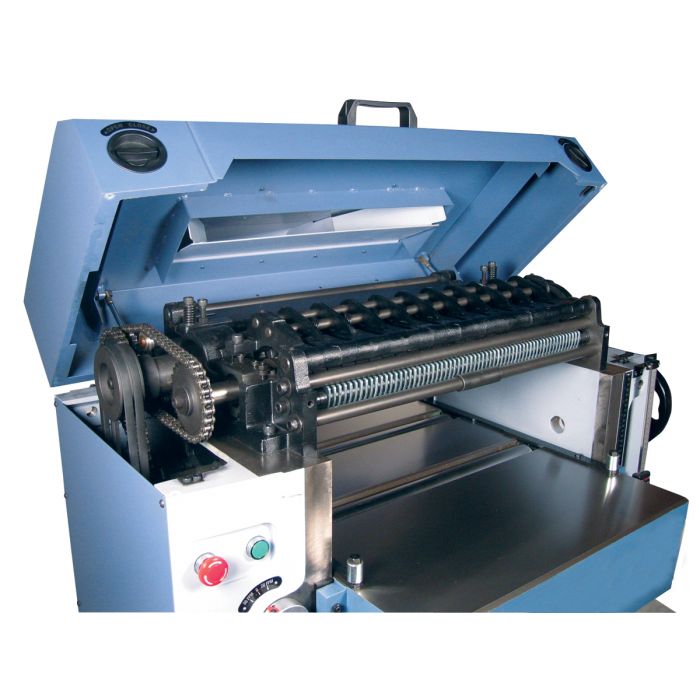

- Segmented infeed roller and sectional chip breaker easily handle rough stock.
- 2-speed gear box provides the perfect feed rate.
- Magnetic controls with emergency off switch for safer operation.

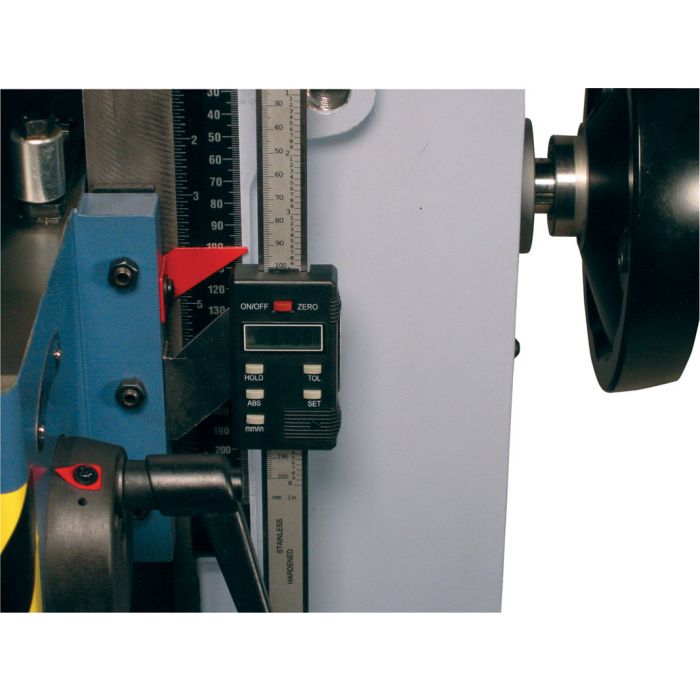

- Digital readout allows precise thickness settings.

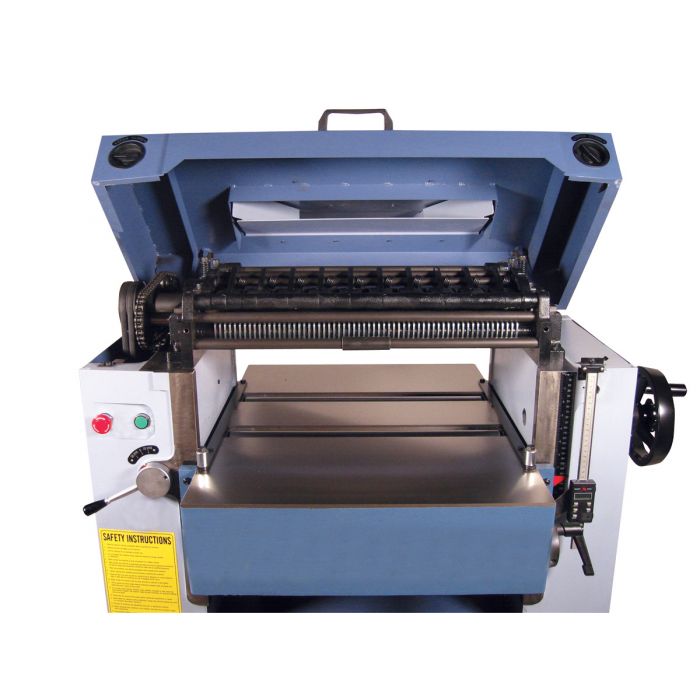

- Hinged access to cutter head and feed rollers for quick set-up.
- Easy access to motor, drive train, and gearbox assist in maintenance and adjustment.
- 5” dust chute easily handles chip removal.

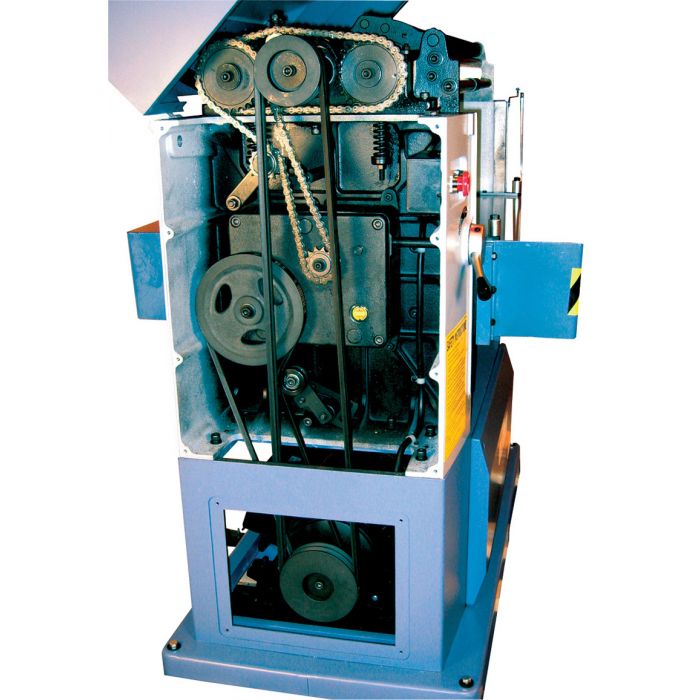

- 3 V-belt drive smoothly transfers power to drive train and cutter head.
- Powerful TEFC motor available in single or three-phase.
-
Specs
tock No. (7.5HP, 1Ph, Byrd)|4455.103.B
Stock No. (10HP, 3Ph, Byrd)|4455.104.B
Maximum Stock Width|22″
Maximum Stock Thickness|9″
Minimum Stock Thickness|1/8″
Minimum Stock Length|10″
Dust Port Diameter|5″
Minimum CFM Required|900 CFM
Infeed Roller Diameter |3″
Outfeed Roller Diameter|3-5/16″
Feed Speeds|20 and 30 FPM
Bed Rollers|2, Adjustable
Table Size|23-3/4” x 32-1/4”
Cutterhead Diameter|3″
Cutterhead Speed|5,000 RPM
Number of Knives (straight)|4
Number of Knives Byrd|110 Inserts
Footprint|44”L x 22”W
Table Support|2-Column
Motor 1Ph|7.5HP, 220V Only (38 Amp)
Motor 3Ph|10HP, 240V/440V*, Prewired 220V (26/13 Amp)
Overall Dimensions|45”W x 32”D x 50”H
Net Weight|1,340 lbs
Gross Weight|1,550 lbs.
