Description

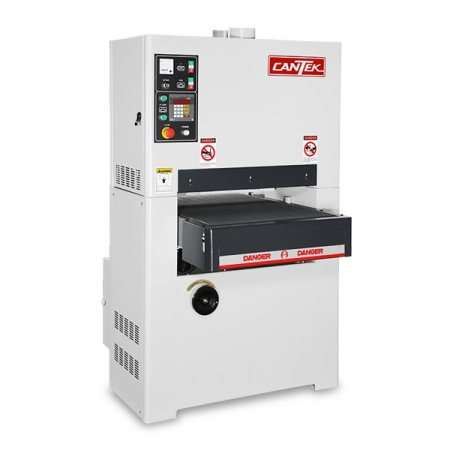

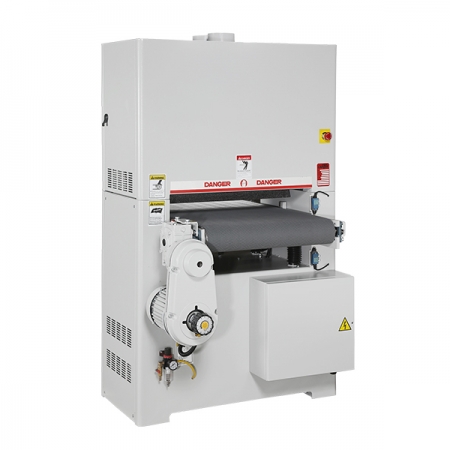

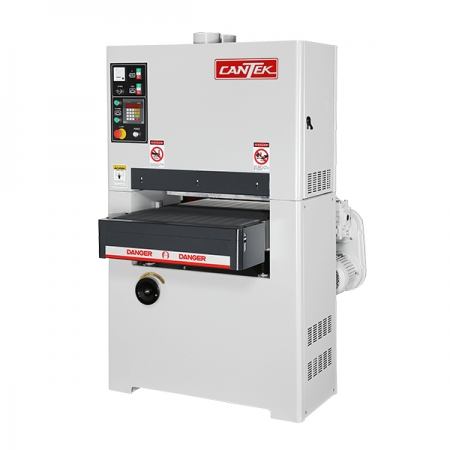

A robust widebelt sander with minimal footprint. The Cantek S251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and versatile frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Key Advantages

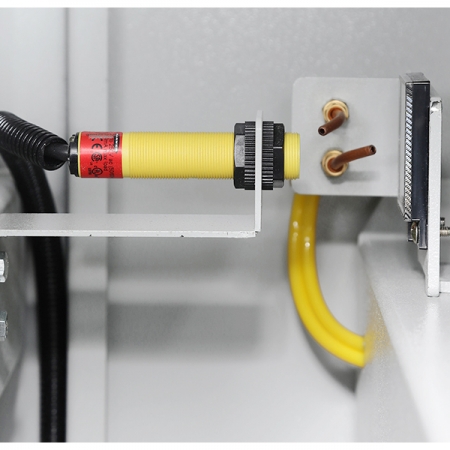

Electronic belt tracking for optimum belt life and sanding results.

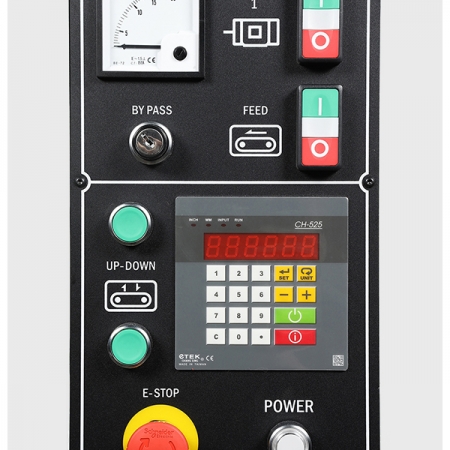

Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.

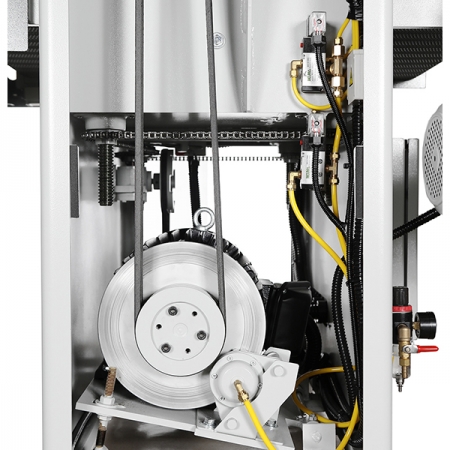

Disc brake on the main motor allows for faster belt changes.

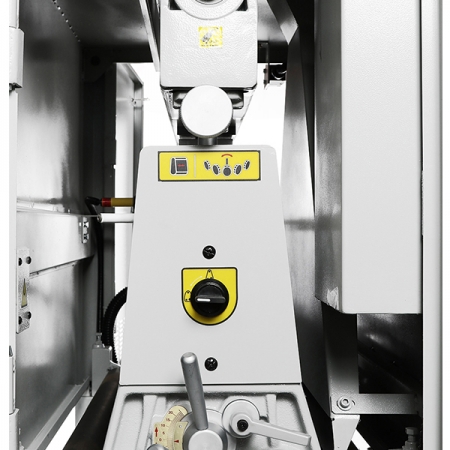

Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
Interlocks are located on all access doors. -
Specs
DESCRIPTION
INCH
METRIC
Abrasive belt size
25” x 60”
635 X 1524 mm
Main motor
10 HP (3 PH or 1 PH)

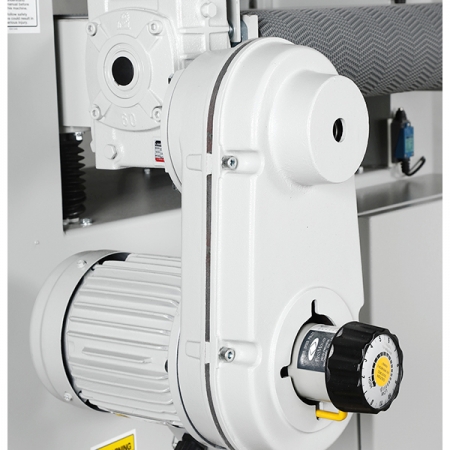

Feed motor
1HP
Table rise/fall motor
0.25 HP
Working width
25″
609 mm
Minimum part length
13″
320 mm
Maximum thickness opening
5.9″
150 mm
Feed speed: variable
15 to 49 FPM
4 to 15 m/min
Pass line height
37″
950 mm
Dust outlet
2 @ 4”
2 @ 101 mm

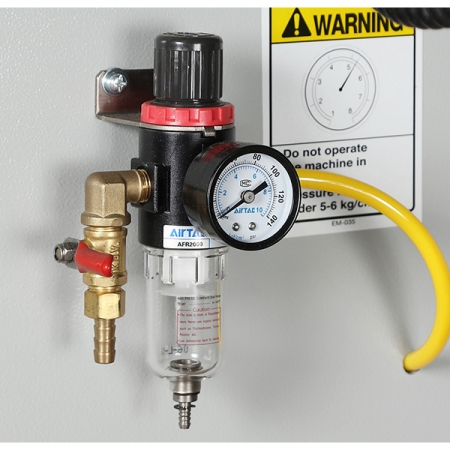

Compressed air pressure
PSI 60
4 Kg/cm2
Compressed air volume
7 CFM
0.2M3/Min
Dust collection requirements
824 CFM
1400 M3/HR
Net weight
1344 lbs
610 kgs
Machine dimensions
50” x 45” x 76”
1270 x 1150 x 1940 mm
Shipping weight
1565 lbs
710 kgs
Shipping dimensions
52” x 45” x 76”
1330 x 1150 x 1940 mm
Electrical requirements
230/3/60 = 34 amps
