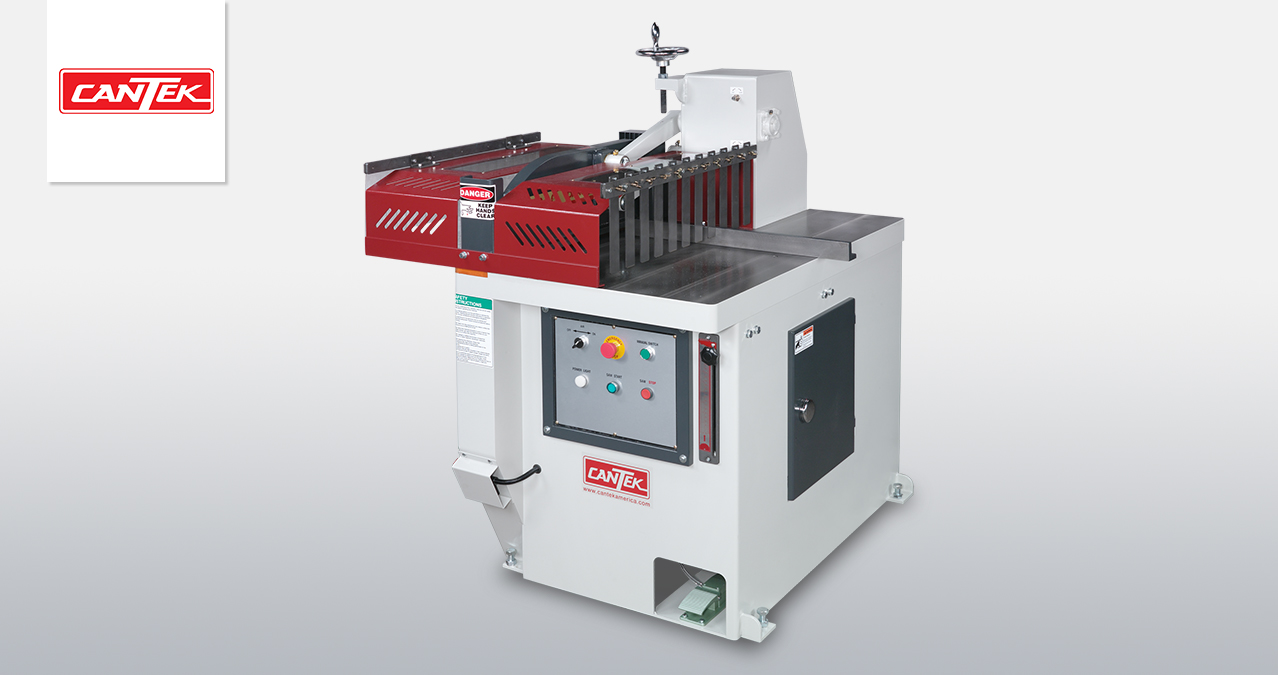

PCS24 | Cantek | Cutoff Saws

  • Power:
    230/460V 3 PH 15 HP 42/21AMPS
  • Description

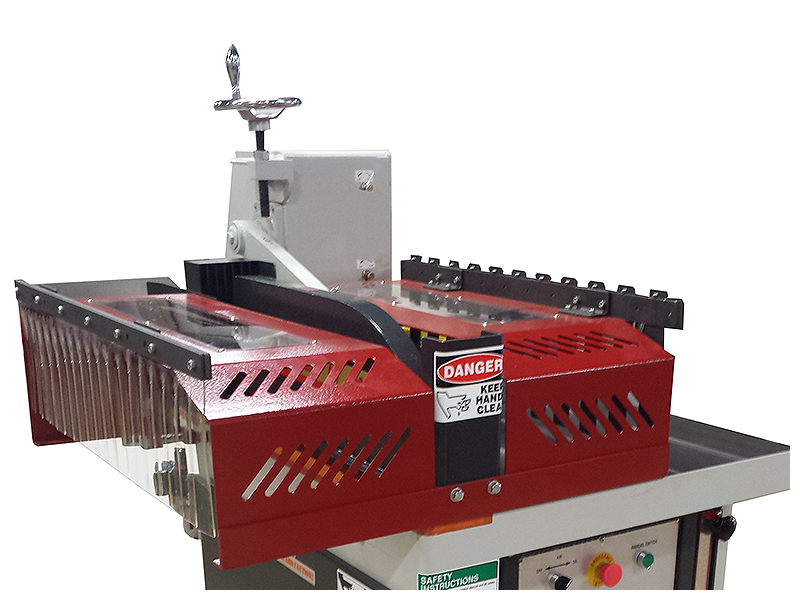

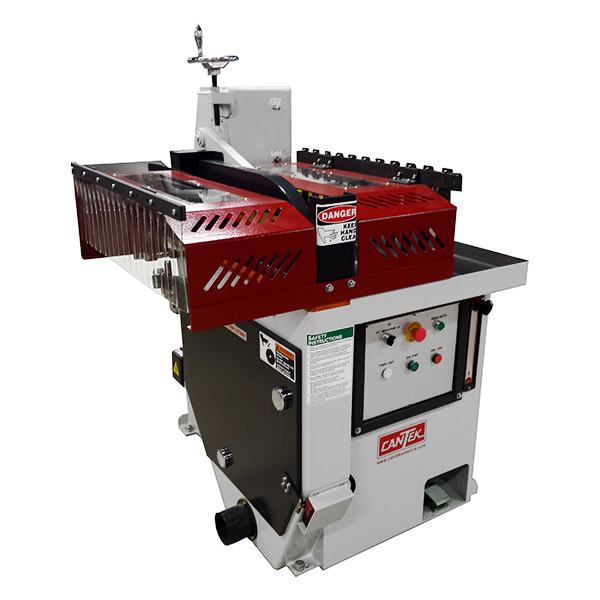

    The Cantek PCS24 24” pneumatic cut-off saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 15HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.

  • Specs

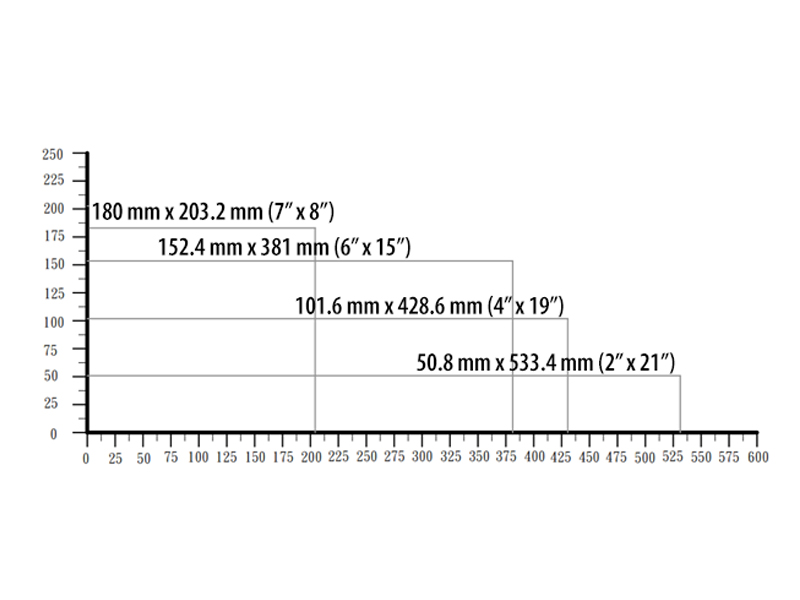

    Cutting capacity (thickness x width)|2″x21″, 4″x19″, 6″x15″, 7″x8″

    Cycle speed|40 strokes/min

    Cycle operation|Air / mechanical

    Saw blade size|24″ max. (20″ min.)

    Saw arbor diameter|1″

    Saw blade speed|2400 RPM

    Dust exhaust diameter|Ø4″ x 2

    Air consumption|27.5 CFM

    Motor|15 HP

    Table size|45.3″ x 26″

    Net weight|1058 lbs

    Gross weight|1433 lbs

    Machine dimensions (LxWxH)|40.2″ x 45″ x 55″

    Packing dimensions (LxWxH)|53.5″x35.5″x57″

    Electrical requirements|

    460/3/60 = 21 Amps|

    230/3/60 = 42 Amps
