Description
Compact & affordable bandsaw.

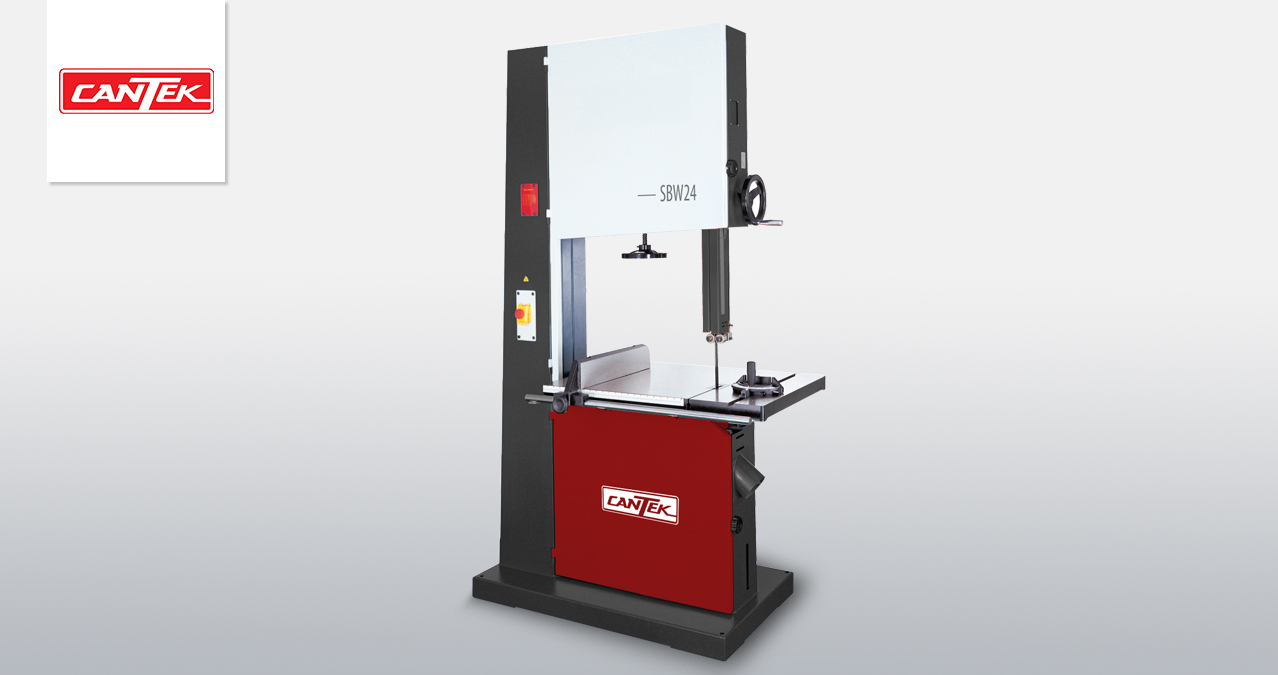

The Cantek SBW24 24″ Bandsaw incorporates a robust design with economical price point. With its industrial cast iron wheels and table assembly it can handle any job. With its powerful 3HP motor and capacity to run from a ¼” to 1 ½” blade it can hand a wide range of cutting requirements. The upper and lower blade guides provide maximum stability no matter the blade you are cutting with. This bandsaw delivers high accuracy for maximum production along with a simple design that assures minimum maintenance.
Why Cantek SBW24 24″ Bandsaw?
- Cast iron saw wheels are machined and dynamically balanced.
- Upper and lower ball bearing blade guide system to ensure the maximum stability.
- Micro-adjustable upper blade guide and safety device.
- Cast iron rip fence.
- Mitre gauge runs in a t-slot on the cast iron table.
- Precise ground cast iron table can be conveniently tilted 45o to the right by user friendly handwheel.
- User friendly quick-release handle for convenient blade changes.
- Heavy duty welded steel machine frame.
- Foot brake for stopping the blade.
- Microswitch on the access doors will shut down power to the machine when opened.
-
Specs
Motor|5HP 230V 3PH
Table Size(LXWXH)|33 1/2″ x 23 5/8″ x 2″
(850 x 600 x 50mm)
Cast Iron Wheel Size|25″ (630 mm)
Cutting Height|16″(400 mm)
Max. Cutting Width (w/o fence)|24-1/2″ (622 mm)
Max. Cutting Width (with fence)|22-1/2″(570 mm)
Saw Blade Length|181″ (4600 mm)
Saw Blade Width|1/4 ~ 1-3/8″ (6 mm – 35 mm)
Saw Blade Speed|1370 M/min (4500 FPM)
Single Speed (820 rpm)
Table Tilting|45°/20°(CE)
Table Height|33″ (830 mm)
Dust Chute|4″ x 2 pcs (100mm x 2 pcs)
Braking System|Foot pedal+Micro switch
(Electronic Braking Switch System)
Driving Belt|A type x 2 Grooves
Cast Iron Fence|1-1/4″(W) x 3-5/8″(H)
(30(W) x 90(H) mm)
Sound Rating|63-70 db
Base Size (LXWXH)|48-3/8″x 23-5/8″x 3-1/4″
(850 x 550 x 80 mm)
Machine Size(LXWXH)|47″x 29-1/2″x 81 “
(1002 x 727 x 1982 mm)
Packing Size|45-1/4″x 29-1/2″x 87″
N.W/G.W.|836/957 lbs
(380/435 kgs)
