Description
Powerful heavy-duty 24″ planer that fits your everyday needs.

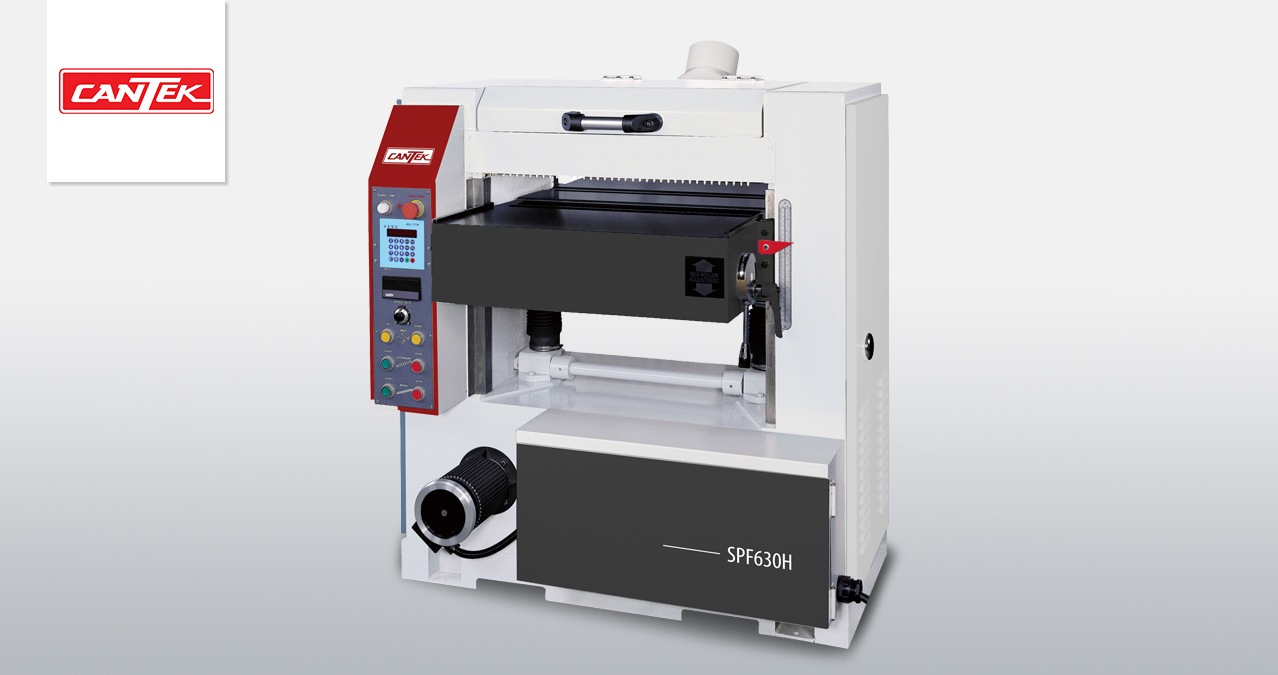

The Cantek SPF630H 24″ Planer has a solid steel helical cutterhead with 4-sided carbide knife inserts that require no adjustments when changing. Setting the table height is quick, accurate, and easy with a digital readout and simple PC controller. The frame is made from heavy cast iron with known vibration damping resulting in a longer bearing life and superior cut quality. The planer’s segmented, serrated infeed roll & segmented pressure shoe ensures material is held firmly during the feeding and planing process. The industry standard 15×15×2.5mm carbide insert knives are easily changed using a torque wrench and do not require any special tools to set the height. The insert knives are in a spiral pattern which produce a shearing action allowing for superior stock remove, resulting in a smooth planed surface, creating less noise, and requiring less power which translates in to less wear and tear on the machine.
Why Cantek SPF630H 24″ Planer?
- Powerful 15HP cutterhead motor.
- Variable feed speed is driven by a DC motor with a speed range 0-82 ft/min.
- Digital position controller for convenient thickness setting and automatic positioning.
- Ruggedly constructed throughout for even the most demanding planing applications.
- Helical cutterhead provides high chip removal rate, superior surface finish and low noise level.
- Precision cutterhead ball bearings.
- Heavy-duty cast-iron table is heat treated and precision ground.
- Powered table elevation for fast and convenient thickness setting is standard.
- Additional emergency stop switch provided at back side of the machine.
- (2) Ø 1-1/2″ jack screws provide solid support of table.
- Corrugated sectional infeed roller has independent movement for running strip stock of varying thicknesses, Improves safety.
- Anti-kickback fingers equipped at the infeed end provide added safety for the operator.
- Adjustable bed rollers for planing of rough or finished lumber or glued panels.
-
Specs
Table area|36″x25″ (915x635mm)
Cutterhead Diameter|3.86″(98mm)
Cutting circle|4″(101mm)
Cutterhead speed|5500 rpm
Spiral row numbers|6
Knife insert size|15 x 15 x 2.5mm
Feed rollers|3″ (75mm)
Table rollers|2-1/2″ (65mm)
Range of feed speed|0-75 FPM
Stock thickness range|1/4″-8″(6-203mm)
Maximum depth of cut|5/16″(8mm)
Maximum width of stock|24″ (610mm)
Cutterhead motor|15 HP
Feed drive motor|1 HP
Net weight|900 kgs(1985lbs)
Gross weight|1000 kgs(2205lbs)
Packing dimensions|48″ x 45″ x 54″
(1220x1143x1372mm) -
