Description

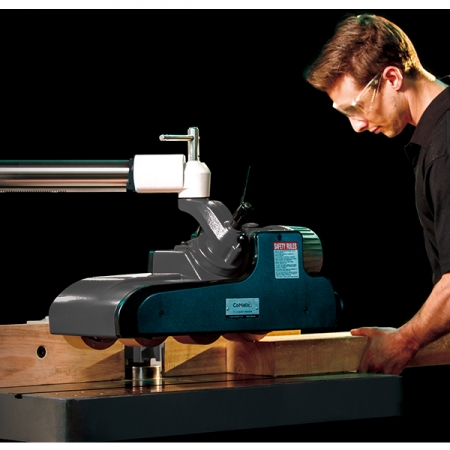

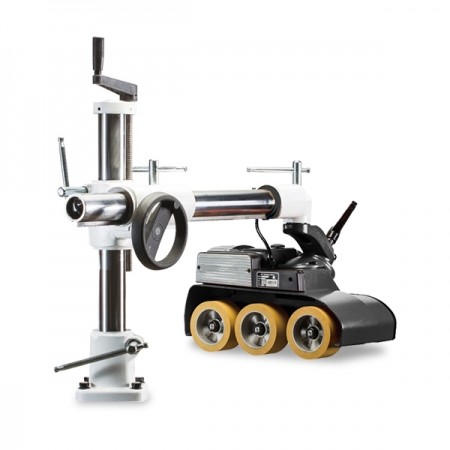

Consistent, safe, and powerful power feeder with the right speed for your job. The Cantek DC30 3-Roll Variable Speed Power Feeder is a safe and powerful feeding unit for shapers, table saws, and more. The rubber feed wheels grip the workpiece firmly and feed it at a constant speed to produce flawlessly finished pieces. The DC brushless servo motor with electronic variable speed adjustment allows the operator full control for setting the optimum feed speed according to the specific job. The universal stand allows for quick positional adjustment from a horizontal to vertical positioning and everything in between.
Key Advantages

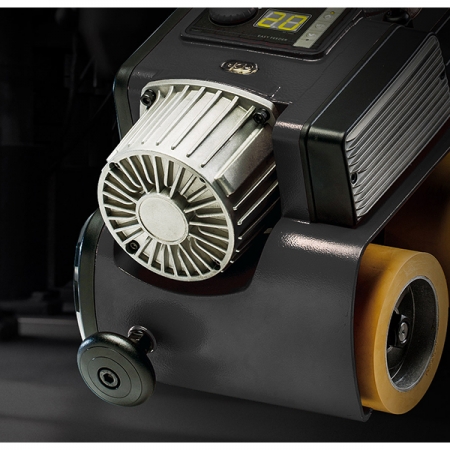

2/3 HP DC Brushless Servo Motor with electronic speed display

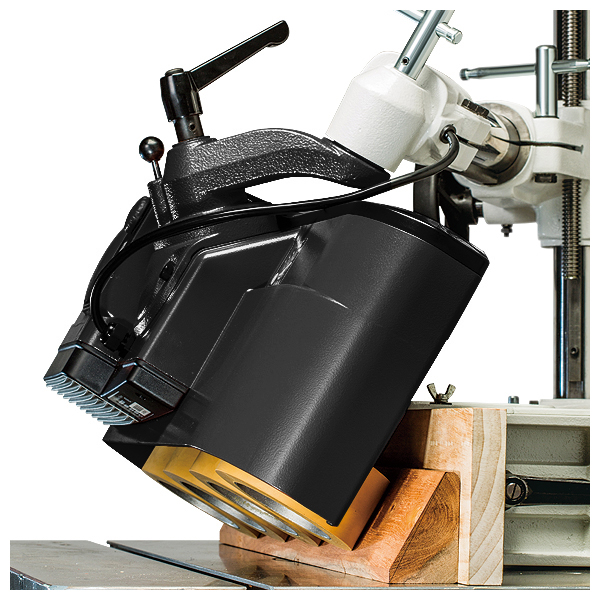

SG13 heavy duty universal stand for fast setup
(3) rubber feed rollers
Variable speed 2-22 M/min (7-72 FPM)
Forward/reverse feed

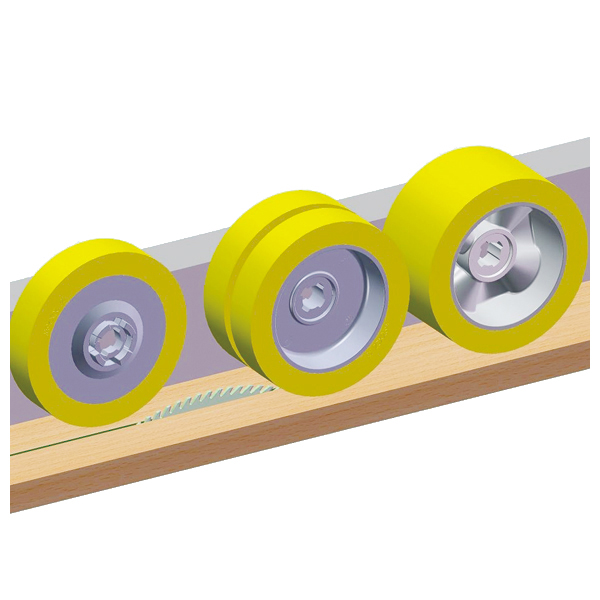

Optional Dual Rollers for saw or cutter clearance -
Specs
INCH
METRIC
Roller Size
4.72″ x 2.36″ (Standard)
4.72″ x 1″ (Optional)
Φ120 x 60 mm (Standard)
Φ120 x 25 mm (Optional)
Rollers
3
3
Feeding Speed
7-72 FPM
2-22 m/min
Horsepower
2/3 HP
500W
Packing Size: Body
23″ × 12 ¾” × 12″
588 x 326 x 306 mm
Packing Size: Stand
30-3/8″ x 12-5/8″ x 11 ½”
770 x 320 x 290 mm
Machine Weight
51 + 66 lbs = 117 lbs total
23 + 30 kgs = 53 kgs total
Shipping Weight
55 + 72 lbs = 127 lbs total
25 + 32 kgs = 57 kgs total -
