Description

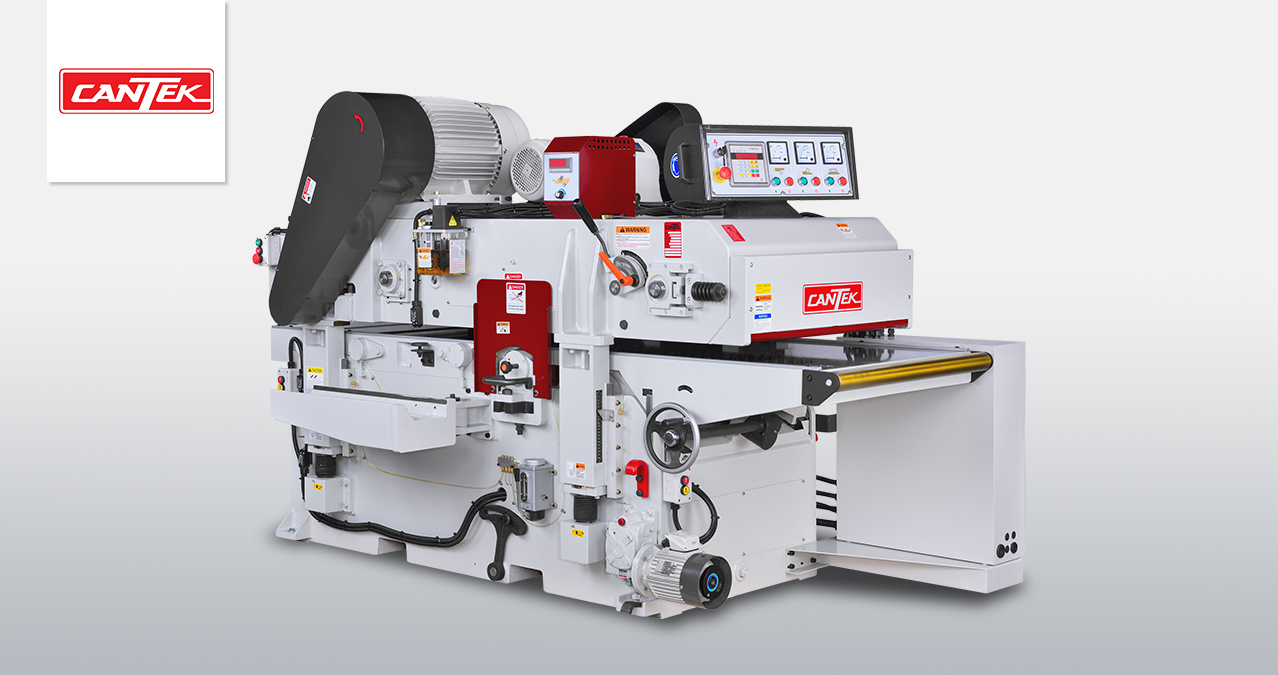

Plane your material efficiently in a single pass. The Cantek GT760ARD 30″ double surface planer has a robust cast-iron body for industrial planing day in and day out. The spiral insert knife cutterheads produce a smooth planed finish with maximum stock removal. The material is passed over the bottom head with a spring-loaded pin feed system allowing it to act like a jointer to flatten the board prior to being planed to an accurate thickness with the top head.
-
Specs
Max. working width 30″
Max. working thickness 8″ (16″, 20″ optional)
Min. working thickness 0.4″
Min. workpiece length 12.2″
Bottom head motor 20 HP
Top planing head motor 25 HP
Feed motor 5 HP
Table elevation motor 1 HP
Cutterhead diameter 4″
Knife dimensions 30mmx12mmx1.5mm (114 pcs per head)
Cutterhead speed 5000 RPM
Feed speed (variable) 26-79 FPM
Dust ports (2) 6″
Machine dimensions (LxWxH) 107″ x 55″ x 75.6″
Machine weight 7040 lbs
Packaging dimensions 110” x 55″ x 77”
Shipping weight 7700 lbs
Electrical requirement 460/3/60 = 71 amps
575/3/60 = 57 amps -
