Description
Robust planer without all the fuss.

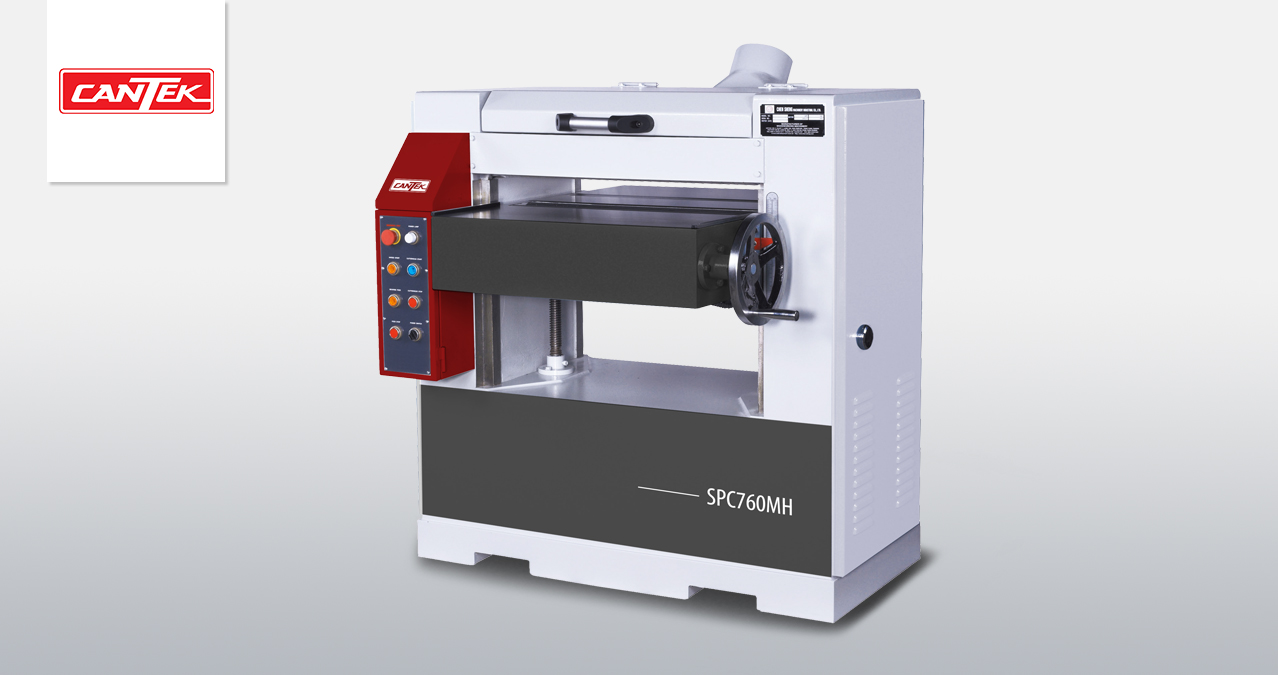

The Cantek SPC760MH 30″ Planer is designed to be heavy duty & robust but at an economical price point. The frame is built from industrial cast-iron which is designed to greatly reduce vibration resulting in a superior planed surface and long machine life. The spiral insert knife cutterhead with 4-sided insert knives produce an extremely smooth finish with greatly reduced noise. The industry standard 4-sided inserts allow for superior chip removal with greatly reduced tear out given their shearing action. The table is moved up and down manually and thickness is set using a simple scale. The cutterhead is driven by a powerful 15HP motor or it can be purchased without motors.
Why Cantek SPC760MH 30″ Planer?
- Powerful 15HP cutterhead motor.
- Helical spiral cutterhead provides high chip removal rate, superior surface finish and low noise level.
- Heavy duty cast iron table is heat treated and precision ground.
- Manual table elevation by handwheel.
- (2) 1 ½” diameter jack screws provide solid support of the table.
- (2) corrugated sectional infeed rollers have independent movement for running strip stock of varying thickness.
- Anti-kickback fingers equipped at the infeed end provide added safety for the operator.
- Adjustable bed rollers for planing of rough or finished lumber or glued panels.
- Massive cast iron machine frame for maximum stability.
- Equipped with simple top guard which allows for easy access to the cutterhead for knife changing.
-
Specs
Table area|38″x31″ (965x787mm)
Cutterhead Diameter|3.86″(98mm)
Cutting circle|4″(101mm)
Cutterhead speed|5500 rpm
Spiral row numbers|6
Knife insert size|15 x 15 x 2.5mm
Feed rollers|3″ (75mm)
Table rollers|2-1/2″ (65mm)
Range of feed speed|18/27/36 ft/min
Stock thickness range|1/4″-8″(6-203mm)
Maximum depth of cut|5/16″(8mm)
Maximum width of stock|30″ (760mm)
Cutterhead motor|15 HP
Feed drive motor|1 HP
Net weight|1250 kgs(2756lbs)
Gross weight|1350 kgs(2977lbs)
Packing dimensions|56″ x 46″ x 57″
(1422x1168x1448mm) -
