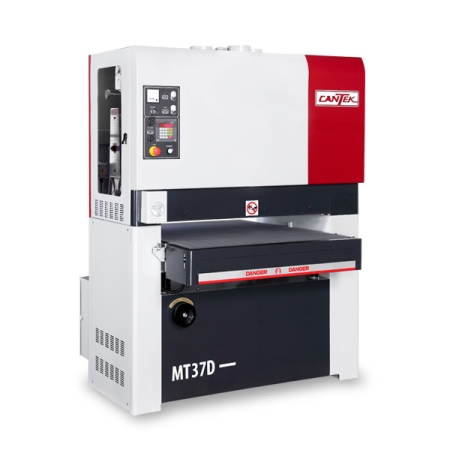

MT37D | Cantek | Wide Belt Sanders

  • Description

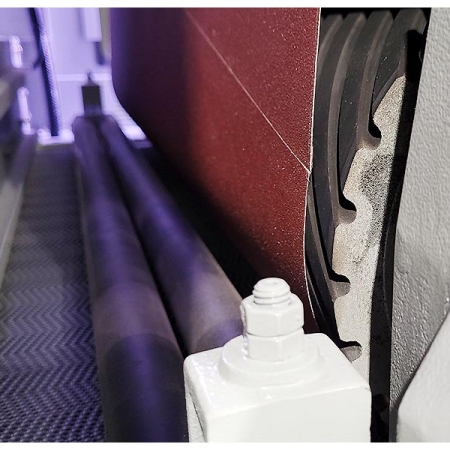

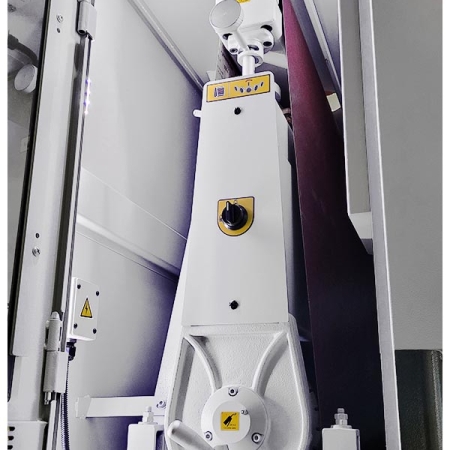

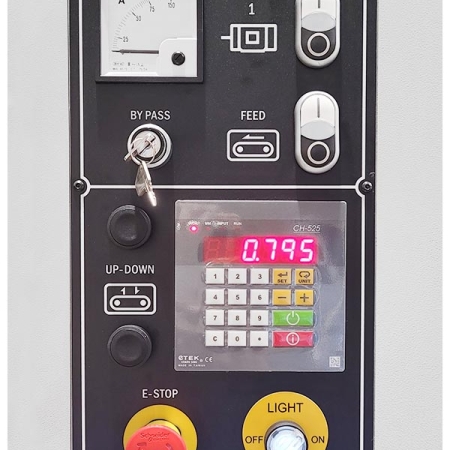

    Compact Metal Wide Belt Sander for increased efficiency during oxidation and slag removal. The Cantek MT37D 36” Single Head Metal Widebelt Sander is designed to be easy to use and durable for the removal of oxidation, deburring, and slag. It comes equipped with a single rubber contact drum with efficient material removal capabilities. The 7” contact drum is equipped with pneumatic belt tensioning for fast belt changeovers. The precision digital thickness control allows the operator to accurately enter the desired thickness which moves the table precisely in to position for repeatable results. The industrial welded steel frame and powerful features all come in a compact package making ideal for smaller to midsized shops.
    Key Advantages

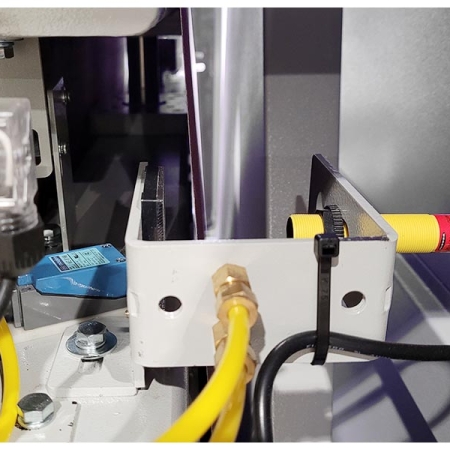

    Electronic belt tracking for optimum belt life and sanding results.
    Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.
    Disc brake on the main motor allows for faster belt changes.

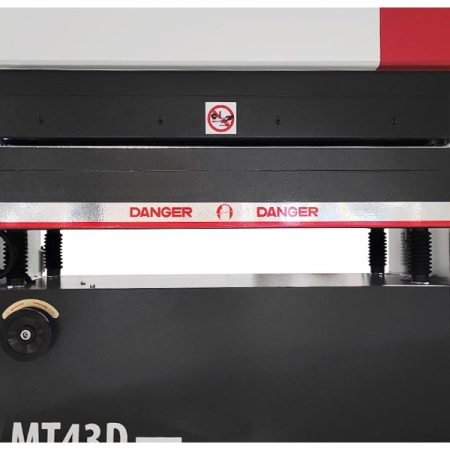

    Double infeed and outfeed pressure rolls for superior part hold down.
    Table raising jackscrews.
    Material over-height limit switch.
    Interlocks are located on all access doors.

  • Specs

    INCH
    METRIC
    Abrasive belt size
    37” x 75”
    939 x 1905 mm

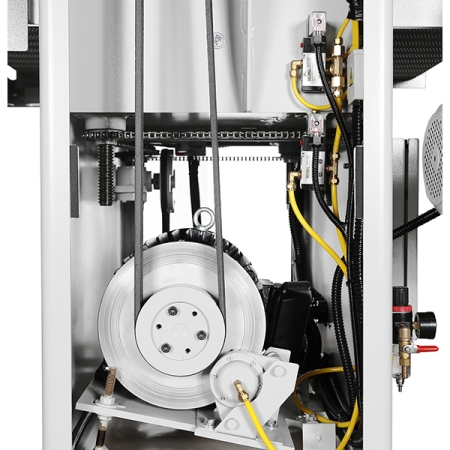

    Main motor, shared
    20 HP

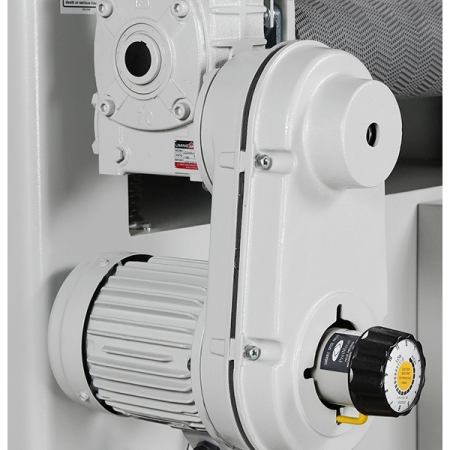

    Feed motor
    1HP
    Table rise/fall motor
    ½ HP
    Maximum width stock
    36″
    910 mm
    Minimum part length
    13″
    330 mm
    Maximum thickness opening
    5″
    127 mm
    Feed speed: variable
    13 to 52 FPM
    4 to 16 m/min
    Passline height
    33″- 38″
    838 – 965 mm
    Infeed table
    11 ½”
    292 mm
    Dust outlet
    1 @ 5”
    1 @ 127 mm
    Compressed air usage
    2 CFM @ 90 PSI
    2 CFM @ 90 PSI
    Shipping weight
    2530 lbs
    1150 kgs
    Shipping dimensions
    52” X 57” X 86”
    1320 x 1447 x 2184 mm
    Electrical requirements
    230/3/60
