Description

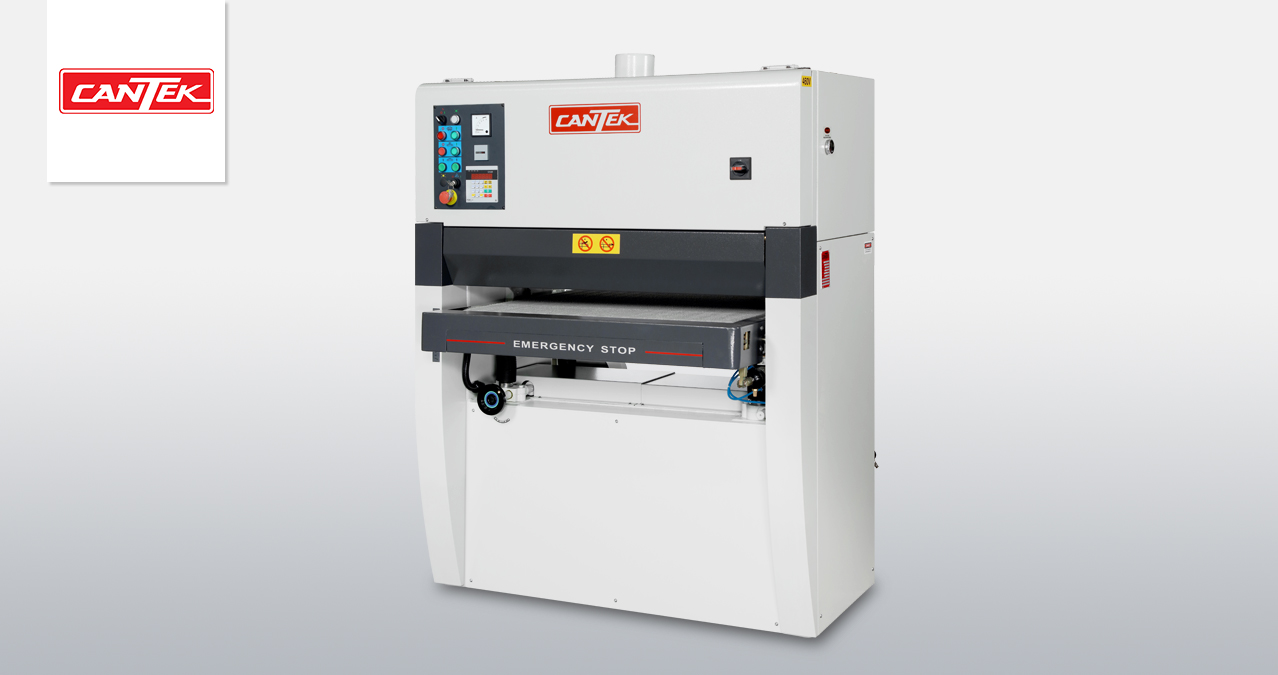

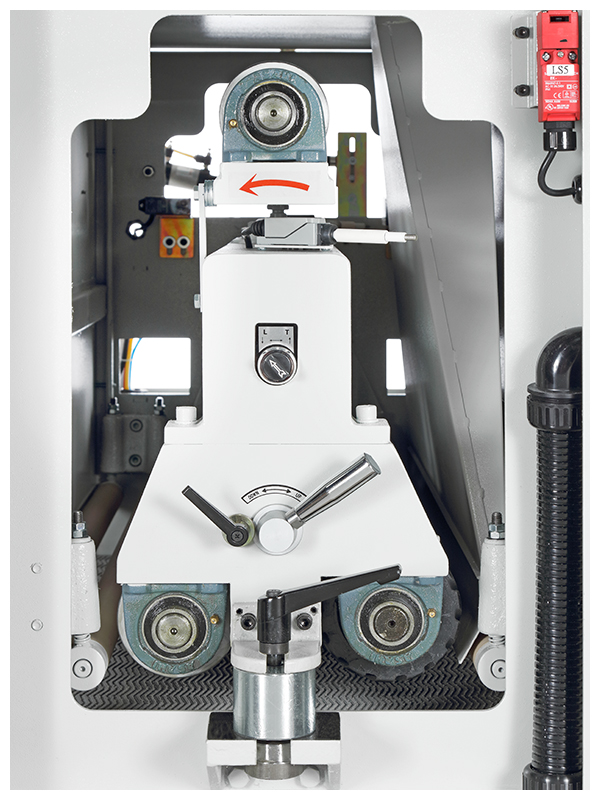

Dependable, consistent sanding results with a robust design that is built to last.The Cantek C371 36″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensures optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

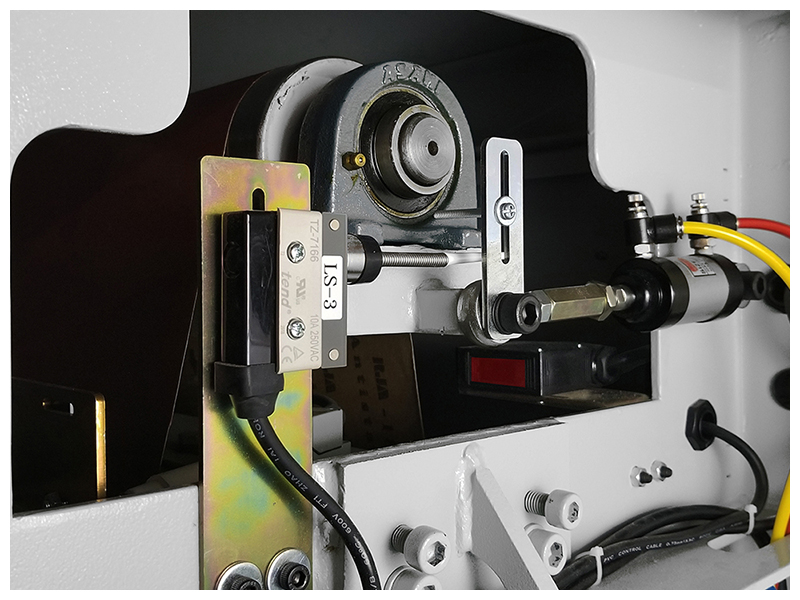

- Electronic belt tracking for optimum belt life and sanding results

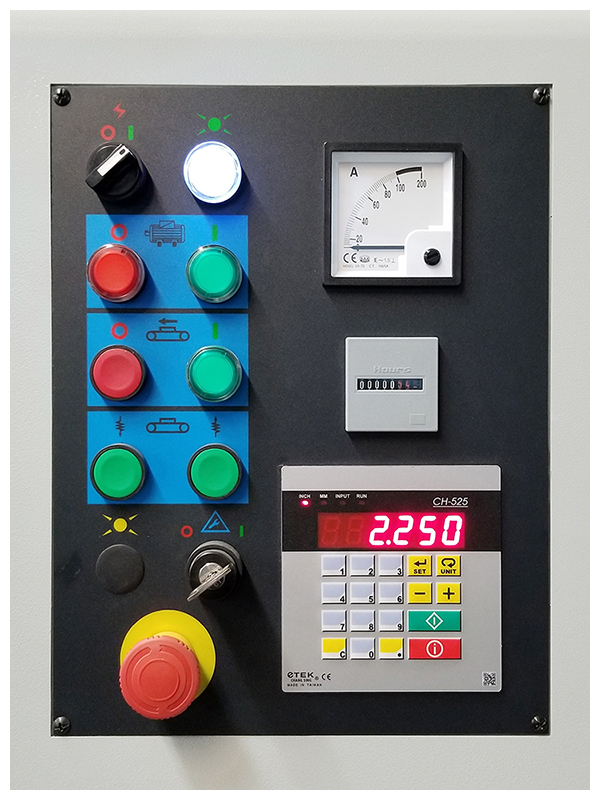

- Ammeter for load monitoring to ensure the proper amount of material is being removed according to the selected grit.

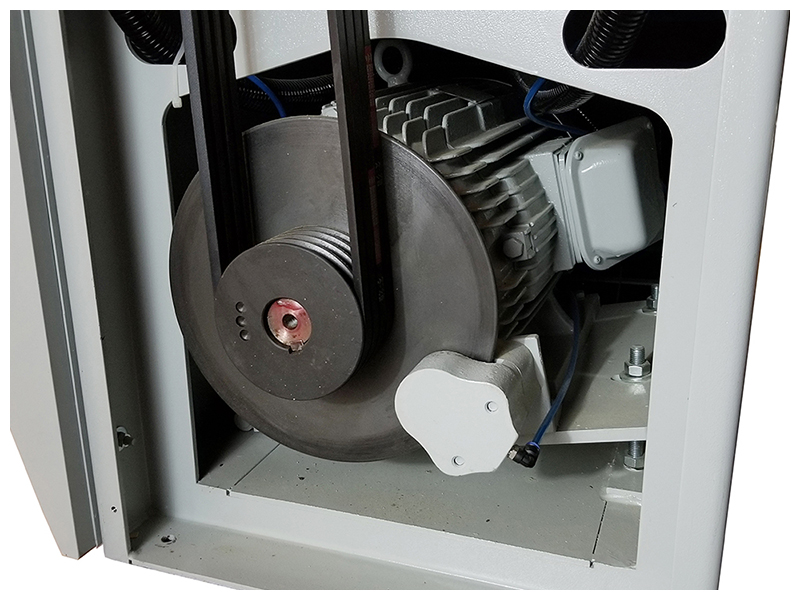

- Disc brake on main motor allows for faster belt changes
- Pneumatic belt tensioning with quick release outboard support to facilitate fast belt changes.
- Double infeed and outfeed pressure rolls for superior part hold down
- Four table raising jack screws
- Material over-height limit switch
- Hour meter records the actual running time of the machine which can be used to provide timely maintenance for the machine

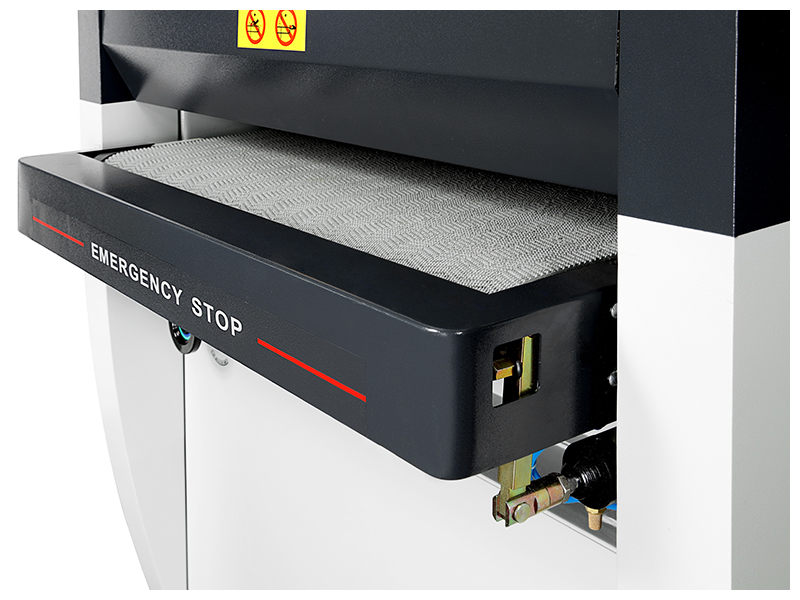

- Interlocks located on all access doors.
-
Specs
Abrasive belt size 37” x 60”
Main motor 20 HP
Feed motor 2HP
Table rise/fall motor ½ HP
Maximum width stock 36”
Minimum part length 13”
Maximum thickness opening 5”
Feed speed: variable 13 to 52 FPM
Passline height 33”- 38”
Infeed table 11 ½”
Dust outlet 1 @ 5”
Compressed air usage 2 CFM @ 90 PSI
New weight 1980 lbs
Machine dimensions 64” x 53” x 73″
Shipping weight 2530 lbs
Shipping dimensions 67” x 55” x 78” -
