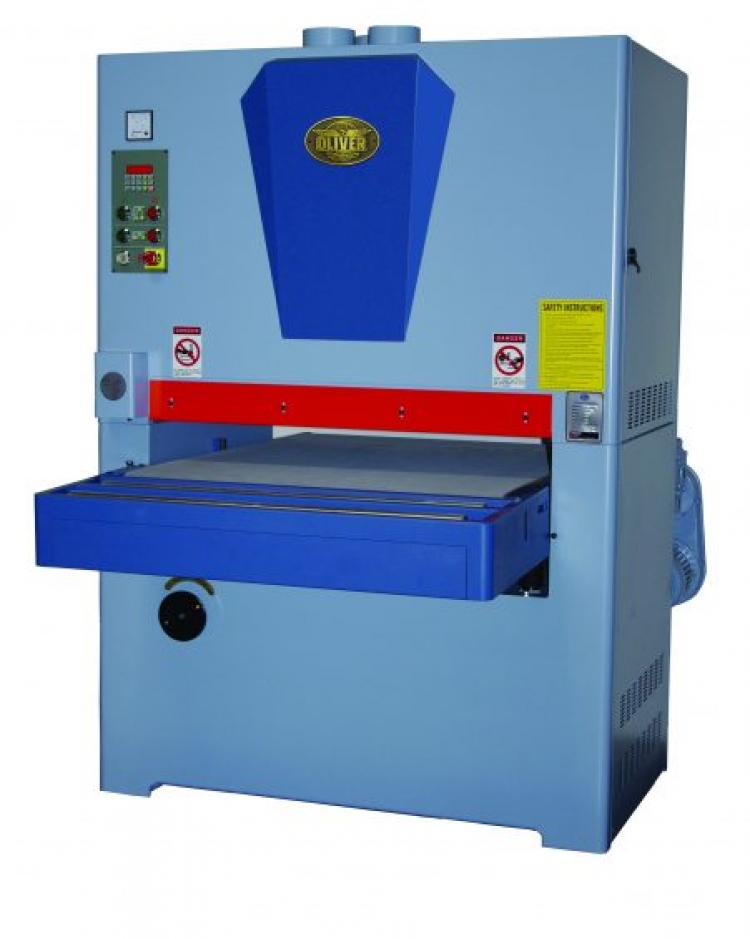

5385 | Oliver | Wide Belt Sanders

  • Power:
    220/440v 3ph 21 1/4hp 50/25amps
  • Description

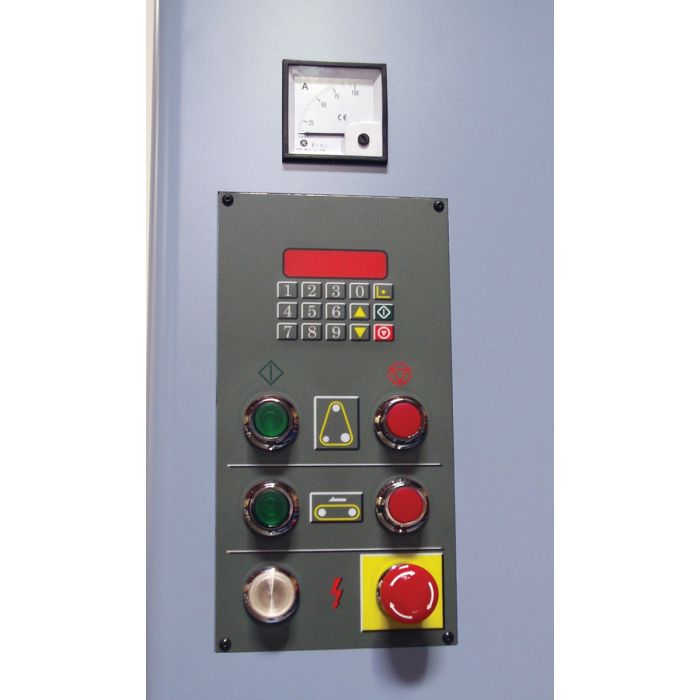

    •75” belts give you longer life and less loading.                                                                                                                                                                                                         •Central control panel feature digital control for accurate stock height and removal.
    •Heavy precision ground table gives a solid working surface.
    •Power table height adjustment provides for a quick set-up.

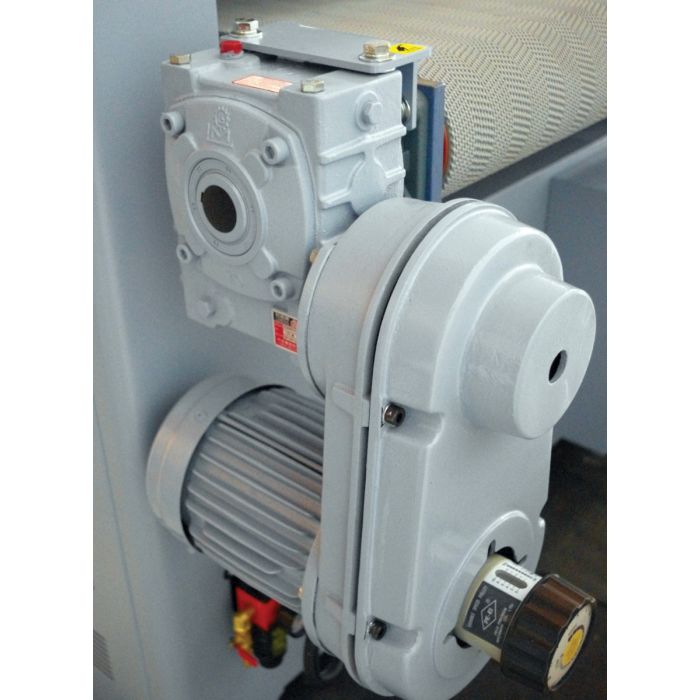

    •Variable speed feed motor allows precise adjustment for optimum results.
    •Four post lift design assures accurate consistent results.

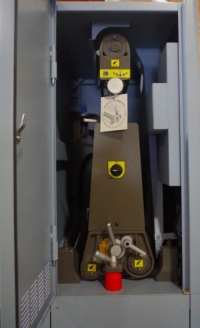

    •Oscillating belt is controlled by an air sensor to prevent sanding lines.
    •Platens are fully adjustable and can be removed.
    •Multiple dust ports for efficient dust management.
    •Independent motors run the sanding belt, feed conveyor, and table elevation for maximum power to each operation. •Optional 440/460 volt available special order only. Additional cost/parts may apply.

  • Specs

    Stock No. (20HP, 3Ph only)|5385.002

    Maximum Stock Width|37″

    Maximum Stock Thickness|5″

    Minimum Stock Thickness|1/8″

    Air Requirements|80 PSI

    Exhaust Value Required|1,600 CFM

    Dust Port Diameter|5″ (x3)

    Abrasive Belt Dimensions|37”W x 75”L

    Main Motor|20HP, 3Ph, 220/440V* Prewired 220V (50/25 Amp)

    Conveyor Motor|1HP, 3Ph 220/440V Prewired 220V

    Table Raising Motor|1/4HP

    Overall Dimensions|53”L x 58”W x 85”H

    Net Weight|2,090 lbs.

    Gross Weight|2,425 lbs
  • Download
