Description

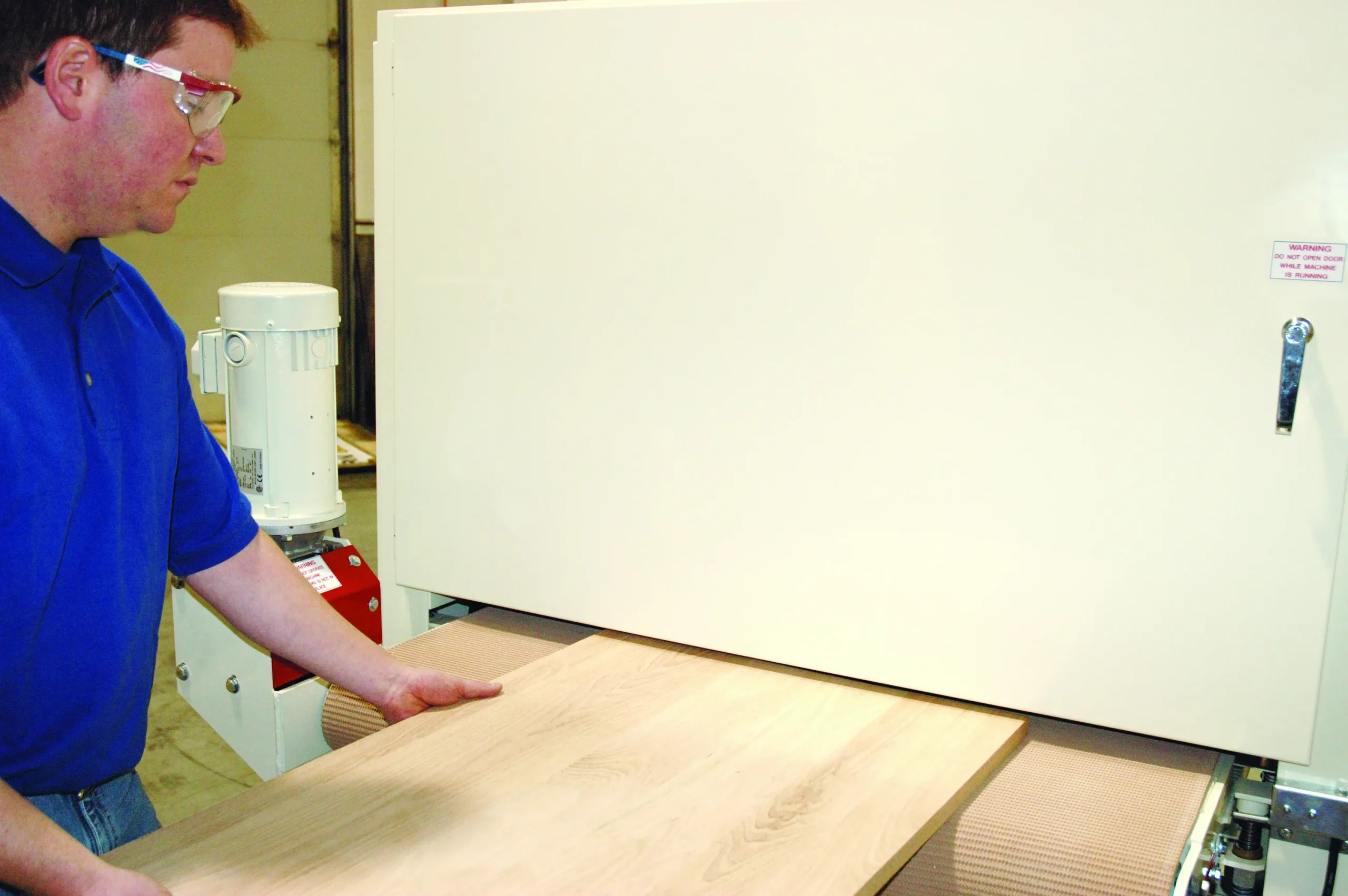

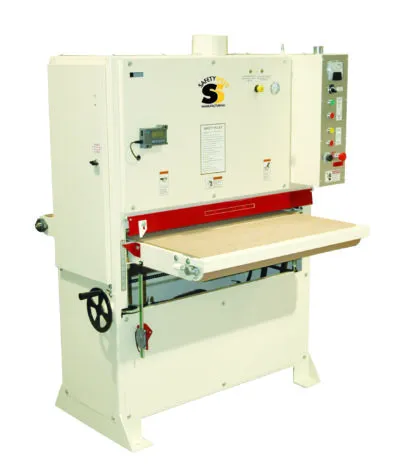

Safety Speed’s American Made 3760 Wide Belt Sander will improve your finishing time, decrease your hand sanding and increase your productivity. Available with either a 10 horsepower, single phase or a 15 horsepower, three phase motor these American made wide belt sanders are workhorses that will likely outlive you. The 37X60 Wide Belt Sander is built to last, including the following as standard equipment on this machine.
Standard Equipment:
*Photo electric belt tracking.
*2 1/2″ removable platen.
*2 height adjustment indicators.
*5 emergency stops.
*2 rubber-covered pinch rollers 1 1/2″ OD.
*Rubber-covered contact roller 4 1/4″ OD with 13/8″ drive bearing.
*2 machined idler rollers 2 3/16″ OD with 3/4″ bearings.
*Conveyor table set on four 3/4″ acme-threaded jackscrews
*Pneumatic belt tensioning.
*6″ internal dust chute.
*3/4 Hp conveyor motor -
Specs
Weight|1362 lbs
Dimensions|60 × 60 × 71 in
Max. Working Length|Unlimited
Min. Working Length|12″/305mm
Main Motor Options |10 Hp, Single Phase (1~), 220 Volt, 15 Hp, 3 Phase (3~) 208 Volt / 230 Volt
Max. Working Width|36″/915mm
Max. Working Thickness|7 1/4″/184mm
Min. Working Thickness|1/8″/3mm
Vacuum Requirement|1000 CFM
Conveyor Speed|0-18 FPM
Durometer of Contact Roller|60
Sanding Belt Size|37″ x 60″
Sanding Belt Width|37″
Sanding Belt Length|60″ -
