Description

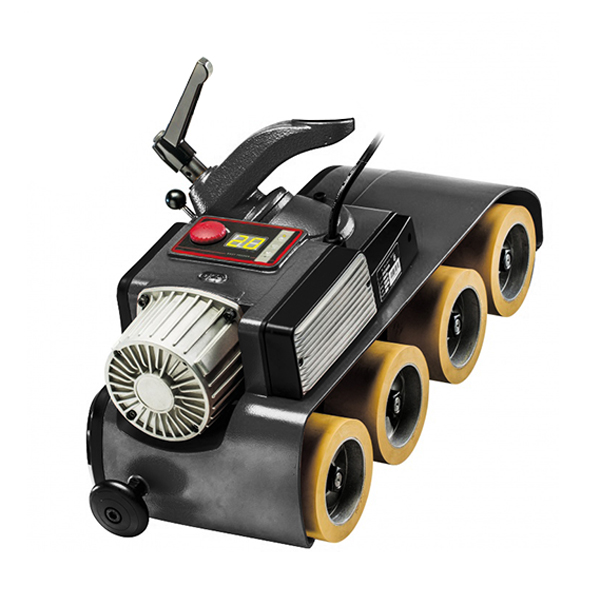

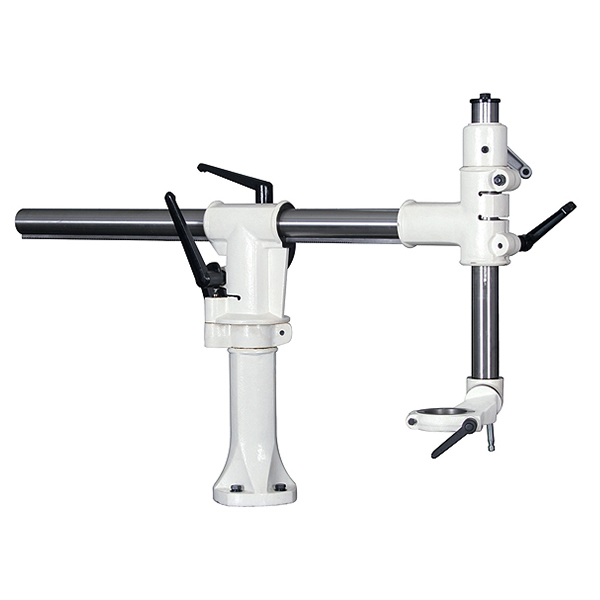

Consistent, safe, and powerful power feeder with the right speed for your job. The Cantek DS400 4-Roll Variable Speed Power Feeder with SMART Stand is safe on consistent feeding unit for shaper, table saws, and more. The rubber feed wheels grip the workpiece firmly and feed it at a constant speed to produce flawlessly finished pieces. The DC brushless servo motor with electronic variable speed adjustment allows the operator full control for setting the optimum feed speed according to the specific job, The DC400 includes the SS03 Heavy Duty Smart Stand which features an extra-long support column and extension arm which allows for use of this mount and stand on larger woodworking machinery. The horizontal rotation also has a clutch and memory-lock, making quick cutter blade switches a safer and quicker task.
Key Advantages

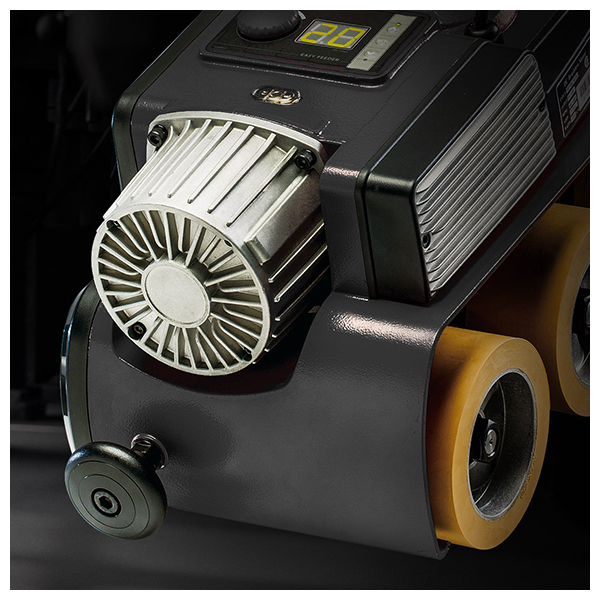

2/3 HP DC Brushless Servo Motor with electronic speed display

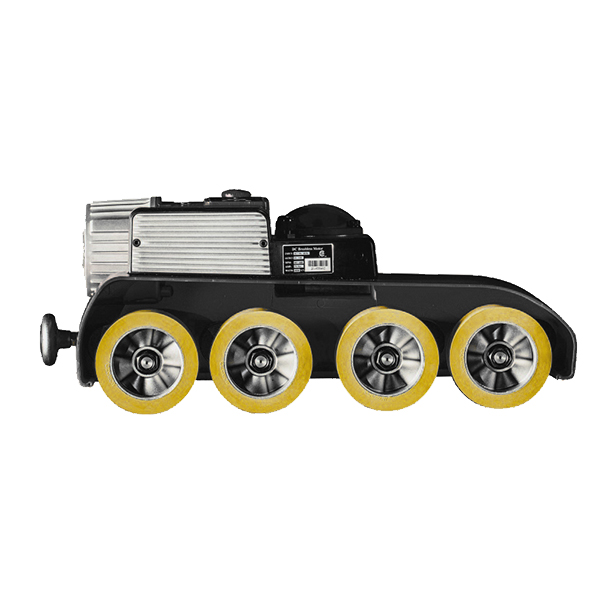

(4) rubber feed rollers
Variable speed 2-22 M/min (7-72 FPM)
Forward/reverse feed

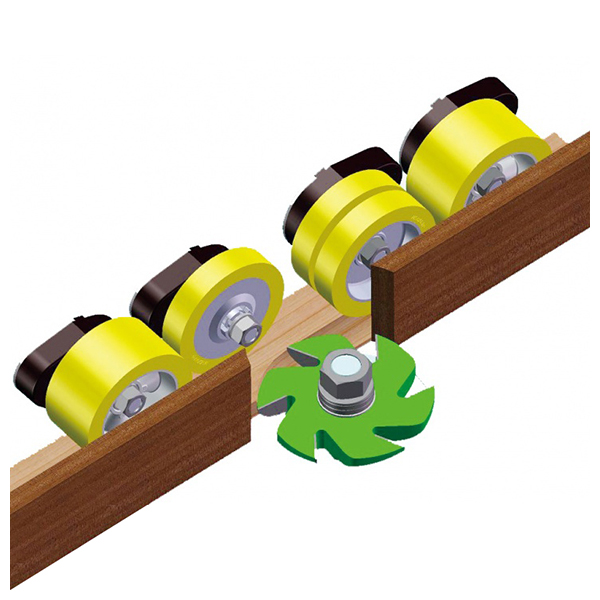

Optional Dual Rollers for saw or cutter clearance -
Specs
Horsepower / Rotation
2/3 HP (500 Watt),1 or 3PH; Forward/Reverse
Range of Speeds (50Hz) (60Hz)
2-22 M/Min (7-72 FPM)
Rollers
Φ120 x 25 mm x 8 rolls (split)
Roller Suspension
18mm (3/4″)
Net Weight
23 + 41 + 10 Kg (51 + 91 + 22 Lb)
Gross Weight
25 + 43 + 11 Kg (55 + 95 + 24 Lb)
Carton for Body
686 × 326 × 316 mm (27″ × 12-3/4″ × 12-3/8″)
Carton for Stand
770 x 320 x 290 mm (30-3/8″ x 12-5/8″ x 11-1/2″)
Carton for Overarm
1080 x 60 x 60 mm (42-1/8″ x 2-3/8″ x 2-3/8″) -
