Description

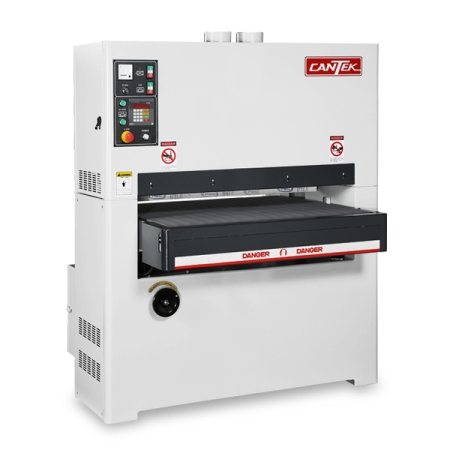

Dependable, consistent sanding results at an affordable price. The Cantek S431 43″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and best of class design ensures optimum sanding results. Equipped with motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.
Key Advantages

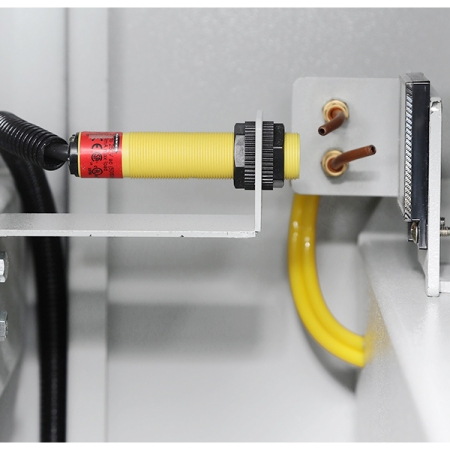

Electronic belt tracking for optimum belt life and sanding results.

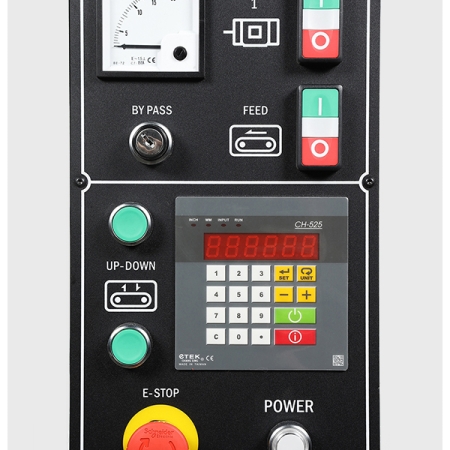

Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.

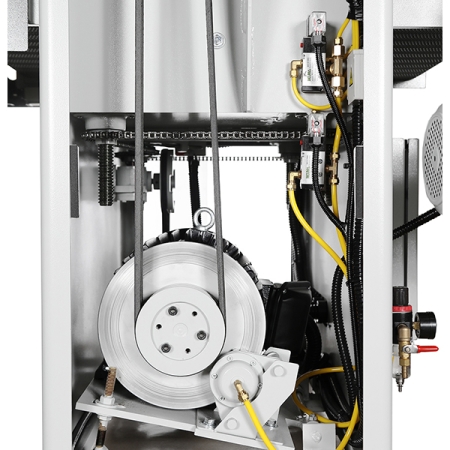

Disc brake on the main motor allows for faster belt changes.
Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes.

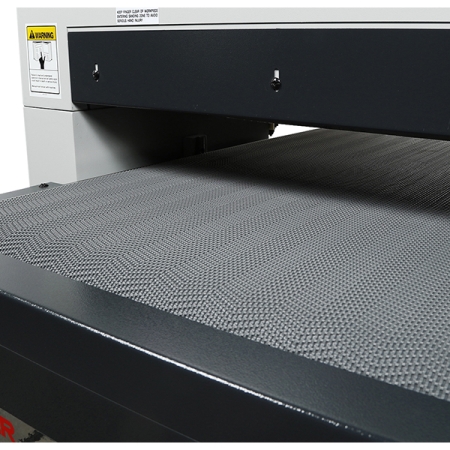

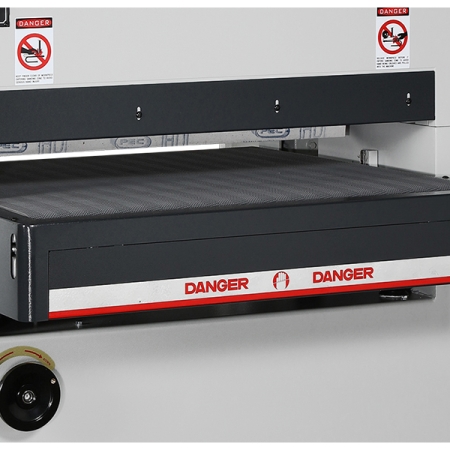

Table raising jackscrews.

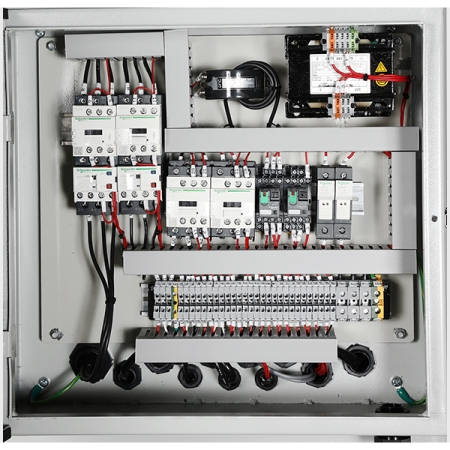

Interlocks are located on all access doors. -
Specs
INCH
METRIC
Abrasive belt size
43” x 60”
1100 x 1524 mm
Main motor
20 HP
Feed motor
2 HP
Table rise/fall motor
0.25 HP
Working width
43″
1066 mm
Minimum part length
12.5″
320 mm
Maximum thickness opening
5.9″
150 mm

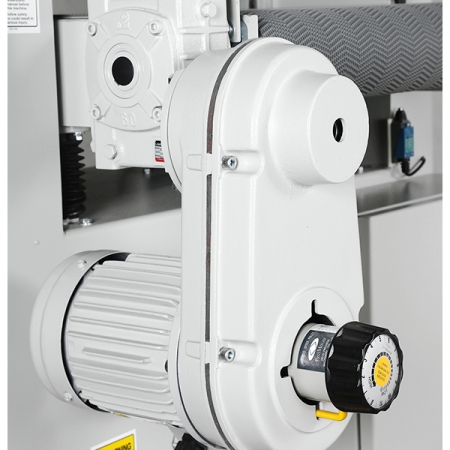

Feed speed: variable
15 to 60 FPM
4 to 18 m/min
Dust outlet
4 @ 5”
4 @ 125 mm
Compressed air pressure
PSI 60
3 Kg/cm2
Compressed air volume
7 CFM
0.2M3/Min
Dust collection requirements
2118 CFM
3600 M3/HR
Net weight
2,288 lbs
1,310 kgs
Machine dimensions
60” X 50” X 64”
1525 x 1270 x 1630 mm
Shipping weight
3,328 lbs
1,510 kgs
Shipping dimensions
52” X 64” X 76”
1330 x 1640 x 1940 mm
