Description

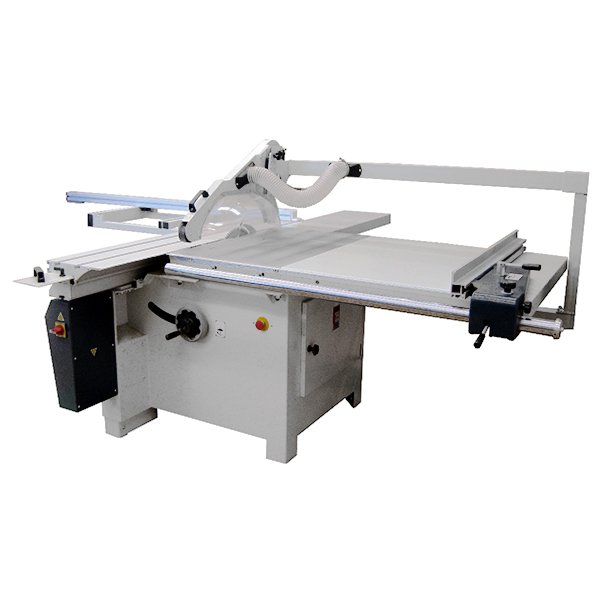

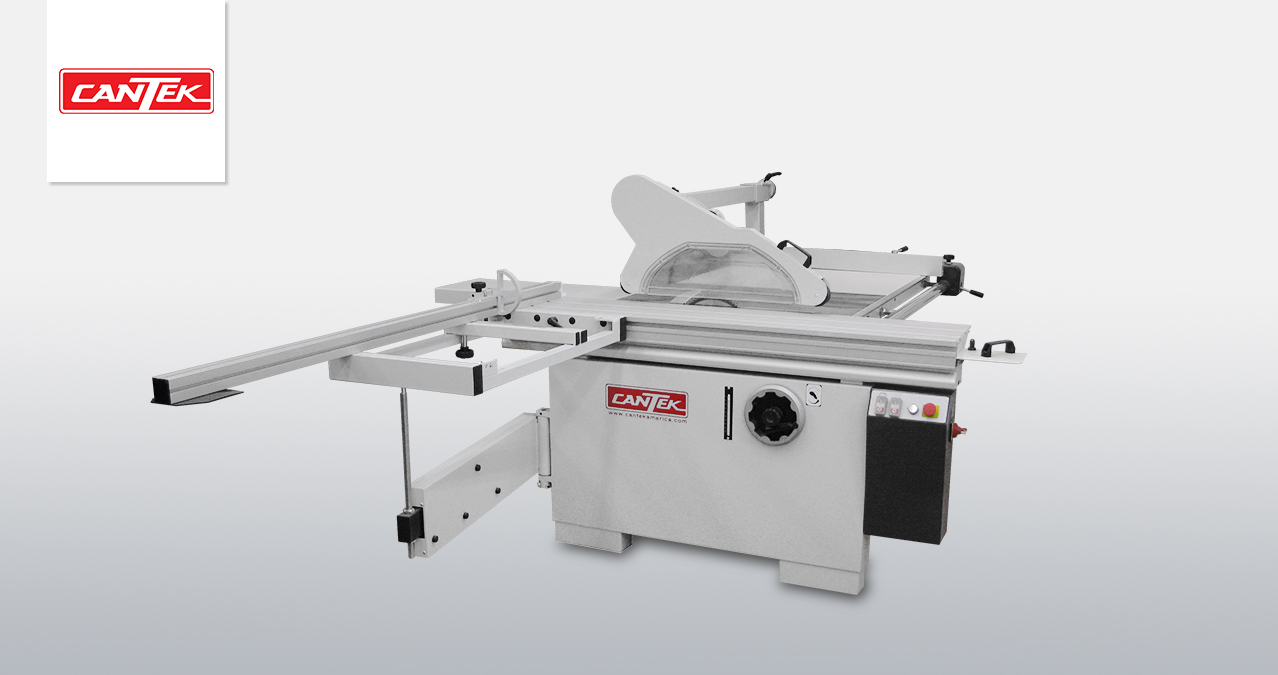

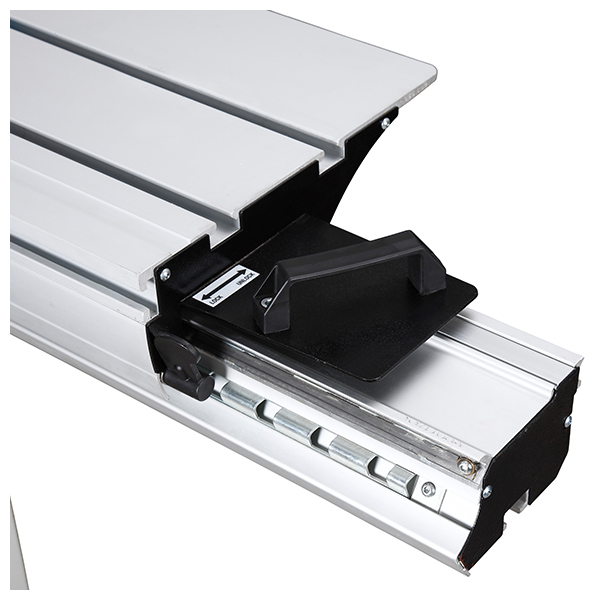

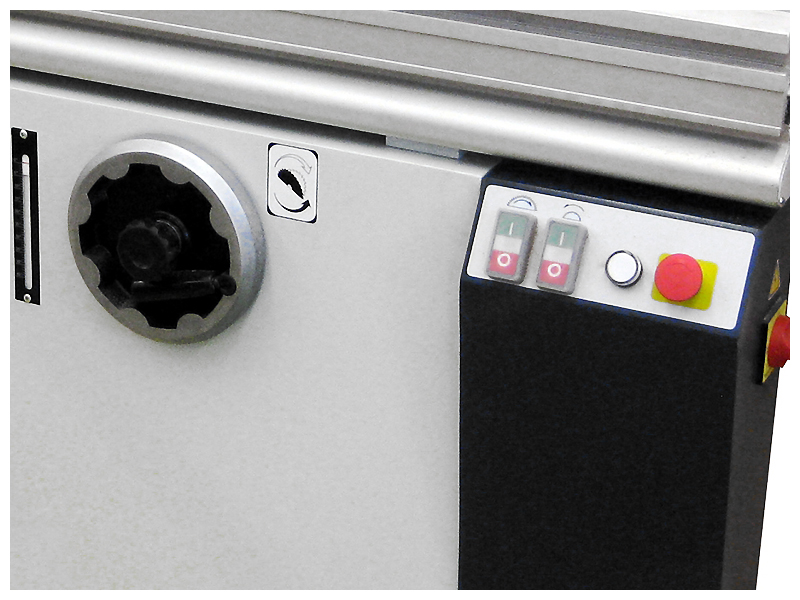

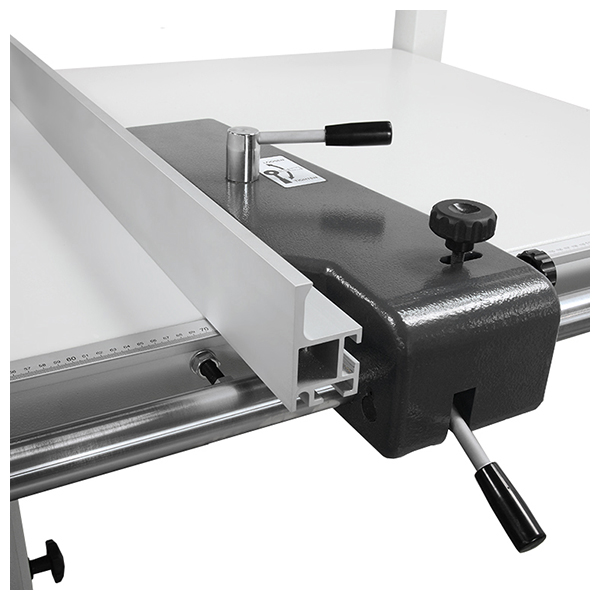

The Cantek P30 5′ Sliding Table Saw is the ideal solution for customers looking for the precision and convenience of a sliding table saw but have limited floor space and smaller cutting requirements. The P30 has a precision sliding table which runs on ball bearings and hardened steel guide strips. It is equipped with individual motors for the main saw blade (5 HP) and scoring blade (¾ HP). The blade height and tilt is manually adjusted by means of individual handwheels. The angle of the blade is displayed by a linear scale for added operator convenience. The rip fence runs on a round hardened rail and is manually adjusted up to 51”. Equipped with a crosscut miter fence and (2) flip stops.
-
Specs
Sliding table dimension|63″ x 12.4″
Cast Iron table|21 ½” x 35 ¼”
Extension table (rear)|18″ x 17 ½”
Extension table (front)|12 ½” x 32 ½”
Table size|39 ½” x 68″
Main saw blade (Max.)|12″
Main saw bore|30mm
Max. cutting height at 90° (355mm)|3.54”
Max. cutting height at 45° (355mm)|2.48”
Main motor power|5 HP
Main blade speed|4000 RPM
Scoring saw blade|120mm
Scoring saw blade bore|20mm
Scoring blade motor power(optional)|3/4 HP
Scoring blade speed|8000 RPM
Cutting width – ripping|51”
Cutting width adjustment|Manual
Crosscutting width (Maximum)|134.6”
Main saw blade tilting adjustment|Manual (0°~ 45°)
Main saw height adjustment|Manual
Scoring saw height adjustment|Manual
Saw guard|CE Guard Included
Dust collection ports|(1) 4” / (1) 2.3”
Machine weight|984 lbs
Shipping weight|1151 lbs
Shipping dimensions|83” x 46” x 44”
Electrics|230/1/60 = 34.9 Full Load Amps|230/3/60 = 18.4 Full Load Amps -
