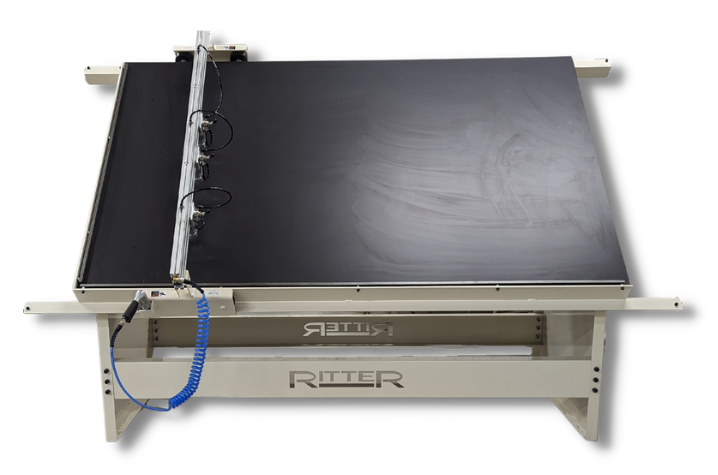

R215EA | Ritter | Face Frame Assembly

  • Power:
    Pneumatic
Request a Quote

  • Description

    Screwed together face frame construction provides for the most efficient and economical methods for joining frames. Flush and tight joint construction is provided for all types of wood. Elimination of dowel boring and insertion, clamping time and joint misalignment provide up 50% time reduction in frame production. The ability to disassemble and reposition a joint creates less loss of material in case of errors in the joint location. No glue required.



    • Hold Down Beam with (3) Adjustable Hold Down Cylinders

    • Squaring Bars on Left and Bottom Sides

    • Usable Table Area: 58.5″ x 94.5″

  • Specs

    Standard Features:

    •5’x8′ Assembly Table

    •45 Degree Vertical Easel

    •Hold Down Beam with (3) Adjustable Hold Down Cylinders

    •Squaring Bars on Left and Bottom Sides

    •1″ Thick Laminated Surfaced Table

    •Heavy Duty Steel Frame

    •(1) Coilhose for Pneumatic Screw Gun

    •Screw Gun Not Included

    Technical Data and Specifications:

    Usable Table Area: 58.5″ x 94.5″

    Footprint: 117″ L x 48″ D

    Electrical: N/A

    Air: 100 PSI

    Shipping Weight: 1200 LBS

    Shipping Dimensions: 68″ X 120″ X 30″ H
