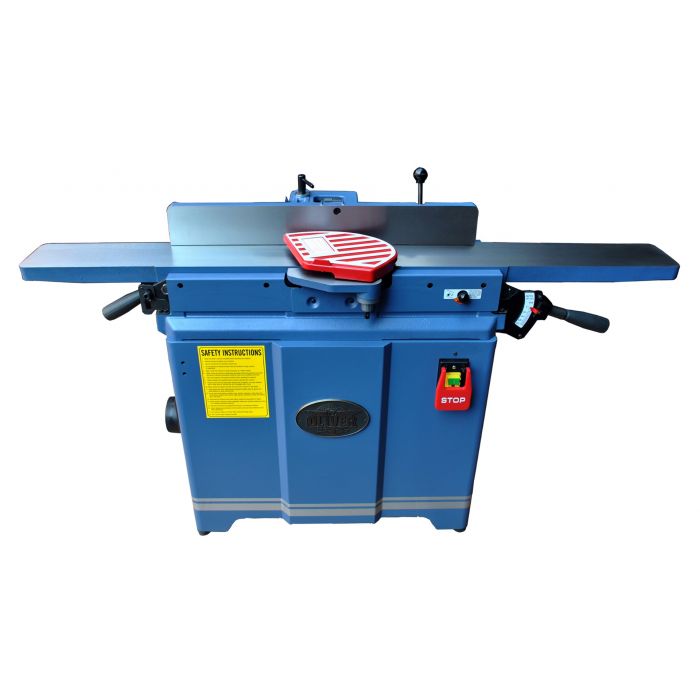

4225 | Oliver | Jointers

  • Power:
    115/230V 1PH 1HP 13/6.5AMPS
Request a Quote

  • Description

    •Extra-long precision ground tables provide a stable work surface.


    •Parallelogram design provides smooth accurate cuts.

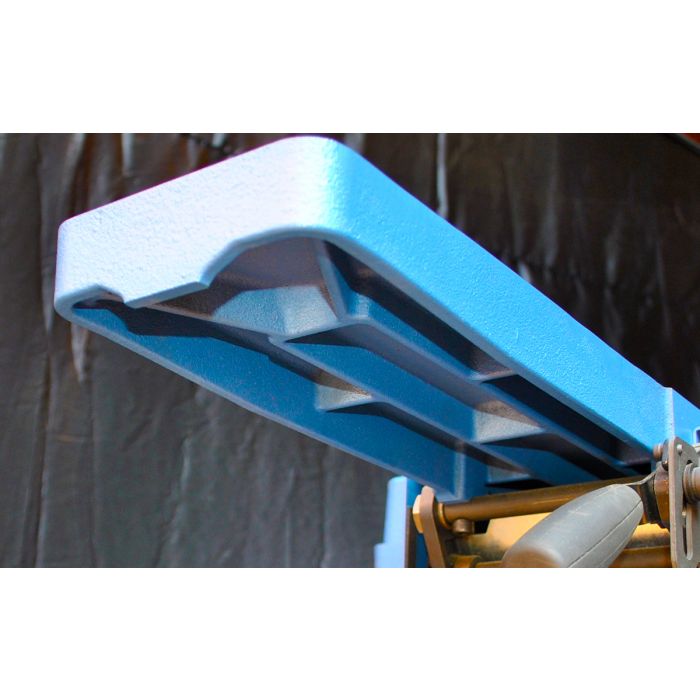

    •Cast iron frame offers stable table support


    •Fully enclosed cabinet with 4” port for superior dust management.

    •Helical cutter head includes premium carbide inserts.

    •4-sided cutting inserts are indexed and easy to replace.

    •Lever controlled infeed and outfeed table adjustment allows quick set-up.

    •Long precision ground fence tilts up to 135° with positive stops at 45° and 90°.

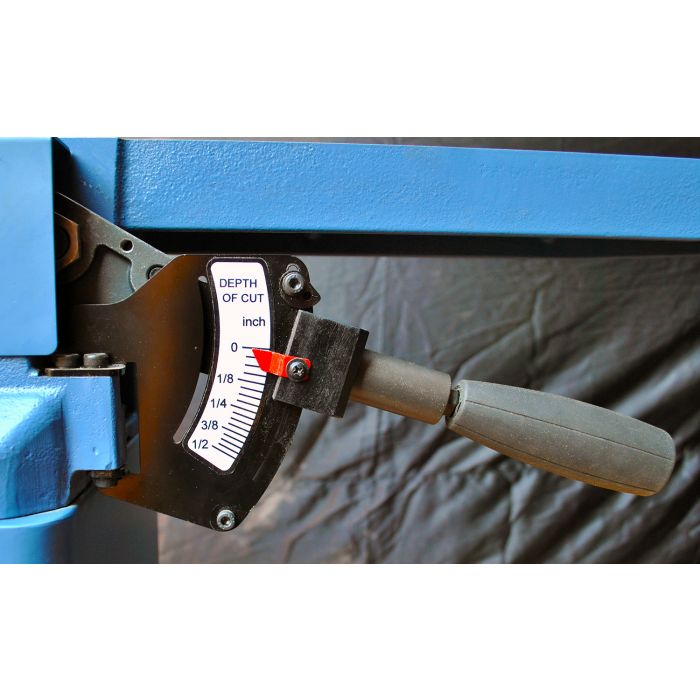

    •Easy to read depth of cut gauge.

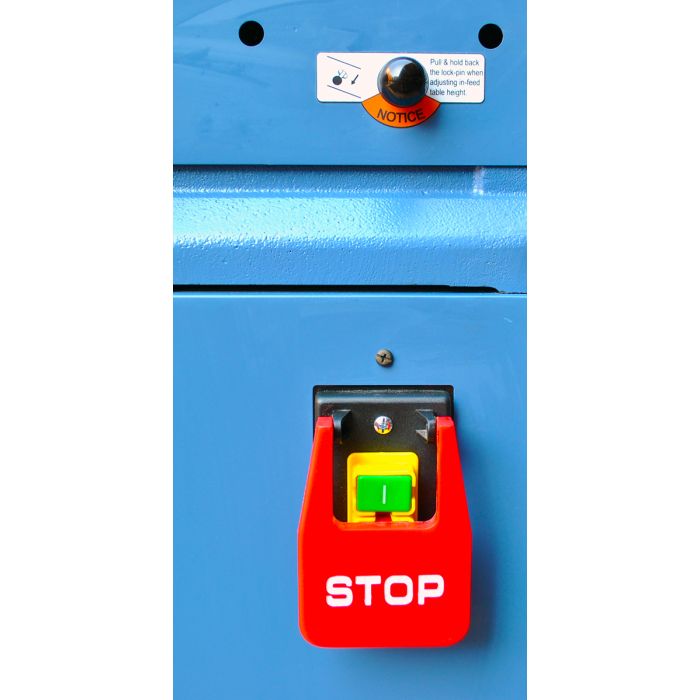

    •Large lockable paddle switch for added safety.

    •Powerful TEFC 1HP single-phase motor.

    •Ploy V-belt drive efficiently delivers power to the cutter head.

  • Specs

    Model Number|4225

    Stock Number|4225.201 (1 HP, 1Ph, Helical)

    Infeed Table Travel|1/2″

    Cutterhead Speed|5,500 (RPM)

    Number of Knives (helical)|28 Inserts

    Maximum Depth of Cut |1/8″

    Rabbeting Capacity|1/2″

    Dust Port Diameter|4″

    Table Dimensions|60-3/4” L x 5-3/4” W

    Table Height|31-1/2″

    Fence Dimensions|29”L x 3-3/4”H

    Fence Tilts|45°, 90°, 135°

    Positive Stops|45° and 90°

    Motor 1Ph|1HP, 115V/230V, Prewired 115V (1Ph, 13/6.5 Amp)

    Net Weight|240 lbs.

    Gross Weight|375 lbs.
