#713A-LCS | Taylor | Clamp Carriers

Request a Quote

  • Description

    Features:

    • Standard Machine Models
    • (5) Section Model
    • (8) Section Model
    • Each Section has a 38″ x 96″ Maximum Clamping Capacity
    • Each Section Includes (4) Vertical Clamps and (1) Horizontal Clamps
    • Single Lever Valve Air Activation
    • Clamp & Square Multiple Cabinet Doors with Vertical Center Rail
    • (2) 36″ x 46″ Doors Side by Side Double Door Clamping.
    • 38″ x 96″ Doors with the Center Rail Removed
    • Heavy Duty Diaphragm Cylinders Provide up to 1500 lbs of Clamping per Clamp
    • Door Pro Frame is made of 100% Steel Construction

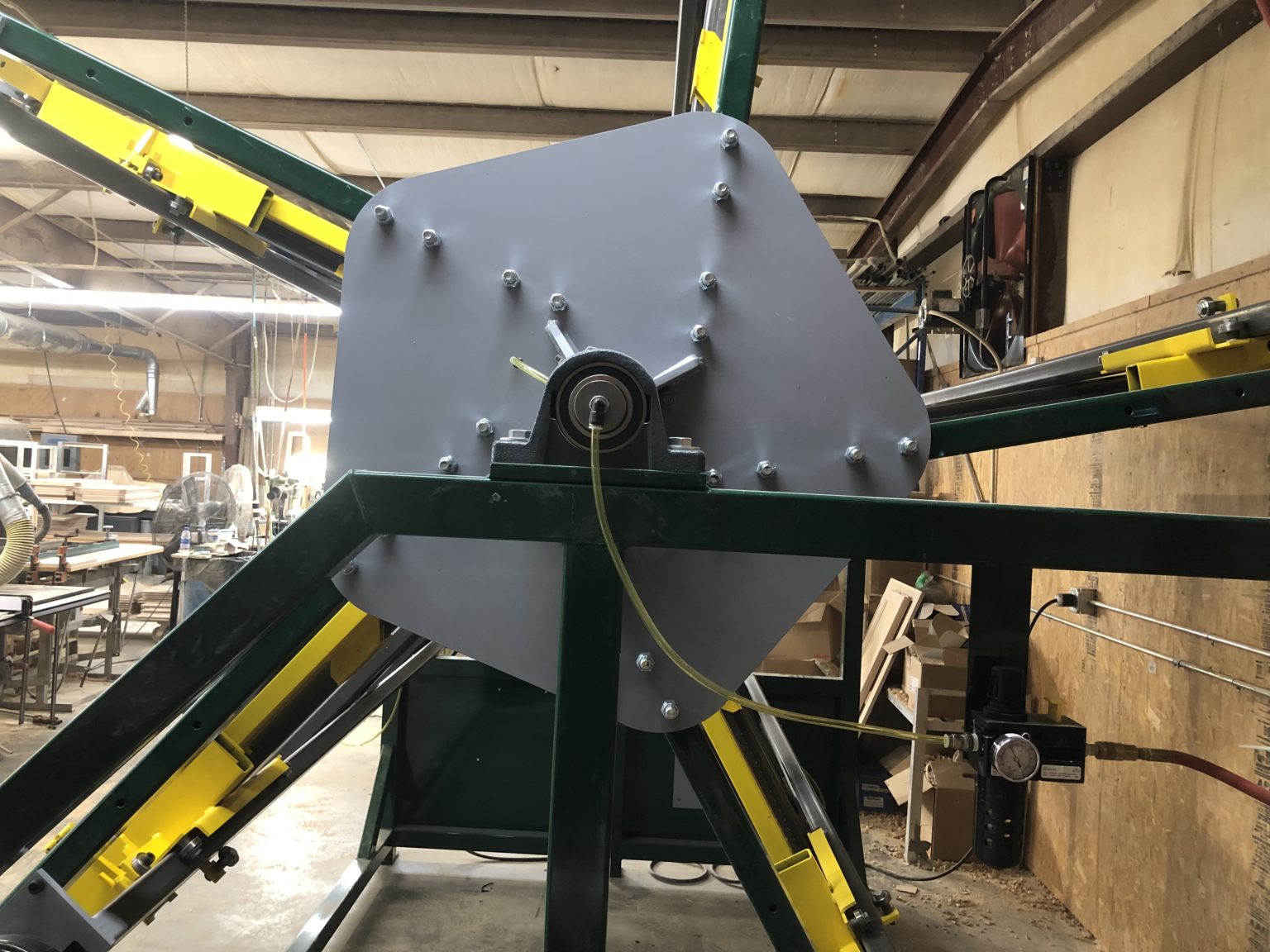

    • Electric Gear Motor Provides Counter Clockwise Rotation for Operator Safety
    • Single Button Control Box Activates Rotation and Includes Auto Index Feature
    • Precisely Square and Clamp Stile & Rail Doors
    • Includes a (1) Year Manufacturers Warranty

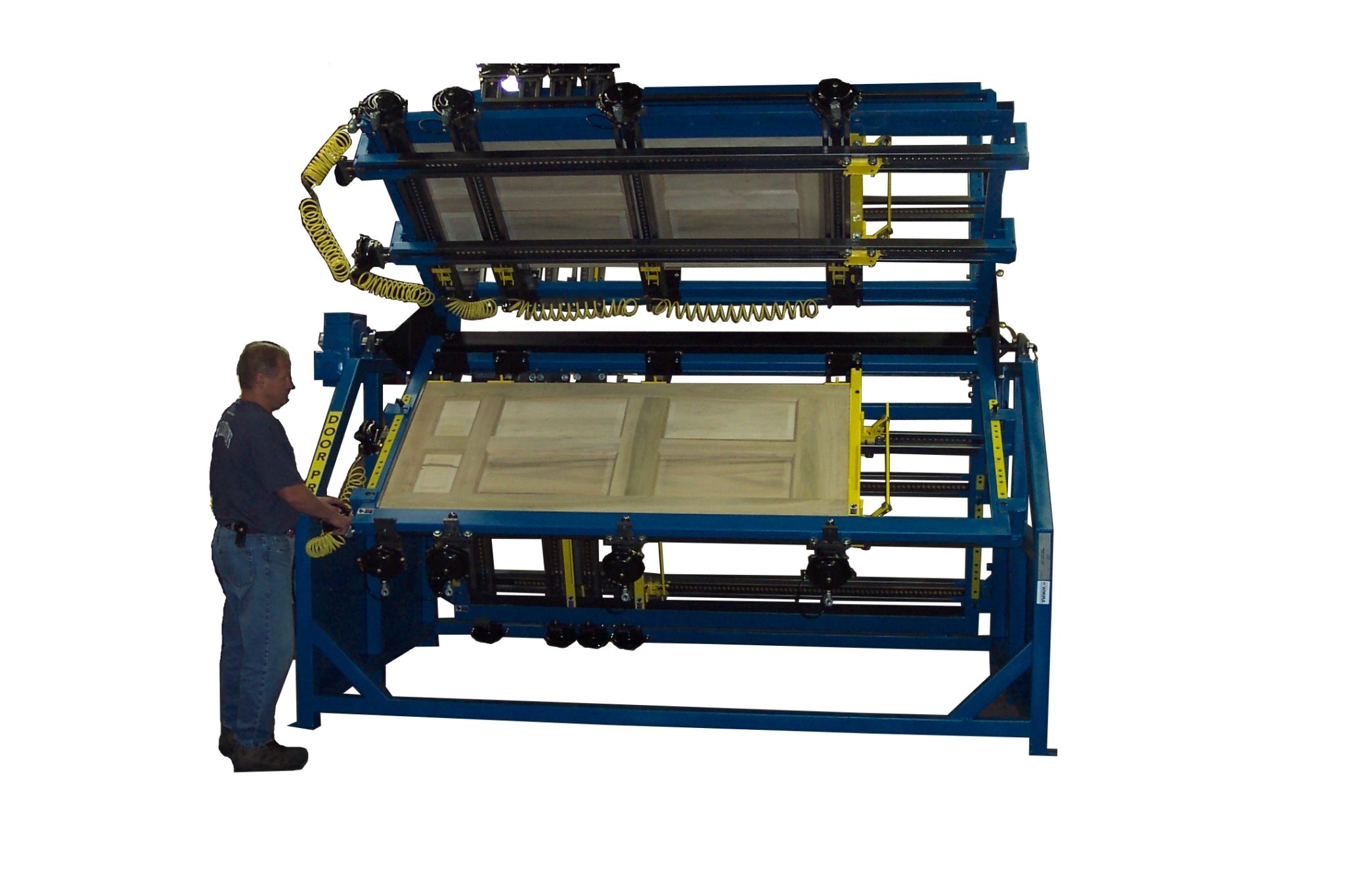

The Taylor Door Pro was a natural progression from the JLT Single Door Clamp. We have installed hundreds of machines in shops across North America. Machines come in (5) and (8) station models and some customers order an (8) station frame with (4) stations installed. This provides for easy expansion in the future.
