60HH | Powermatic | Jointers

  • Power:
    2HP 1PH 230V
  • Description

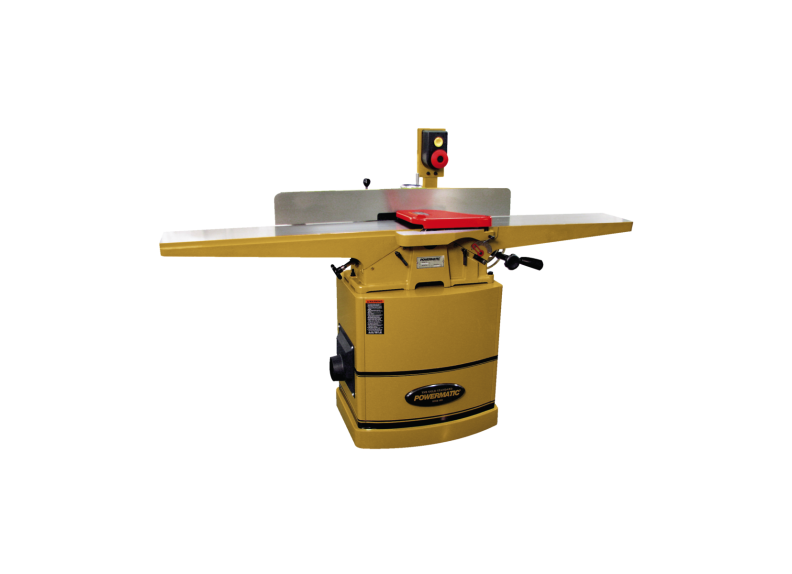

    This 8″ Jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73” long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three high speed steel knife cutterhead, or a helical cutterhead with 54 four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base – store them on any metallic surface for instant access.

  • Specs

    Cutterhead Diameter (In.)|3

    Cutterhead Speed (RPM)|7000

    Cutting Capacity (W x D) (In.)|8 x 1/2

    Dust Collection Minimum CFM Required (CFM)|450

    Dust Port Outside Diameter (In.)|4

    Infeed Table Length (In.)|35-1/4

    Motor Amps|9

    Motor Power (HP)|2

    Motor Voltage (V.)|230

    Number of Knives|54

    Prewired Voltage (V.)|230

    Prop 65|Cancer and Reproductive Harm

    Recommended Circuit Size (Amps.)|20

    Type of Cutterhead|HELICAL
