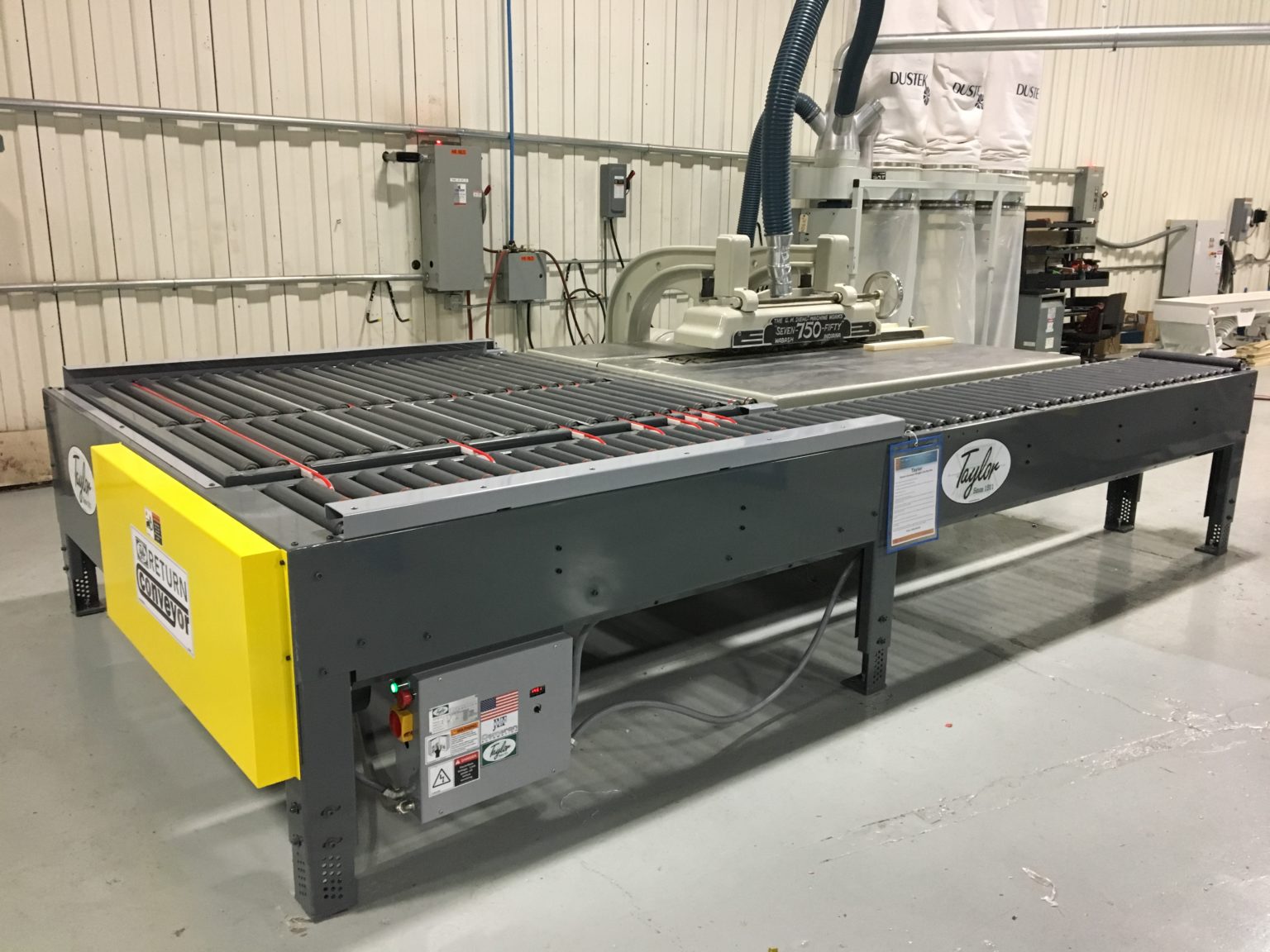

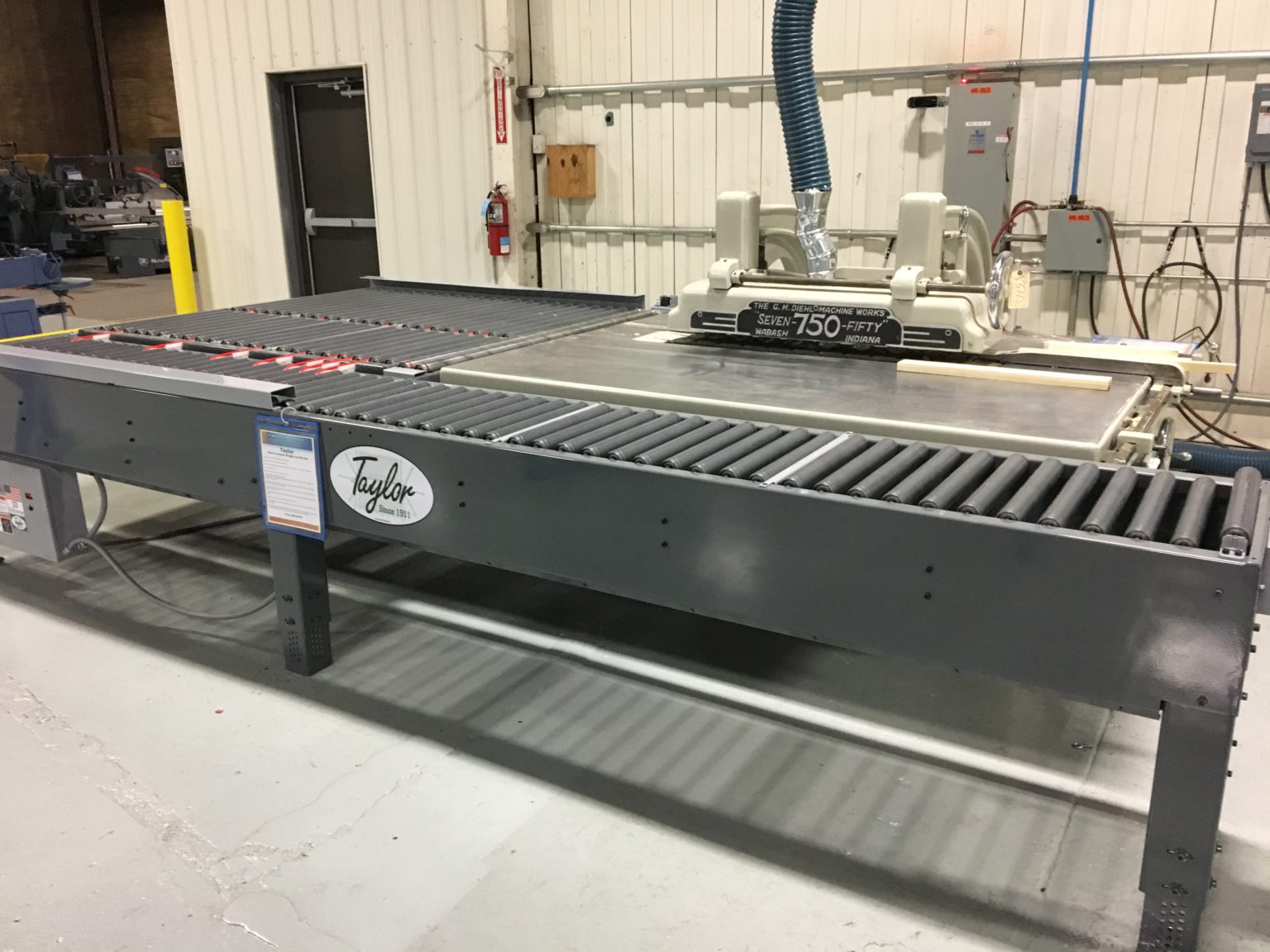

#912A | Taylor | Return Conveyors

Request a Quote

  • Description

    Features:

    • (3) machine Lengths Return Material up to 60″ Long, 84″ Long, and 90″ Long
    • Catch Area Widths of 36″ Wide, 48″ Wide, and 60″ Wide
    • 18″ Wide, 24″ Wide, and 36″ Wide Return Sections can Return Material up to 14″ Wide, 20″ Wide, and 50″ Wide respectively
    • Drop Away Receiver Gently Transfers Parts to Cross Conveyors
    • Photo Eye Triggers Drop on Receiving Conveyor. A PLC Automatically Adjusts the Timing Based on Conveyor Speed
    • Any Length Return (in one foot increments, measured from tail end of Straight Line Rip Saw) composed of modular sections.

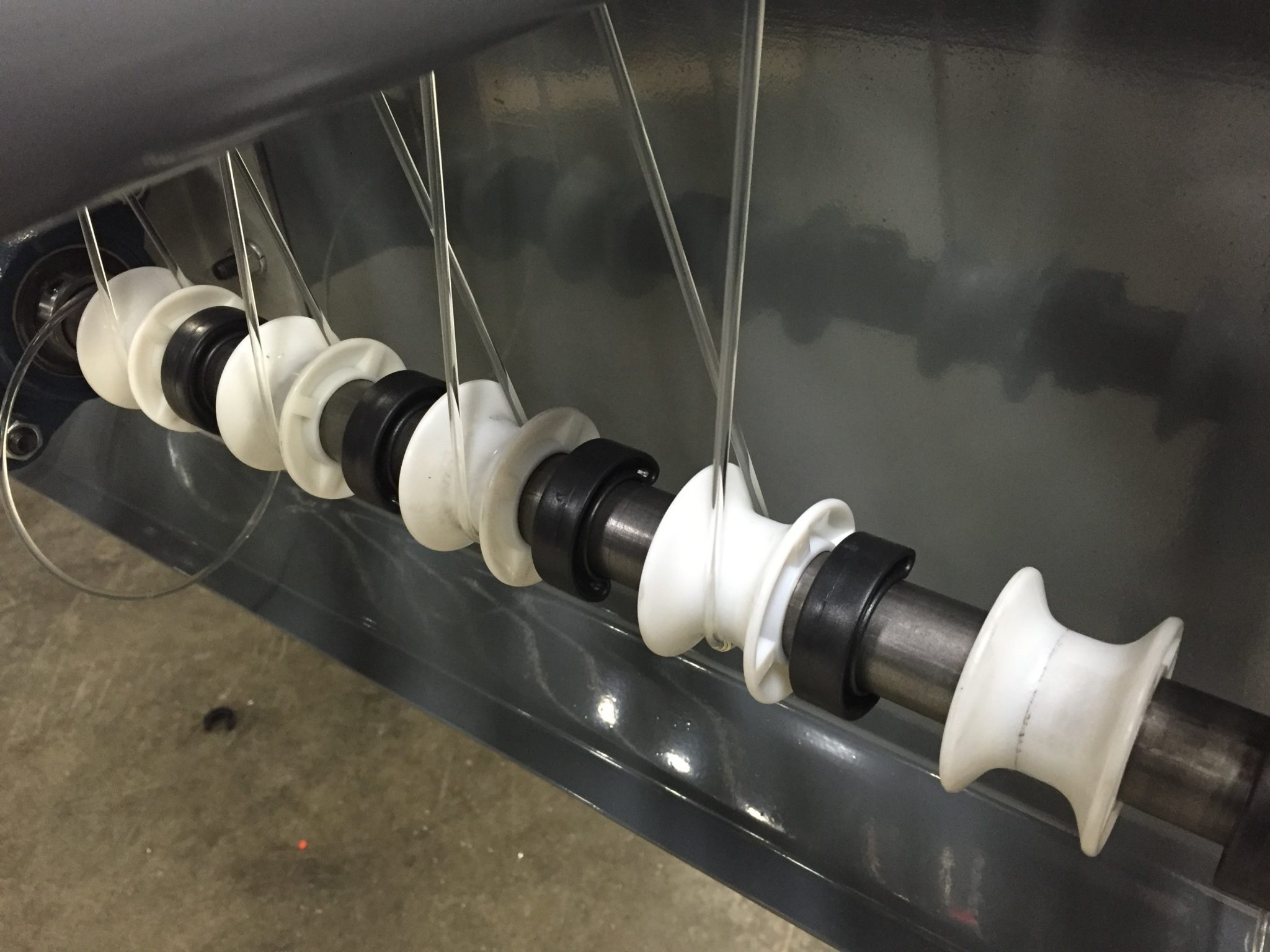

    • All rollers are powered and individually clutched for long belt life.
    • Roller Spacing 3″ center to center.
    • Variable Speed AC drive matches conveyor feed rate to rip saw feed rate.

    A Return Conveyor is an Easy Machine to Justify. The Investment is not Large and every hour, day, or week that it is used saves all the $$$$ associated with one person’s salary and benefits. Return Conveyors on straight line rip saw have a fast payback. Most boards need 2+ passes through the saw, so productivity is increased by 100% or more. Usually the catch width is sized so boards can be ripped on both sides of the blade
