DET AB-Type | Cantek | Mortisers & Tenoners

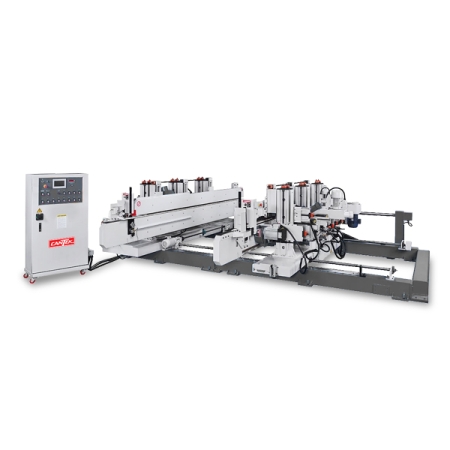

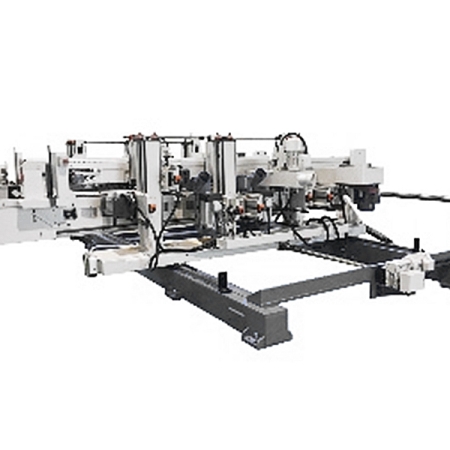

Elevate your craft with one machine that allows you to do it all. The Cantek DET AB-Type Extended Double End Tenoner is a modified machine that features an assembled-type base design, utilizing a wide base that allows for an increase in the housing capacity expanding the functionality for up to 14 working units (7 per side). With a wide range of working units to choose from, including, saw units, profile moulding units, tenoning units, profile sanding units, top and bottom chamfering units, drilling units, etc., every Double End Tenoner is fully customizable to suit highly specific machining requirements. HSK 63F spindles and NC positioning via servo with programmable recipe inputs can be added for quick tooling changeover to facilitate efficient small-batch manufacturing. Whether you need a standalone unit or part of a comprehensive production line, we offer tailored solutions to suit your needs.
Key Advantages
More Working Unit Options:

Fixed Scoring and Main Saw Systems
Jump Scoring Saw System
Tiltable Saw System
Jump Moulding System (High-Frequency Motor)
Tiltable Moulding System (High-Frequency Motor)
Moulding System (Belt Driven Spindle)
Moulding System (HSK 63F Motor)
Top and Bottom Tenoning Systems
Top and Bottom Chamfering Systems
Copy (Floating) Top and Bottom Chamfering Systems
Boring System (At Infeed)
Belt Sanding System (Standard-Type)
Belt Sanding System (Wide-Type)
Automatic Tool Changer
Spindle Sanding System (With Auto-Compensation Function)
Central Panel Splitting System
Central Grooving System
Fully automatic functions to significantly reduce operator calibration time when switching from one job to the next include…

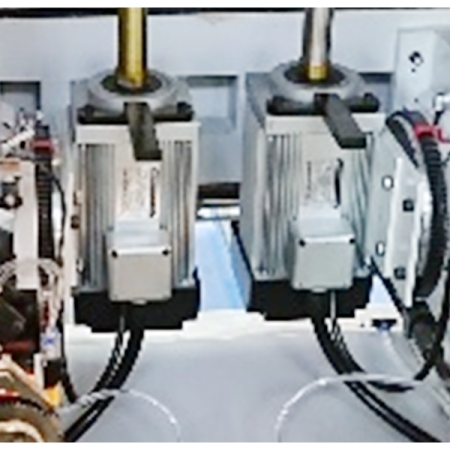

NC servo positioning on the movable side of double end tenoner
NC servo positions on top pressure hold downs
NC servo positioning on working units (horizontal and vertical axes)
NC servo positioning on infeed fence
Automatic dogs

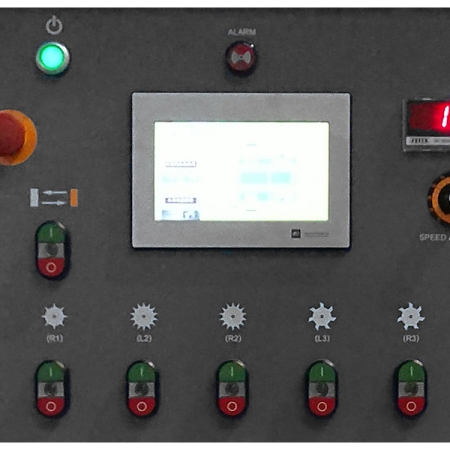

User-friendly HMI that offers upgrades for recipe storage/upload of working parameters for up to 100 sets up tooling; accessed via batch number input, barcode scanning or Microsoft Excel Spreadsheet (via MX Sheet)
