Description

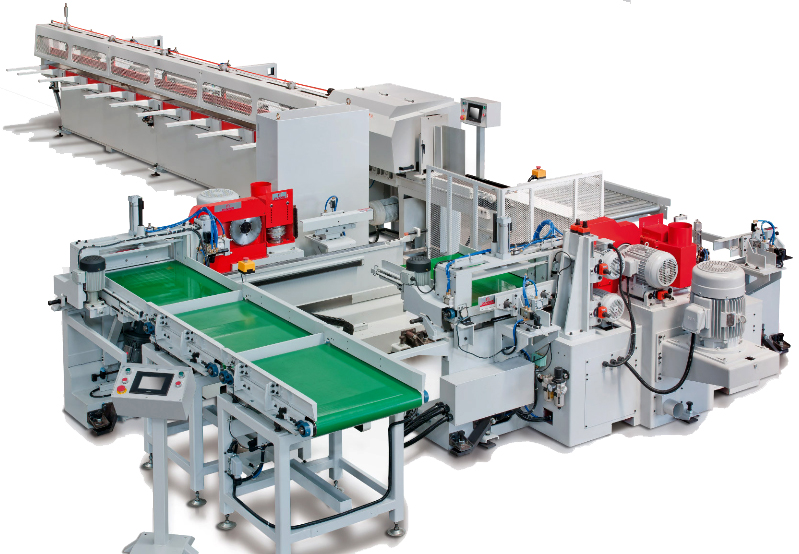

Auto Finger Joint Line w/F-129-T2 AUTO INFEED TABLE
-
Specs
FL-08 AUTO FINGER JOINT LINE INCLUDES THE FOLLOWING:
F-129-T2 AUTO INFEED TABLE
Length 900mm (35.4”)
Width 600mm (23.6”)
Infeed Table½ HP (3Ph) x 2

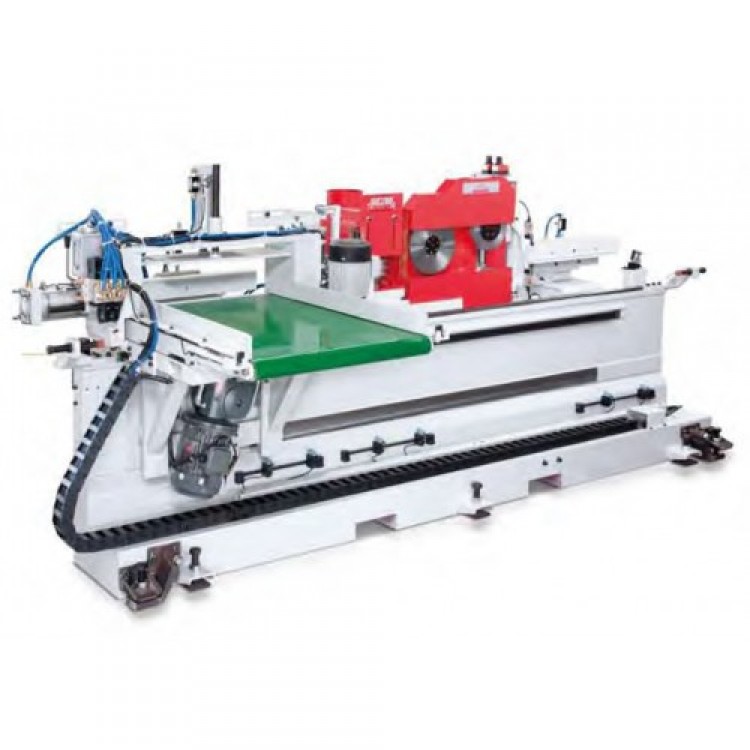

F-C07 AUTO FINGER SHAPER – LEFT
Table Size 600mm (23.6”)
Length 150~900mm (5.9” ~ 35.4”)
Width 20~60mm (0.78” ~ 2.36”)
Thickness 20~160mm (0.78” ~ 6.3”)
SPECIFICATIONS:
With 20HP (3Ph) for Main Spindle
With 5HP (3Ph) for Trimming Saw
With 2HP (3Ph) for Bottom Scoring Saw
With 1/2HP (3Ph) for Feeding Conveyor

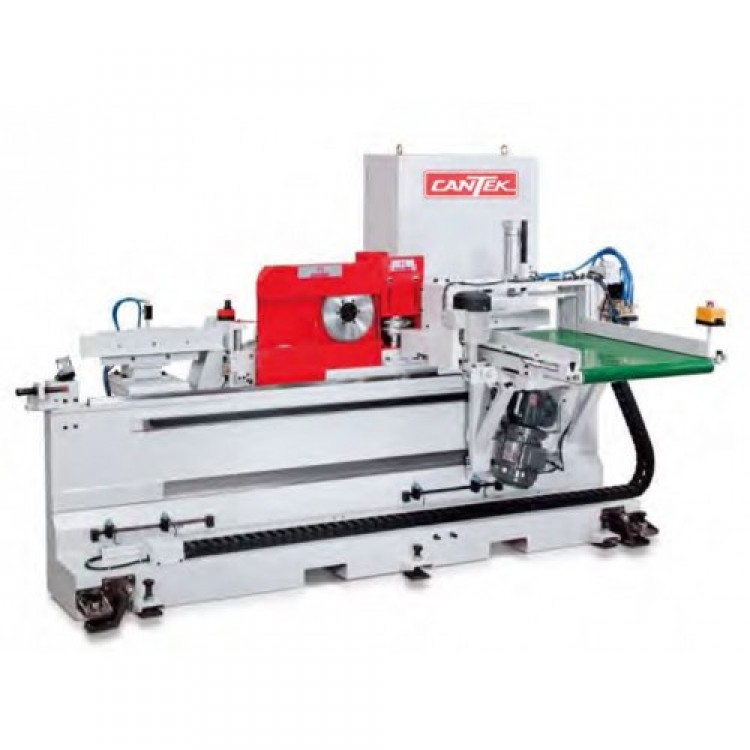

F-C08 AUTO FINGER SHAPER – RIGHT
Table Size 600mm (23.6”)
Length 150~900mm (5.9” ~ 35.4”)
Width 20~60mm (0.78” ~ 2.36”)
Thickness 20~160mm (0.78” ~ 6.3”)
SPECIFICATIONS:
With 20HP (3Ph) for Main Spindle
With 5HP (3Ph) for Trimming Saw
With Top and Bottom Scoring Saw, 2HP (3Ph)x 2
With 1/2HP (3Ph) for Feeding Conveyor
With Gluing System – Roller Type

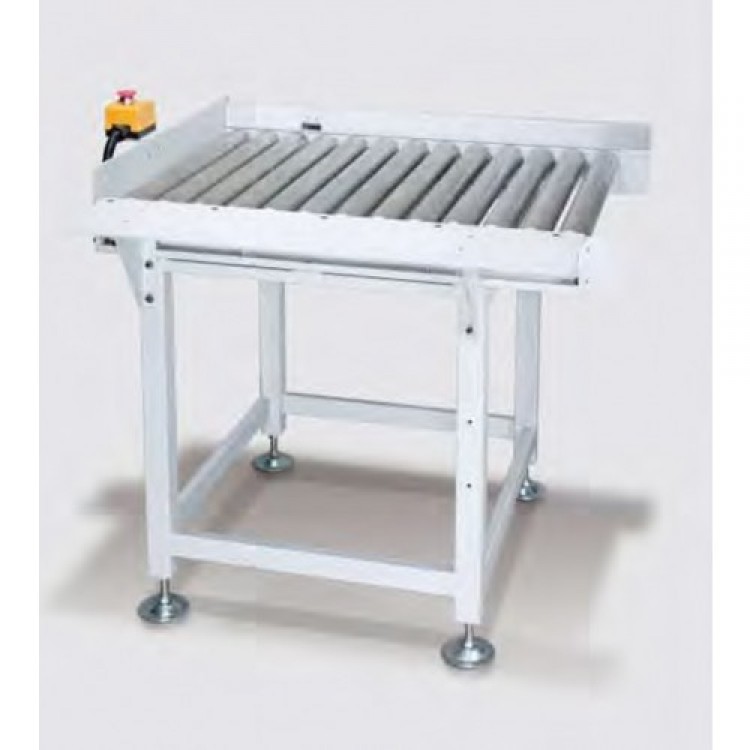

F-D16 TRANSFER ROLLER
Length 900mm (35.4”)
Width 600mm (23.6”)

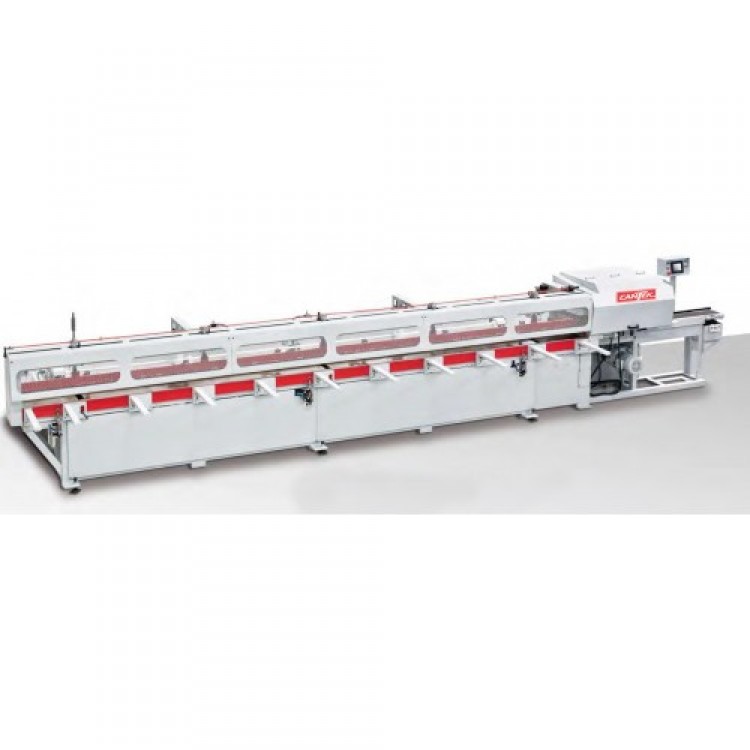

F-A05-6 TWO STAGE AUTO FINGER ASSEMBLER
Length 6000mm (236”)
Width 20~160mm (0.78” ~ 6.3”)
Thickness 20~60mm (0.78” ~ 2.36”)
SPECIFICATIONS:
With 2HP (3Ph) for Feeding Table
With 5HP (3Ph) for Sizing Saw
With 5HP (3Ph) for Oil Pump
With Saw Blade
Speed – Max. 4~5 Piece/Min.
