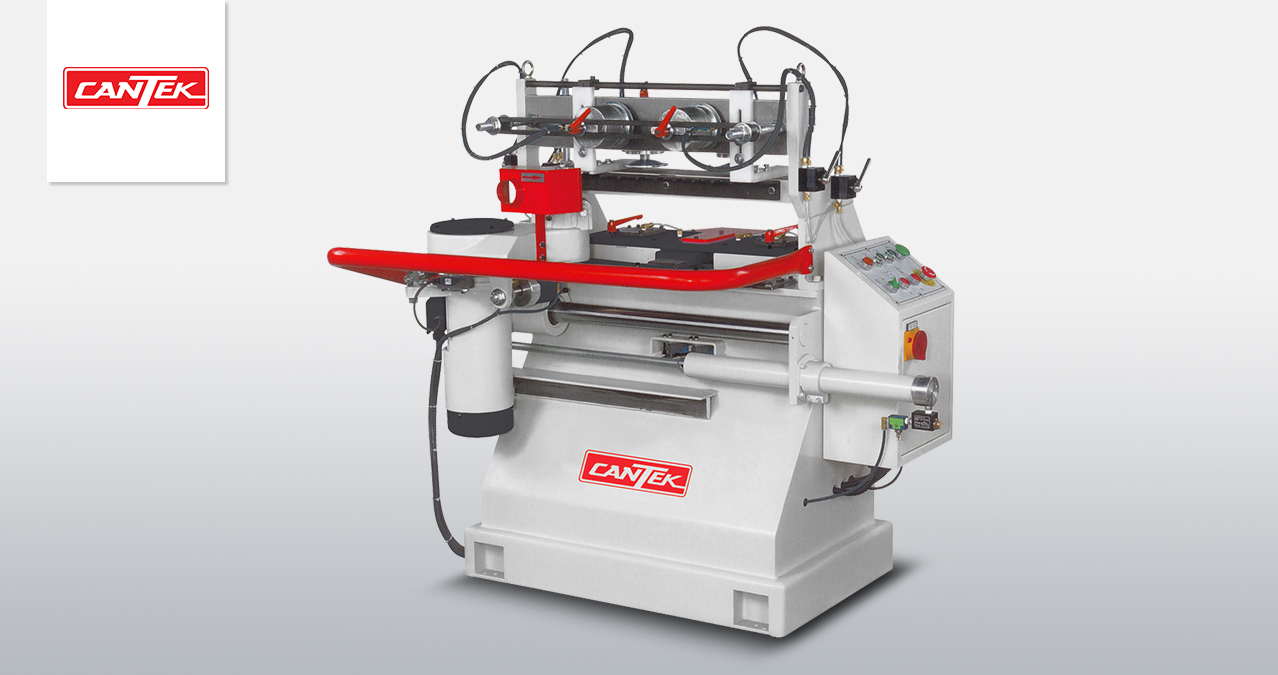

JDT75 | Cantek | Dovetailers

  • Power:
    230V 3PH 4HP 13.6AMPS
Request a Quote

  • Description

    Add prestige to your cabinets with aesthetically pleasing dovetail drawer boxes with Cantek JDT75 Automatic Dovetailer. Dovetails display your quality and are built to last, producing beautifully aesthetic dovetails for drawer box production from a wide range of wood types, including plywood and solid wood. This fully automatic machine produces both the pin and tail of the dovetail simultaneously. All four sides of the drawer can be loaded into the machine for optimum production capacity.

  • Specs

    Fixed pitch|25mm

    Spindle speed|21,500 RPM

    Spindle diameter shank|0.472” (12mm)

    Spindle motor|2 HP

    Feed motor|2 HP

    Electrics|230/3/60 = 13.6 Full Load Amps

    Feed speeds (3)|16, 22, 31 cycles/min

    Net weight approx|990 lbs.

    Shipping weight|1210 lbs.

    Shipping dimensions|55.12” x 34.65” x 55.12”Working length|min. 7.87” (200mm) to max. 59” (1500mm)

    Working width|min. 2.36” (60mm) to max. 16.93” (430mm)

    Vertical material thickness|0.275” (7mm) to 2.36” (60mm)

    Horizontal material thickness|0.394” (10mm) to 1.18” (30mm)
