Description

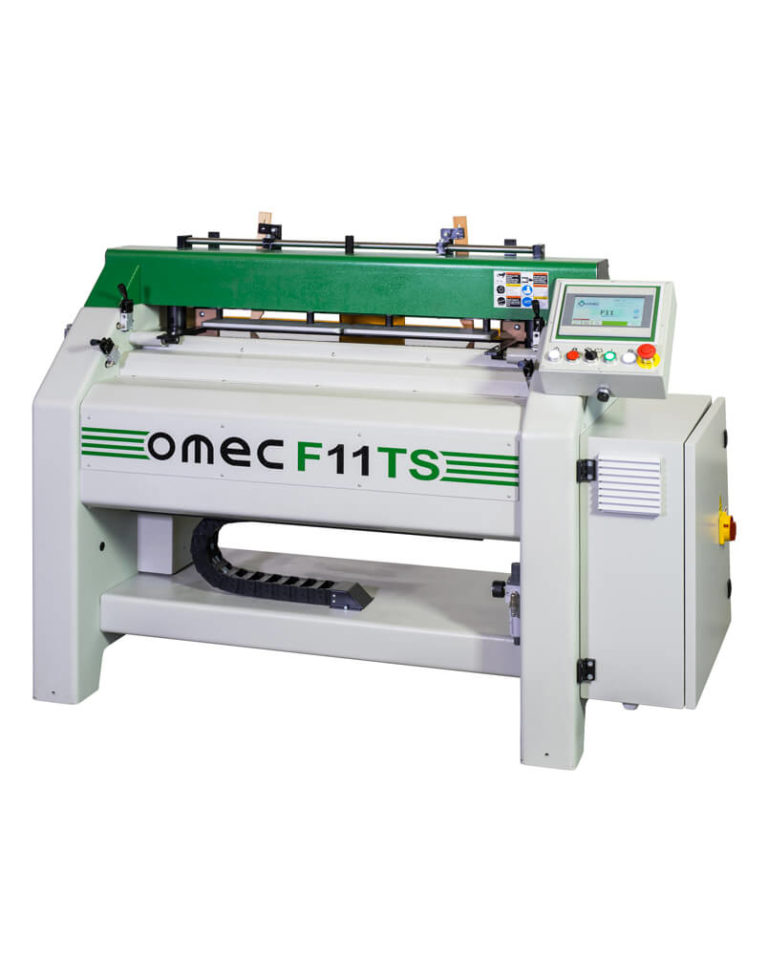

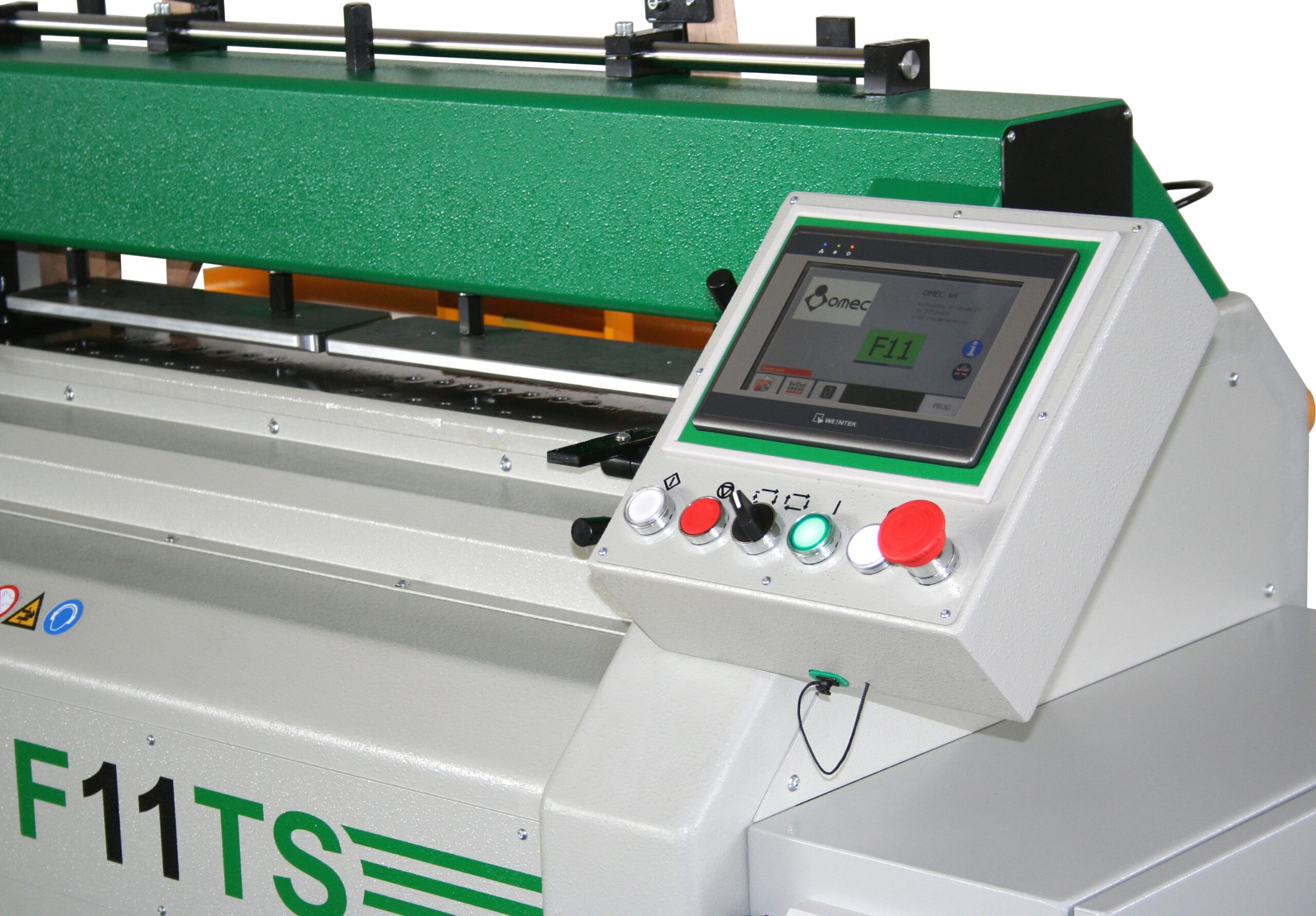

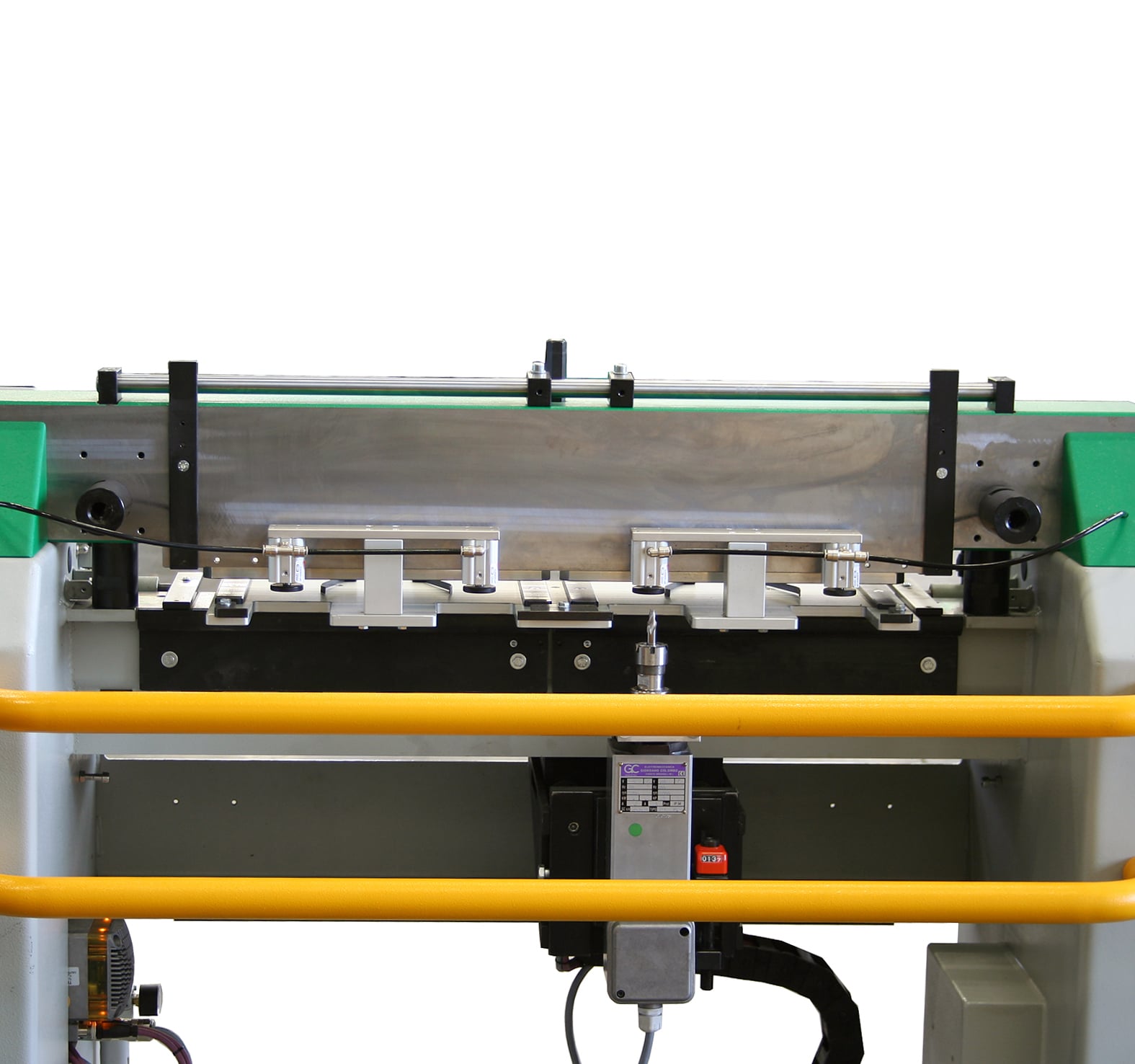

This versatile automatic dovetailer evolved from Omec’s original F11CN. With a machining area of approximately 30”, the F11TS can produce most any design and size dovetail product desired. The F11TS, with spindle speeds of 18,500 rpm, can accommodate a variety of tooling to produce the dovetail effect desired by operator including box cuts, French dovetails, alternating pitch, etc. Control of spindle location, machining speed, tooling variance, height of pin, depth of joint, location of joint, and number of joints are all controlled by CNC. The F11TS model utilizes 7″ inch touch screen /600 programs for easier and faster operator inputs and a better visual representation of the machine operation. Additional modifications include the positioning servo now equipped with an absolute encoder eliminating X and Y axis limit switches. This makes the Omec F11TS even faster and more precise than previous models. The Omec F11 machines are well proven and have been imported by Macoser in the U.S. since the late 90’s
-
Specs
Power installed of machine|6.1 HP
Working pressure|0.7 Mpascal
Number of spindles|1
Spindle revolutions|18,000rpm
Distance between centers of joints|Fixed or variable
Machine weight|1,210 lbs/550 kg
Packed machine weight|1,430 lbs/650 kg
Overall dimensions|33.5″ x 65.0″ x 47.24″ (85cm x 165cm x 120cm)
Packing dimensions|39.37″ x 72.83”” x 56.3″ (100cm x 185cm x 143cm) DIMENSIONAL LIMITS OF WORKPIECES
Minimum|Maximum
Length|6.69”(170mm)|59.06”(1500mm)
Width|2.36”(60mm)|30.31”(770mm)
Indent Height|0.24”(6mm)|0.98”(25mm)
Front Thickness|0.31”(8mm)|2.17”(55mm)
Side Thickness|0.31”(8mm)|1.18”(30mm) -
