MX340M | Cantek | Edgebanders
-
Power:230V 1or3PH 5HP
-
Description

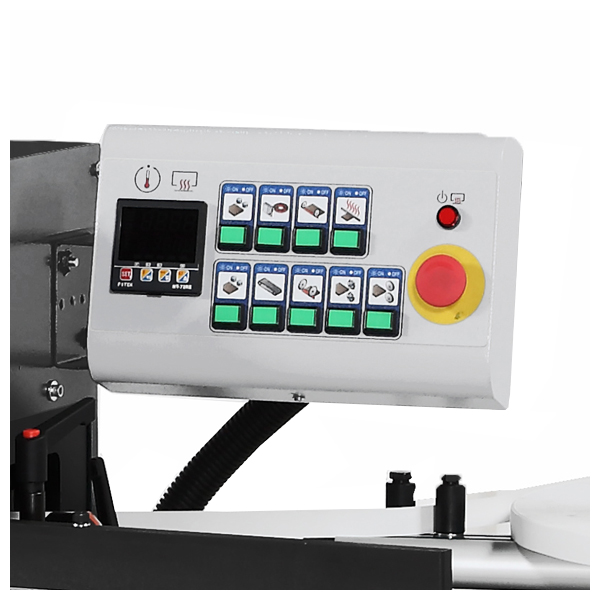

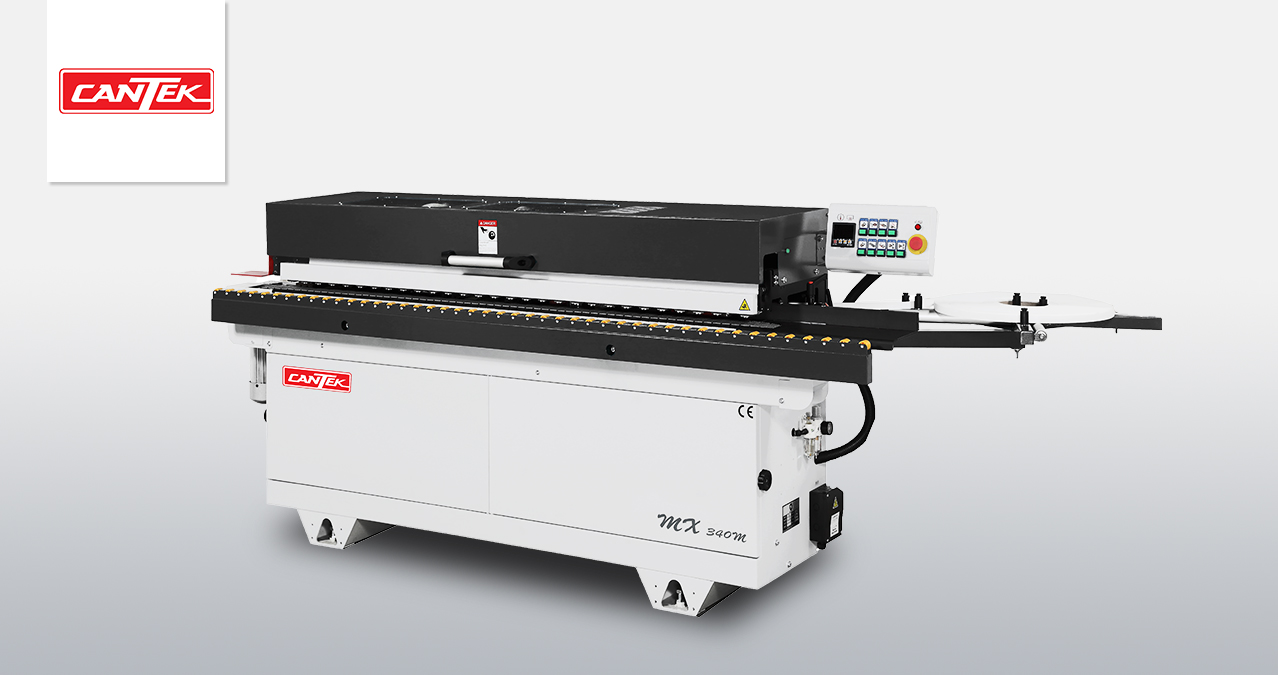

The Cantek MX340M Automatic Edgebander is an entry level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry the MX340M can output high quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
-
Specs

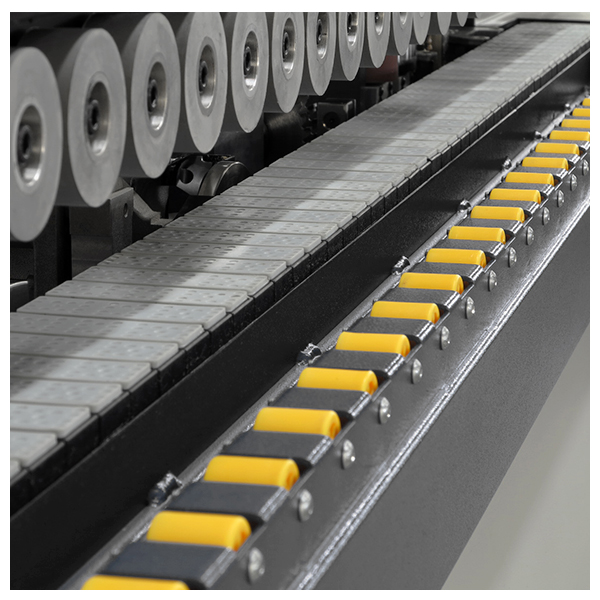

Feeding speed|23 FPM
Panel thickness|0.472~1.77″
Edge thickness|0.0158″~0.118″|0.4 ~ 3 mm
Minimum panel size|3 ½” x 3 ½”
Working table height|33.5″
Dust collection outlet dia.|2 x 4″
Total connected power|5 HP
Air|7.06 CFM / 85 – 100 PSI
Max. machine dimensions (LxWXH)|115″ x 47″ x 48″
Machine weight|968 lbs.
Shipping dimensions (LxWxH)|89″ x 29″ x 50″
Shipping weight|1115 lbs.

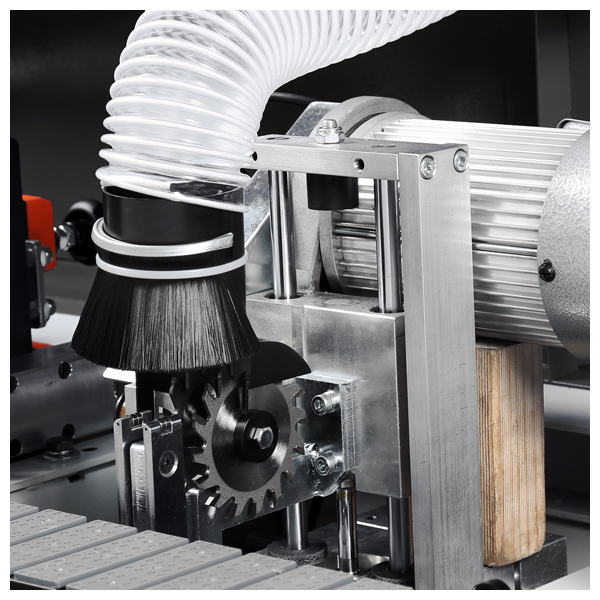

Electrical requirements|230/1/60 = 26 amps WORKING UNITS: END TRIM
8800 RPM dual saw blade (80mm / 3.15″) end trimming unit

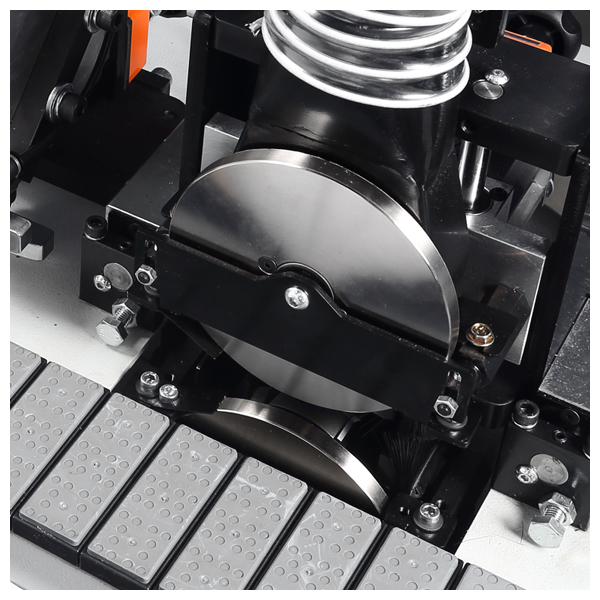

TOP & BOTTOM TRIM
10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

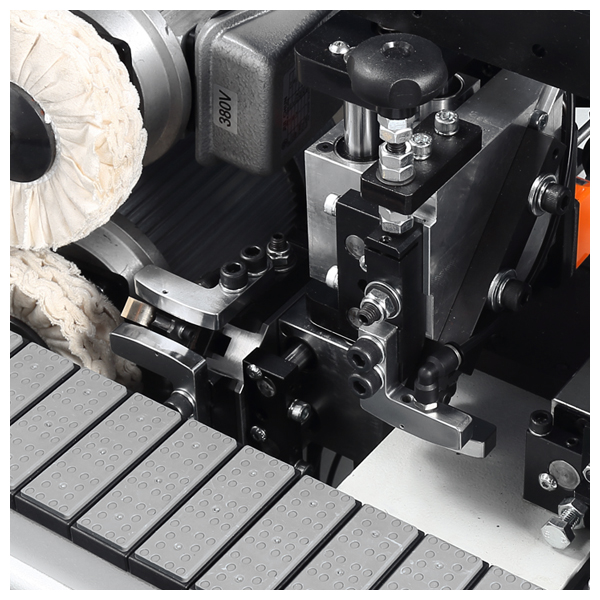

RADIUS SCRAPING
Radius scraper with 2mm radius knives can be easily excluded when not required

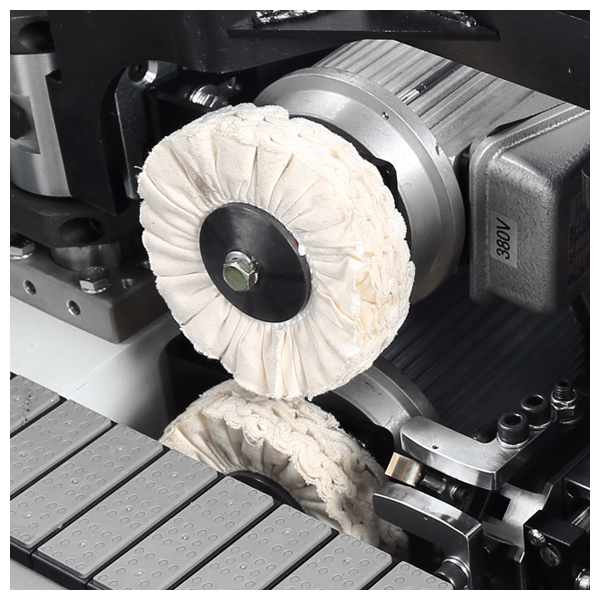

BUFFING
2800 RPM top & bottom buffing units to polish the machined edge -
