Description

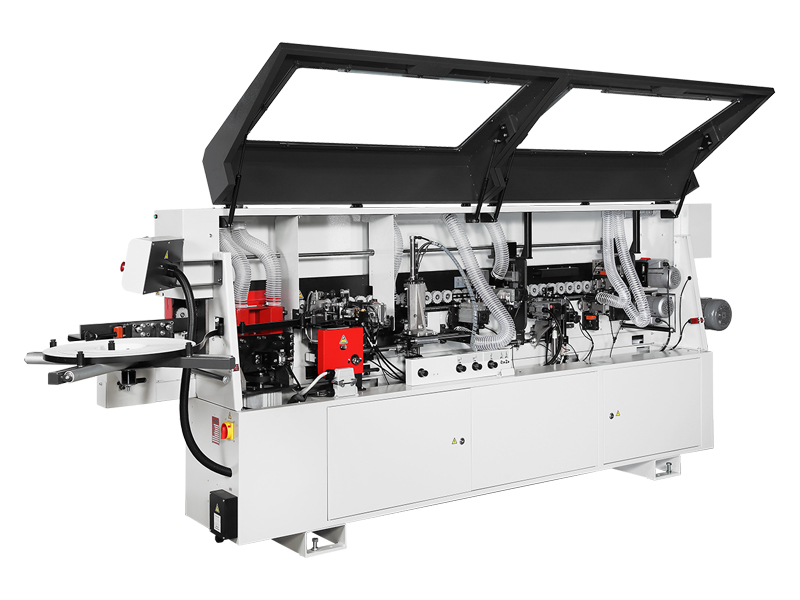

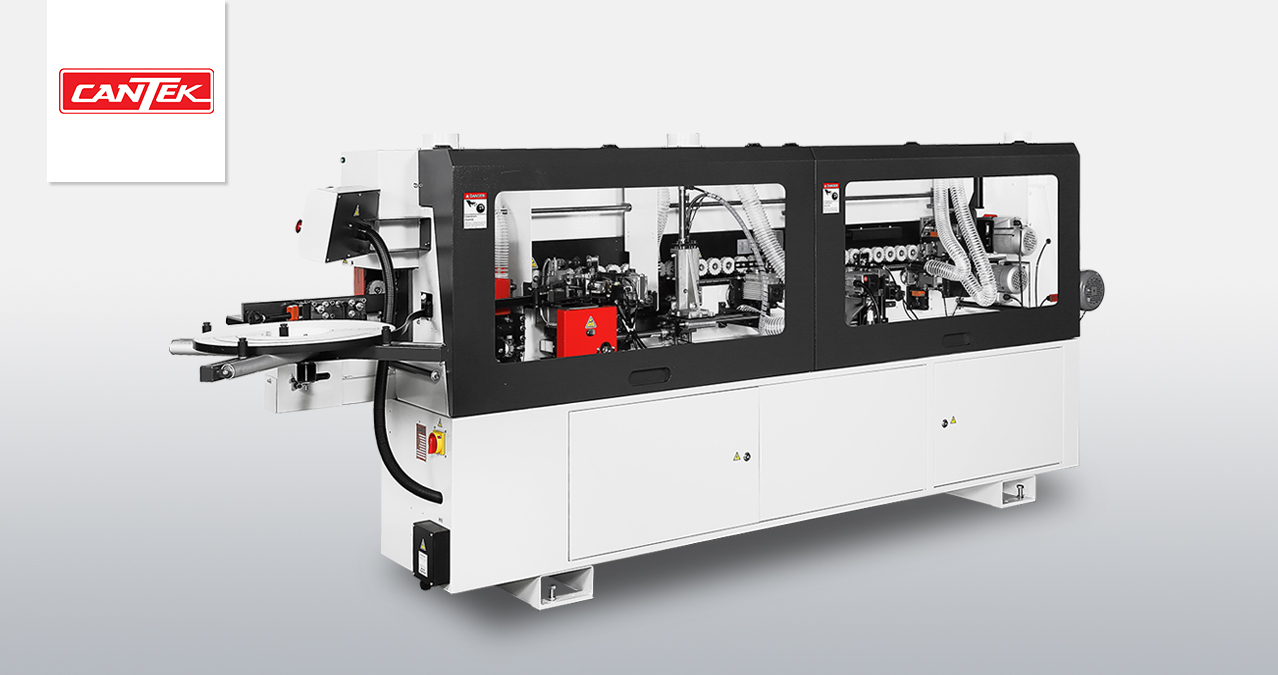

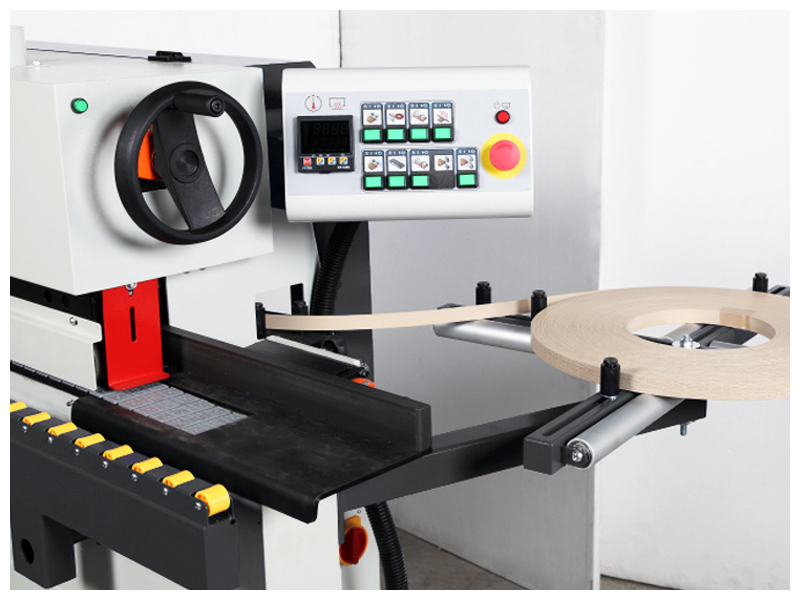

The Cantek MX370P Automatic Edgebander with Premilling and Corner Rounding is designed to be a compact and durable edgebander offered at an affordable price. This machine is equipped with premilling, end trimming, flush trimming, corner rounding, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
-
Specs
Feeding speed|29 FPM
Panel thickness|0.315”~1.77”
Edge thickness|0.0158”~0.118”
Min. panel width|3 ¾”
Min. panel length|6.7”
Working table height|38”
Extension support width|22”
Dust collection outlet|Ø 5” x3
Electrical consumption|10.9 HP
Electrical|230/3/60 26 Full load amps
Machine weight|2024 lbs
MOTOR SPECIFICATIONS
Feeding motor|1.5kW
Pre-milling motors (2 pcs)|1.5kW each (12000RPM)
Glue spindle motor|0.25 kW
Front/rear trimming motor|0.22 kW (12000 RPM)
Upper trimming motor|0.37 kW (12000 RPM)
Lower trimming motor|0.37 kW (12000 RPM)
Corner rounding motor|0.37 kW (12000 RPM)
Upper buffing motor|0.12 kW (3000 RPM)
Lower buffing motor|0.12 kW (3000 RPM)
Pre-heating|0.4 kW

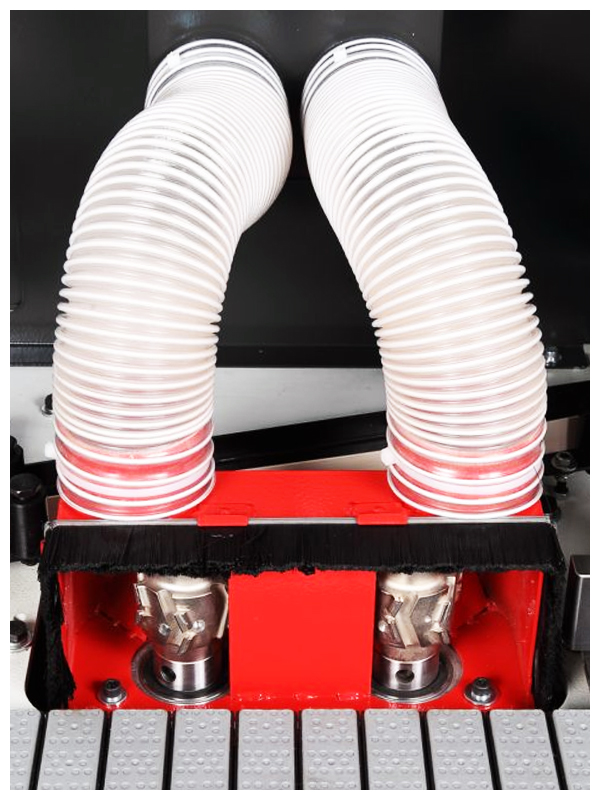

Glue pot|1.315 kW WORKING UNITS: PREMILLING UNIT
High-frequency pre-milling units can remove up to 3mm and are designed to provide an ideal edge for applying edge tape by cleaning up poorly cut panels.
(2) counter-rotating diamond cutterheads for optimum results and longevity.

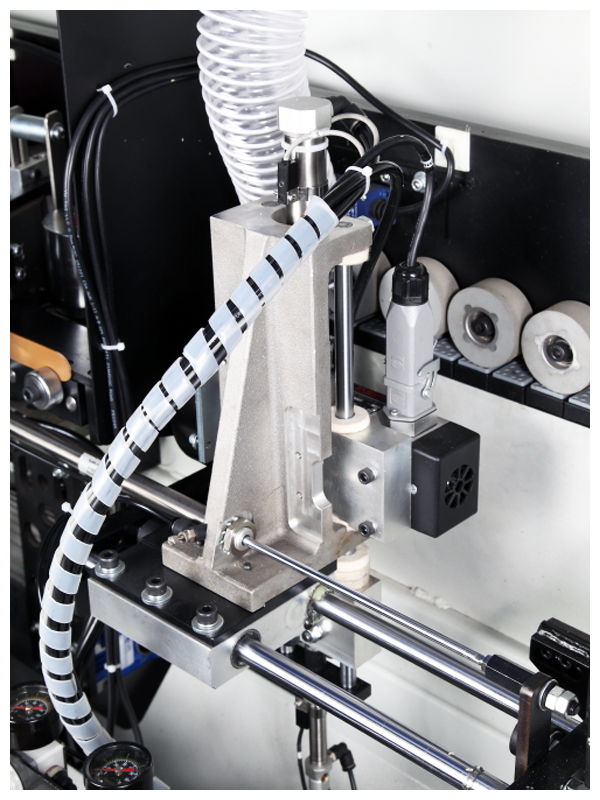

END TRIM
High frequency 12000 RPM end trimming unit, with Ø100mm (4”) TC-Saw blades.

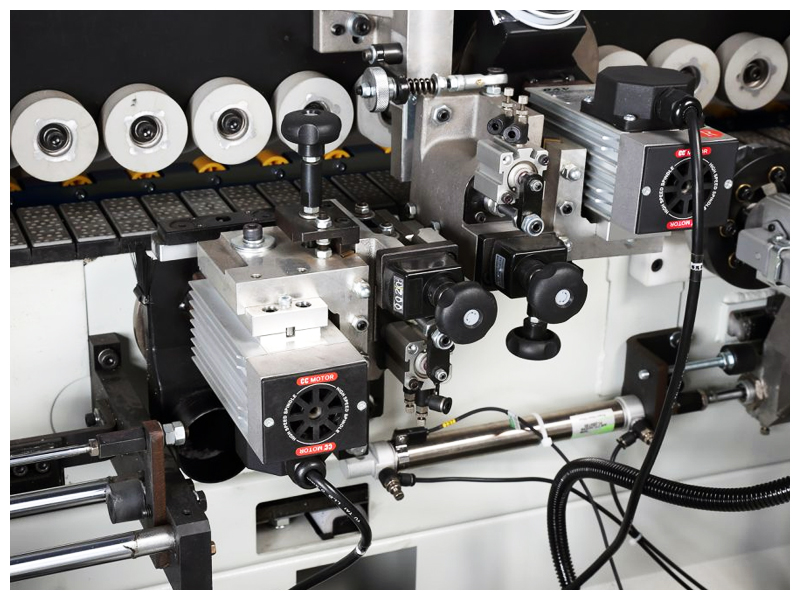

TOP & BOTTOM TRIM
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming.
CORNER ROUNDING
High-frequency corner rounding unit can process 0.4-3mm thick edgebanding by tracing the shape of the panel.

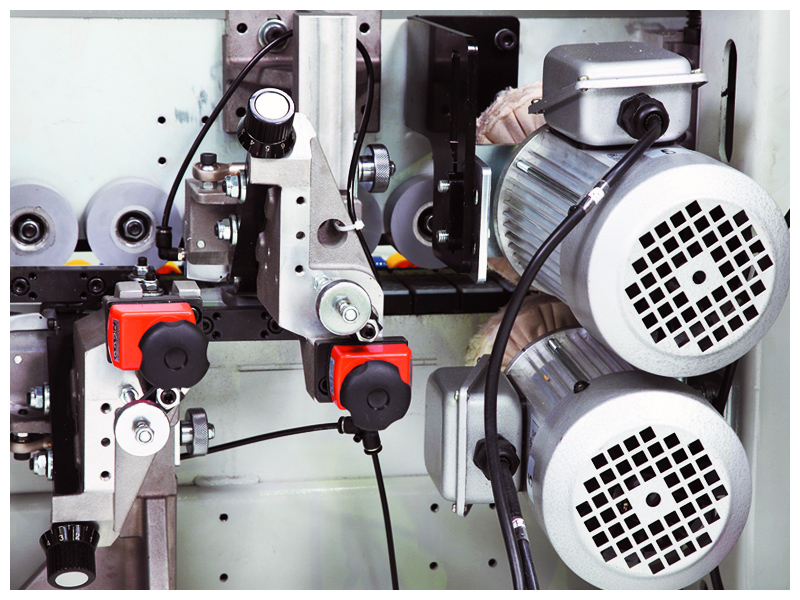

RADIUS SCRAPING
Radius scraper with 2mm radius.
BUFFING
3000 RPM top & bottom buffing units to polish the machined edge. -
