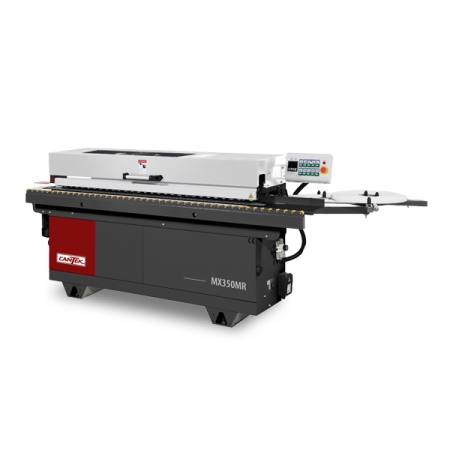

MX350MR | Cantek | Edgebanders

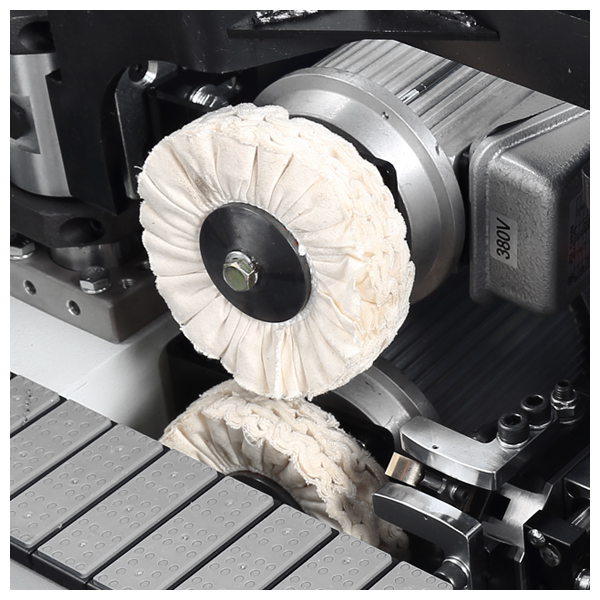

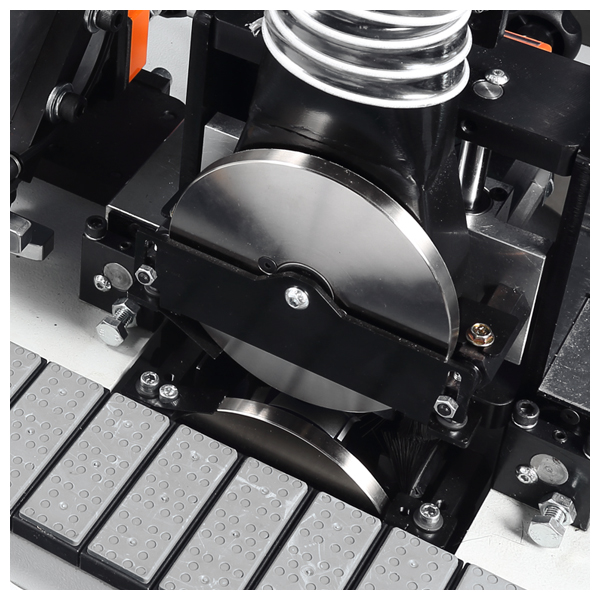

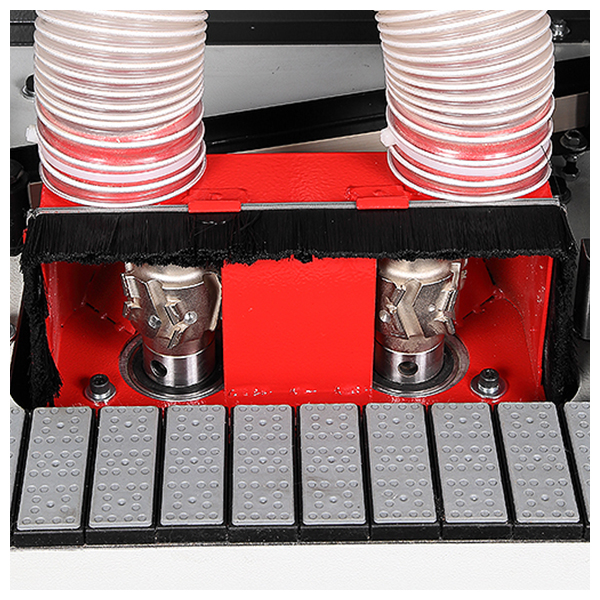

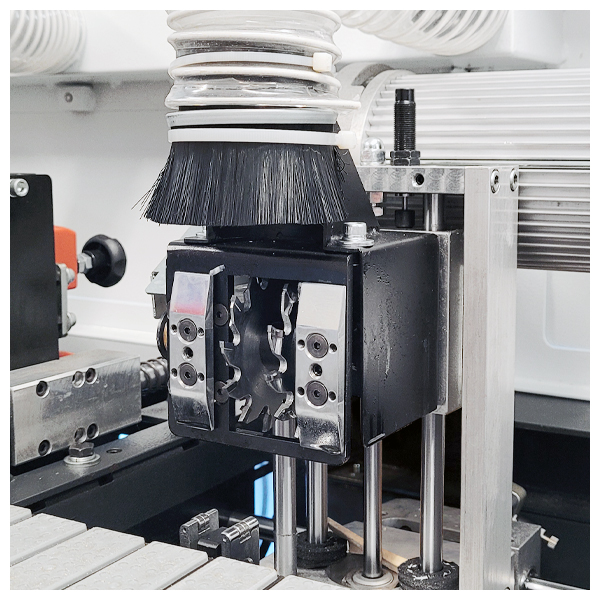

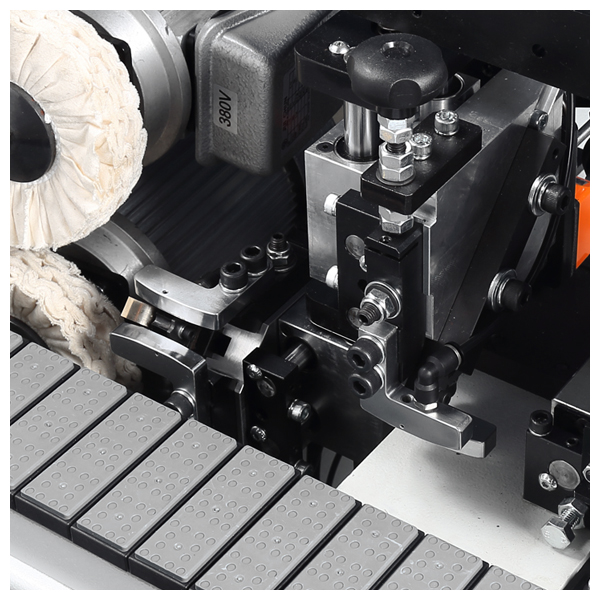

Compact edgebander with pre-milling for best-in-class results. The Cantek MX350MR Automatic Edgebander is an entry-level edgebander with pre-milling that is the perfect blend of quality and affordability. With fine attention to detail and quality componentry, the MX350MR can output high-quality edges on cabinet parts and more. The pre-milling diamond cutterheads machine the panel prior to applying the glue to ensure optimum edge quality prior to applying the edge tape. A special feature of this machine is the dual purpose end trim system which can either flush trim or radius trim the end of the panel. Additionally, the machine is equipped with flush trimming, PVC scraping, and buffing. User-friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
Key Advantages

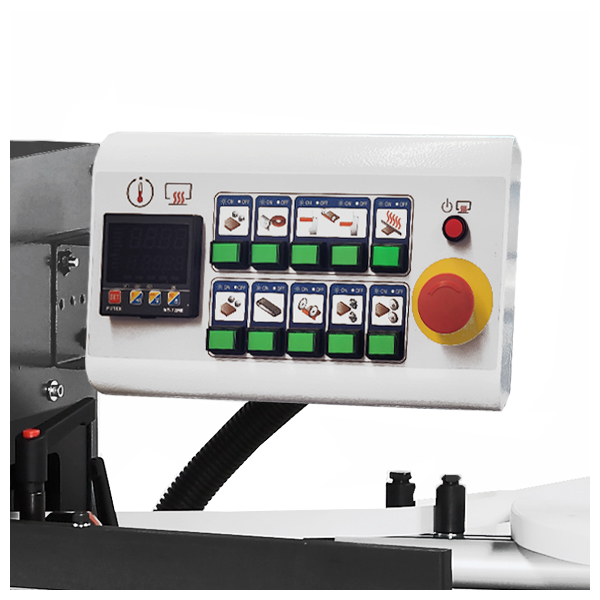

PLC control system with LED display and keypad

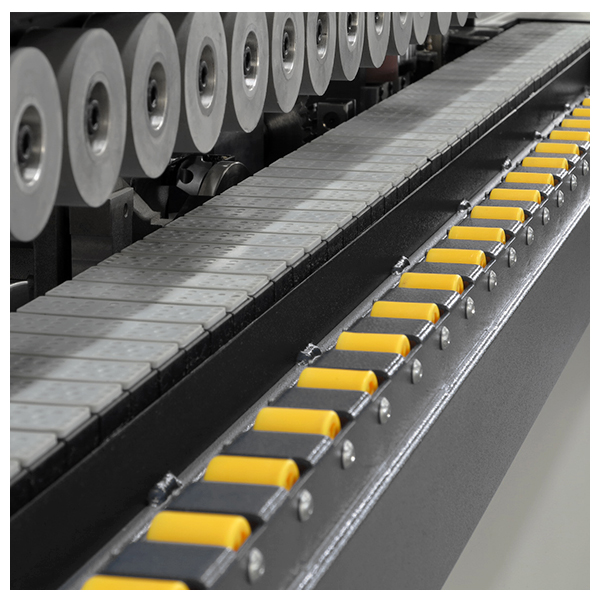

Workpiece is fed by chain

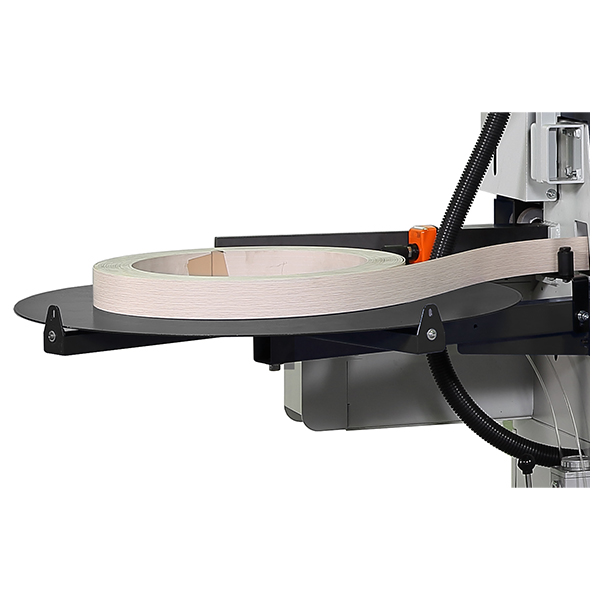

Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
Automatic edge feeding with a thickness capacity of 0.4-3 mm.

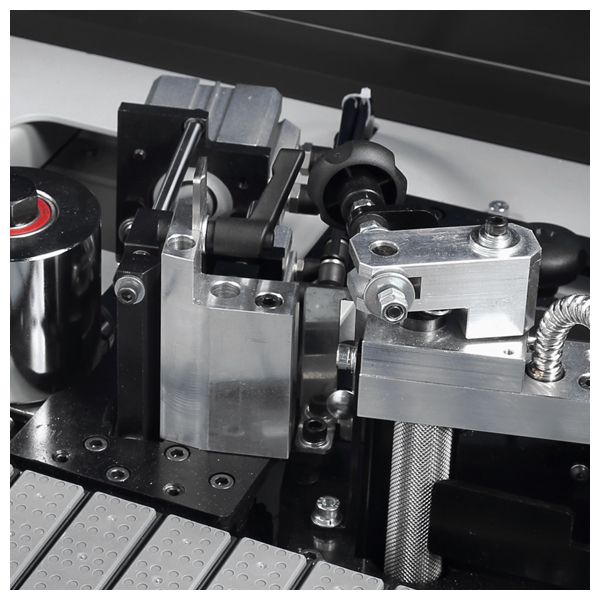

Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

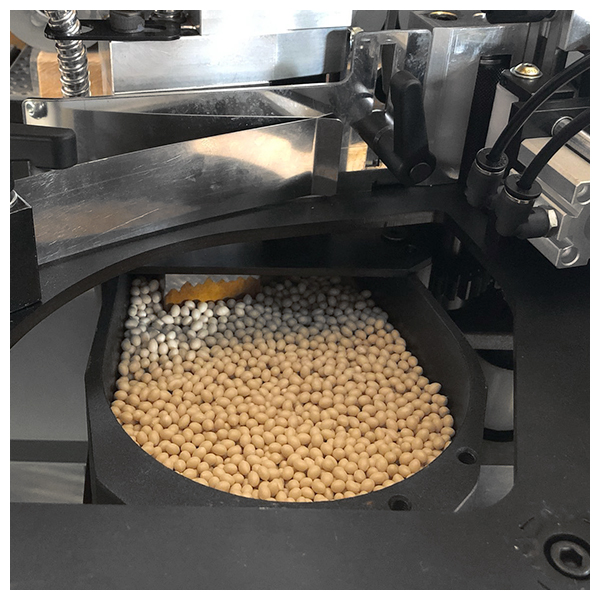

1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot

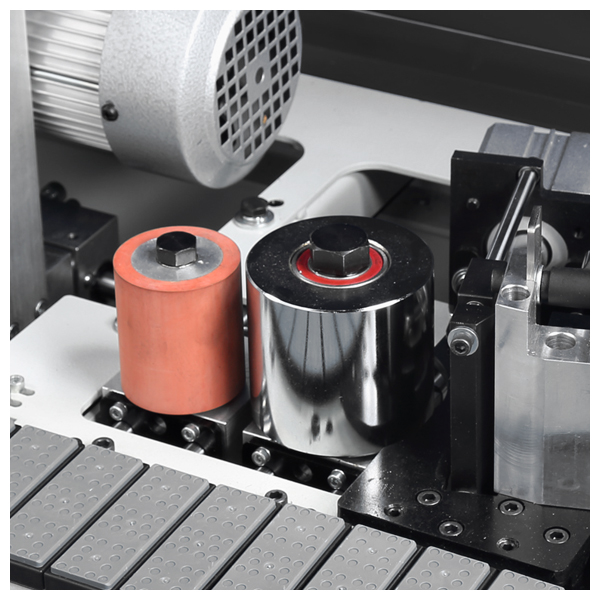

Spring-loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
Heavy-duty pressure beam with extendable workpiece support
Heated infeed fence for preheating the panel for optimum glue penetration
Mechanical digital readouts for convenient and quick adjustment to the working units & thickness
