ST | Razor Gage | Digital Measuring & Control

  • Power:
    110V
Request a Quote

  • Description

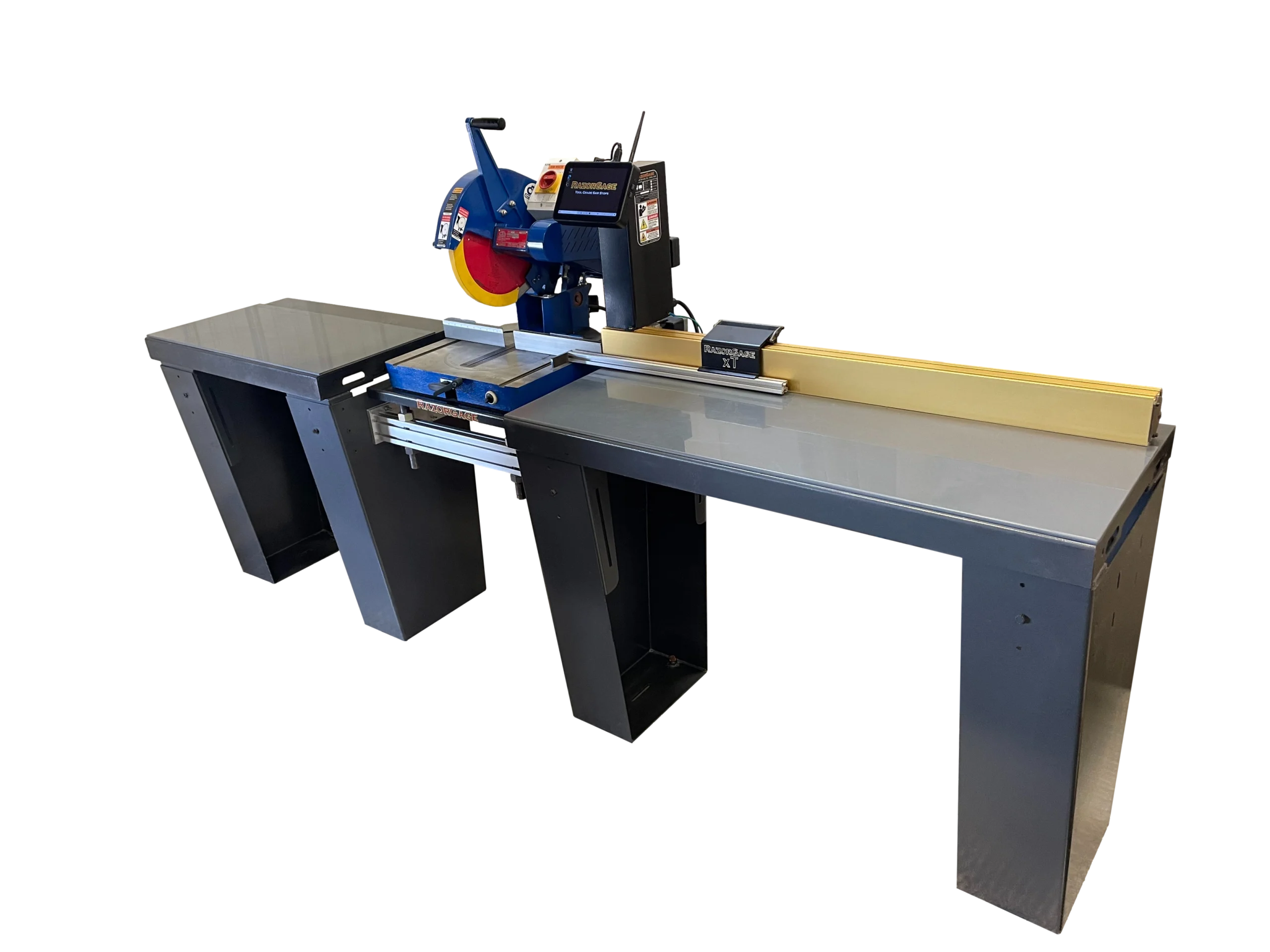

    The RazorGage RG3 Automatic Saw Measuring System is at the heart of our product line. Whether you use the RG3 as an automatic pusher or an automatic saw measuring stop, this digital miter saw stop and measuring fence can be used with a chop saw, automatic upcut saw, downcut saw, drill press, haunching, notching and punching machines. When looking to improve output and efficiency for your operations, the RazorGage RG3 Automatic Saw Measuring System offers the highest degree of accuracy, repeatability and long-lasting dependability.


    The RazorGage RG3 automatic positioner system features a high-performance motion controller that reacts quickly to jambs, eliminating stretched belts. Hence, the 5 year belt warranty.

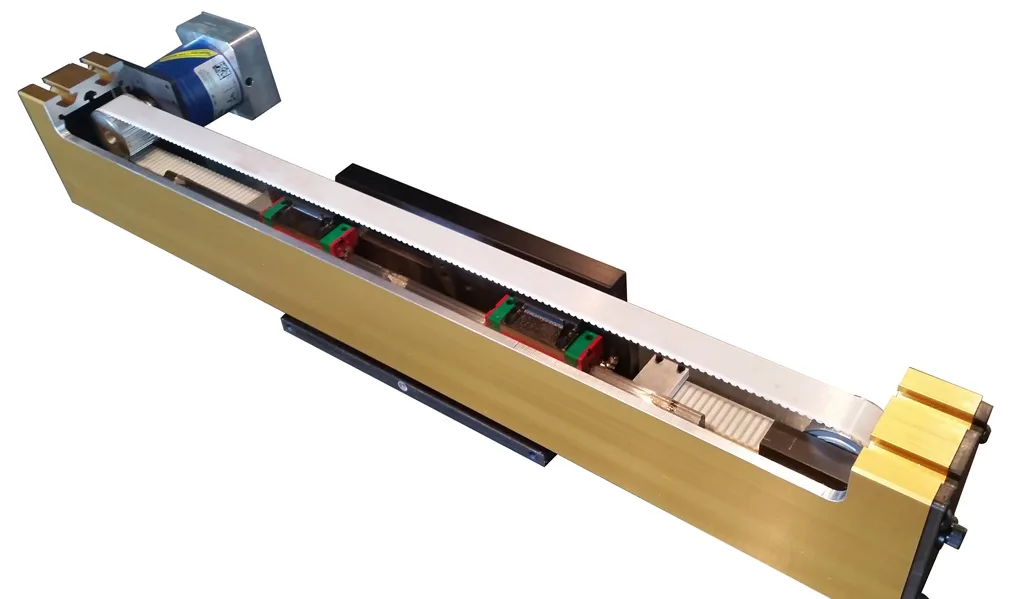

    The carriage assembly features a Hiwin hardened and ground linear bearing rail with two recirculating ball bearing blocks — just like you see on CNC machine tools and machining centers. This enables nearly friction-free motion, maximum rigidity, accuracy and long life. The RazorGage RG3 can be used for automatic chop saw measuring, or it may be installed for use alongside other types of saws and industrial woodworking tools.

  • Specs

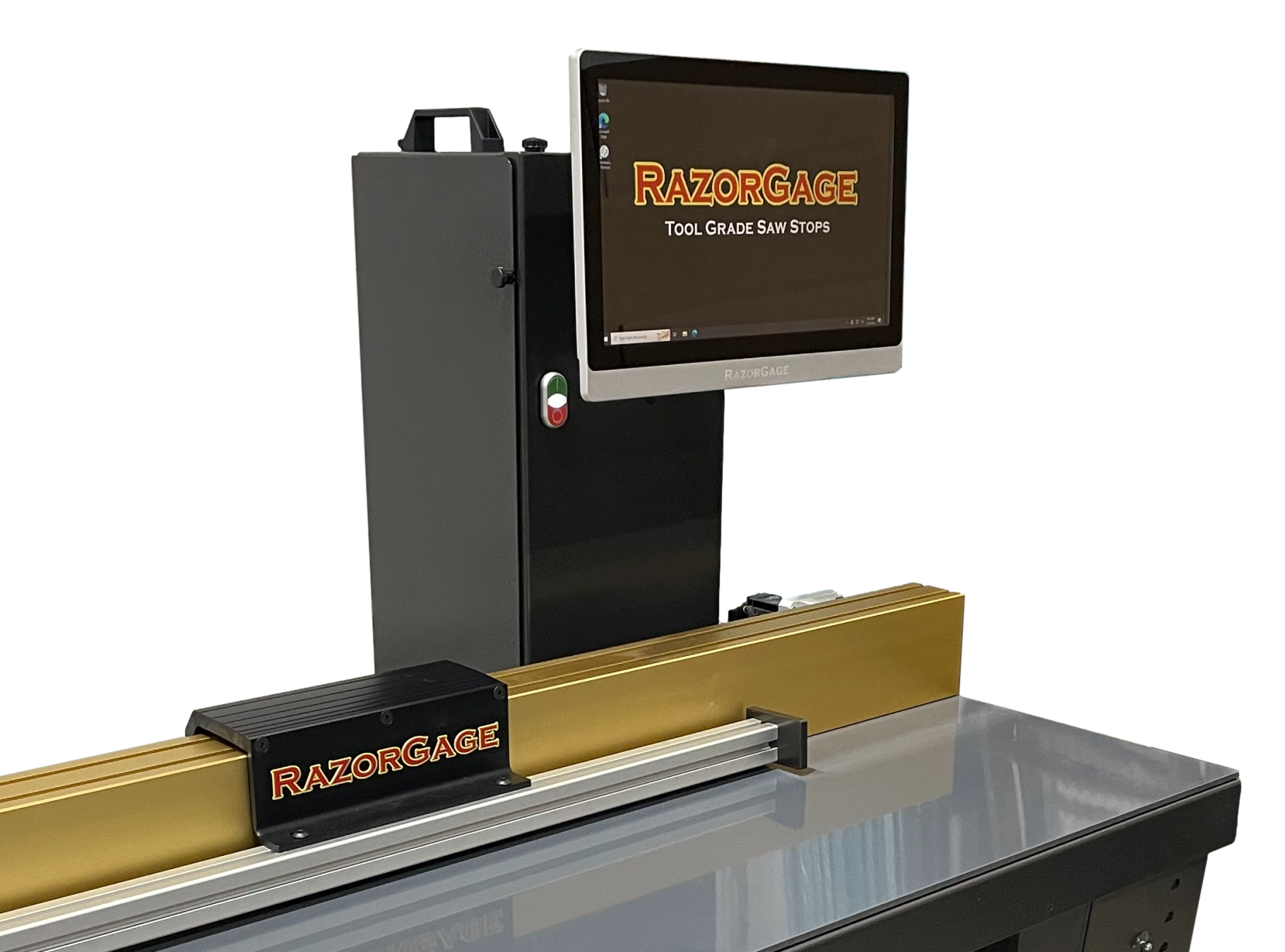

    •PC running the Windows 10 Professional OS with a hi-resolution touchscreen networks easily with other devices using ethernet or WiFi and has tons of features.

    •Optional Tower PC with a hi-resolution touchscreen and larger electrical enclosure for extra control components.

    •Store thousands of cutlists, sort cutlists into thousands of groups according to multiple criteria.

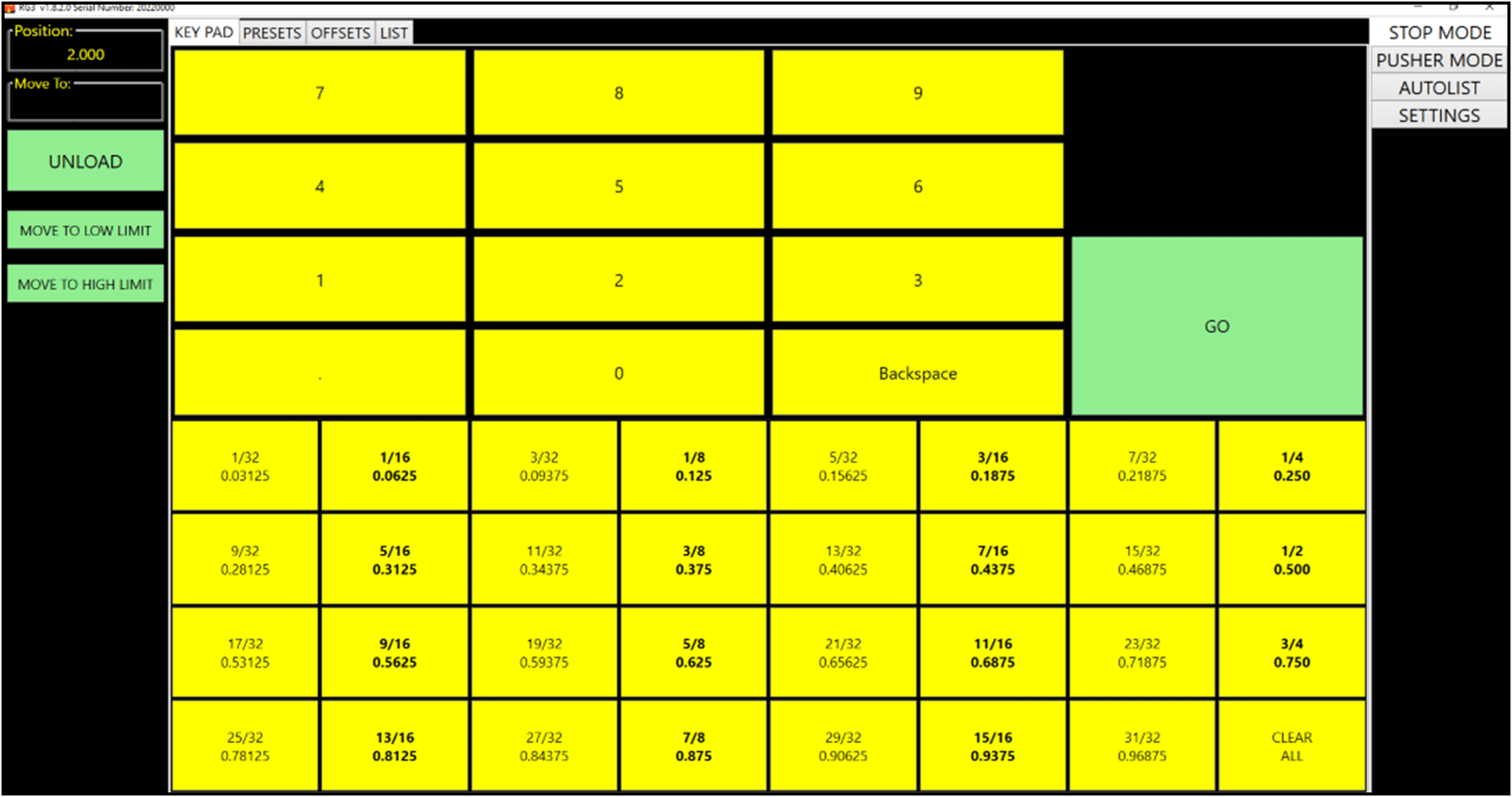

    •Fraction keys allow the user to adjust position in just a few keystrokes.

    •Optional optimizing software reduces waste material.

    •Print labels with text and a combination of any two special fields that can each contain barcodes, QR codes, or images.

    •Single Cutlist Mode allows synchronization with server databases.

    •Uses the same linear bearings found on CNC machine tools.

    •Near zero backlash planetary gearhead & drive pulley.

    •5 Year Belt Warranty.

    •Available in stroke lengths up to 60’.

  • Download

    RazorGage-ST-Brochure-2021-WEB

  • Download

    RazorGage-ST-Options-Spec-Sheet-2020
