Description

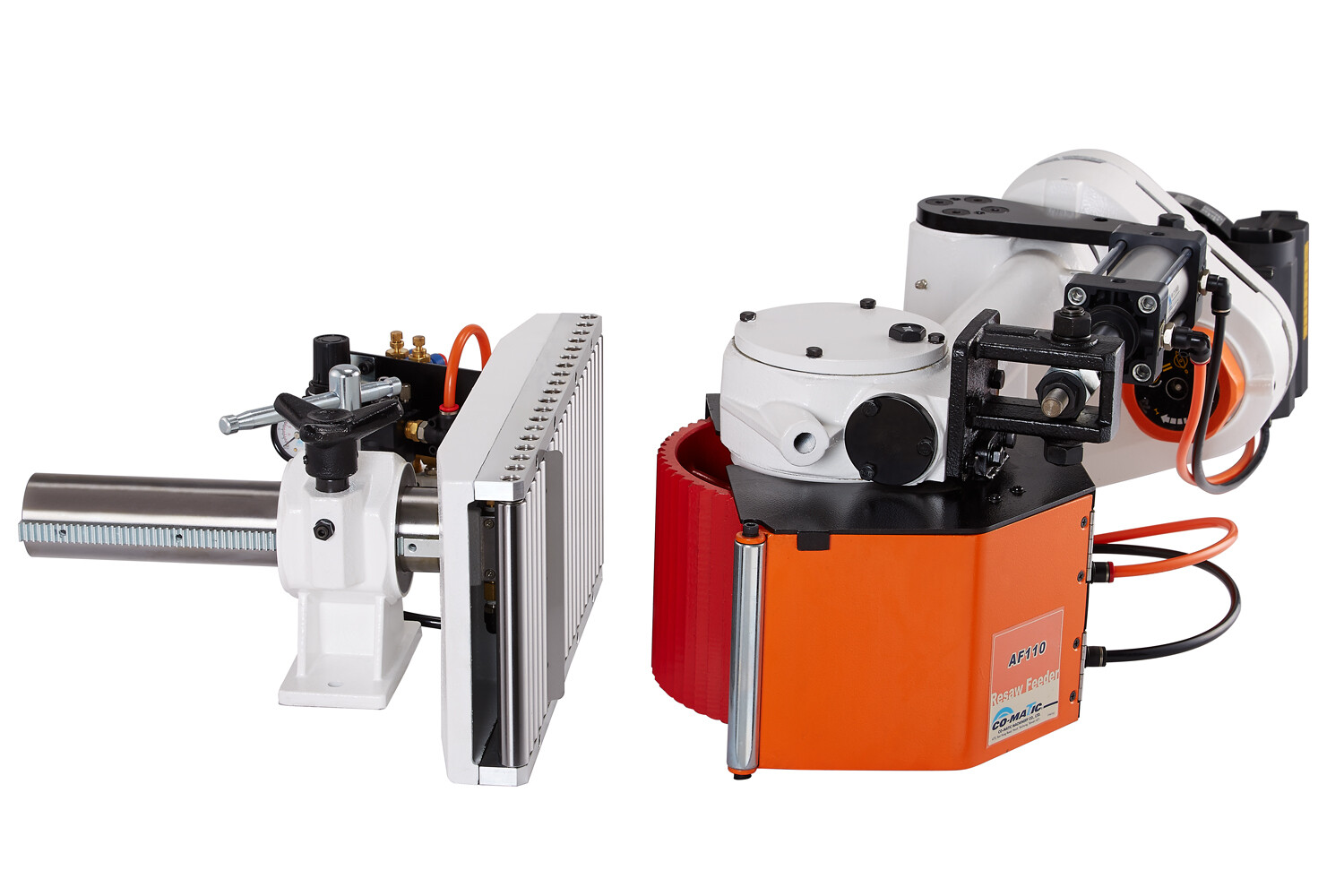

The AF110 Pneumatic Bandsaw Power Feeder is ideal for heavy duty resawing on a bandsaw. It’s pneumatic adjustment eliminates the need to readjust the feeder after multiple passes or changing widths/thicknesses which sets it apart compared to spring loaded feeders. Speed settings can easily be adjusted depending on your requirements. With speed settings ranging from 3.3 – 98.4FPM, the AF110 provides convenience and consistency for resaw feeding.
-
Specs
Your bandsaw table needs the following amount of space to mount the feeder on the front right (outfeed) corner of the table without adding an extension bracket:
1. 9.5″ is required from the tip of the blade to the end of the table on the outfeed side.
2. 12.15″ is required from the tip of the blade to the end of the table (opposite the fence).
This feeder can fit on smaller bandsaw tables, but may require an extension off the side of your bandsaw table where the feeder is mounted.
Variable Speed – 3.3 – 98.4 FPM
3/4 HP Motor
Max Roller/Blade Clearance – 9-1/4″
1 Cast Steel Roller: 9-7/16″ Dia. 6-3/16″ W (Polyurethane Roller available at additional cost)
Scaled Roller Fence Included
Height (w/Handle)|12-1/4″
Width|14-1/2″
Length Fully Extended|35-3/4″
Net Weight|225 lbs
Gross Weight|285 lbs
Max. Height of Rollers|6-3/16″”
Swing Rotation |30°
Max. Roller-Blade Clearance|9-1/4″
Fence Size|15-3/4″L x 7-7/8″
Max. Fence-Blade Clearance|8-1/4″
