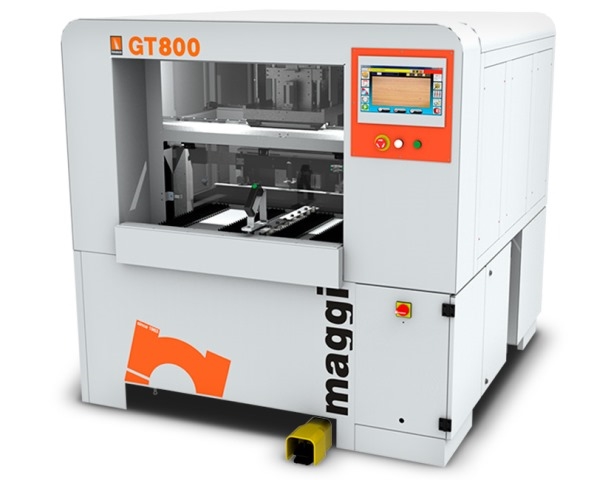

GT800 | Maggi | Boring Machines

  • Power:
    230V 3PH
  • Description

    Very simple and fast programming Extremely intuitive user interface
    Importable and text format exportable working programs
    Up to 1,000 programs can be stored
    Machines panels from above
    Suitable for drilling on face and sides of panels, including holes for dowels, hinges, KD Fittings and shelf holes

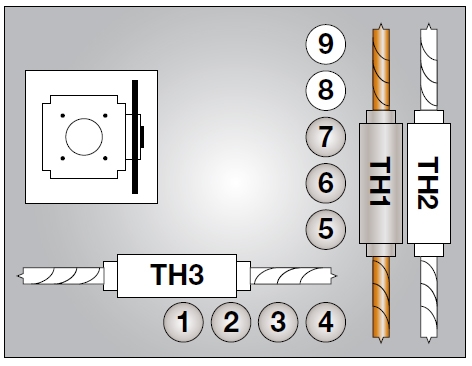

    (9) vertical spindles (6 in X axis and 4 in Y axis)
    Saw Blade Unit in X axis
    (2) 1 + 1 Horizontal Spindles in X axis
    (1) 1 + 1 Horizontal Spindle in Y axis
    Spindles rotations speed: 3,400 RPM
    Axis speed 25 meters/min | 82 feet/min
    Panel End Edge Reader for perfect panel assembly
    Max. panel dims: Y – 800 mm (31.5″), X – Unlimited, Z – 50 mm (2″)
    Min. panel dims: Y – 100 mm (3.93″), X – 250 mm (9.84″), Z – 10 mm
    Boring Capacity 0 to 800 mm (31.5″) with any spindle
    Ability to execute all drilling operations in a single working cycle
    CNC programming with 12″ touchscreen
    Automatic panel cleaning with brushes
    Teleservice software

  • Specs

    •Voltage: 230V 3-Phase

    •Total Power: 2.5 kW

    •Air Pressure: 6 Bar

    •Dust Collection: 1200 CFM Minimum

    •Dimensions: 68″ W x 72″ D x 68″ T

    •Weight: 2,205 lbs.
