Description

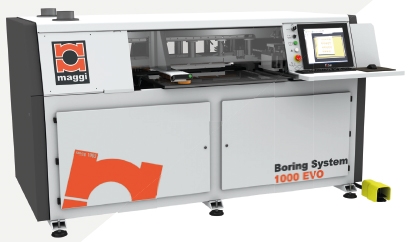

The Maggi 1000 EVO is a CNC Boring Machine that processes the panel from underneath.
It is capable of routing, boring both vertically and horizontally and is equipped with a Grooving Saw.MAIN FEATURES
· Easy to use software interface
· Zero set-up time
· Icon based system and step-by-step data entry, cut lists, macros and parametric
programming.
· Capable of direct import of most common 3D and 2D CAD files
· File converter included for 2D CAD Files (.dxf and .dwg)
· Horizontal concept – through-feed working process or can be returned back to the
operator
· CNC programmable machining – all working operations in one cycle
· Teleservice software
· Small footprint
· Easy maintenance
· Low power consumption
HARDWARE & SOFTWARE

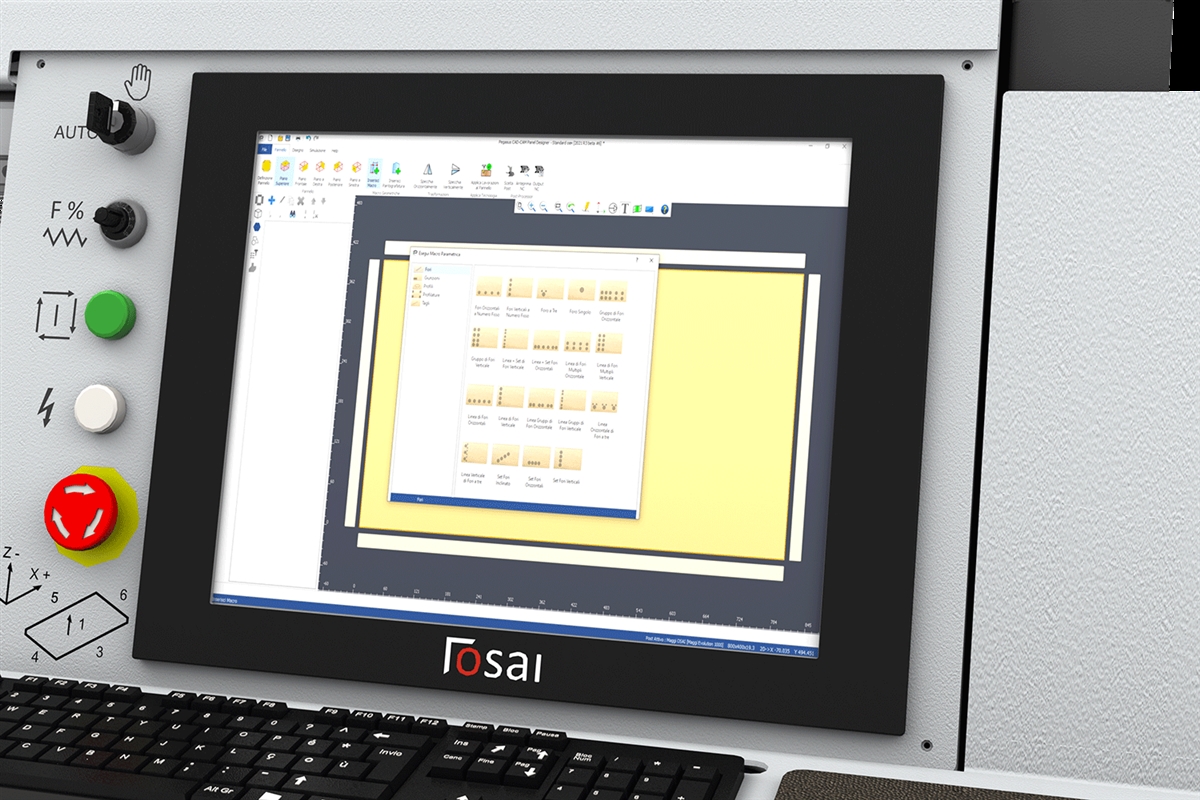

· OSAI OPEN LIGHT CNC system for job programming and remote connection
· PEGASUS PRO 3D Design Software
· INDUSTRIAL PC, Win10 IoTE 64 bit, 128 GB program memory
· CPU Intel Celeron J1900 – 4 GB RAM
· 17″ LED industrial screen
· USB and Ethernet port
TECHNICAL DETAILS

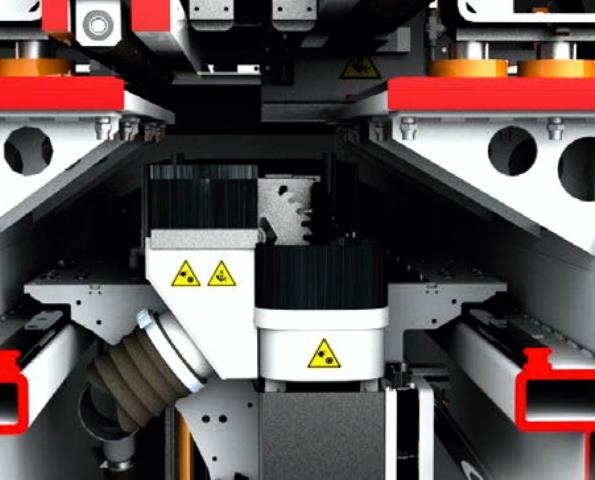

· 3.6 kW HSK32 18,000 RPM Electrospindle Router

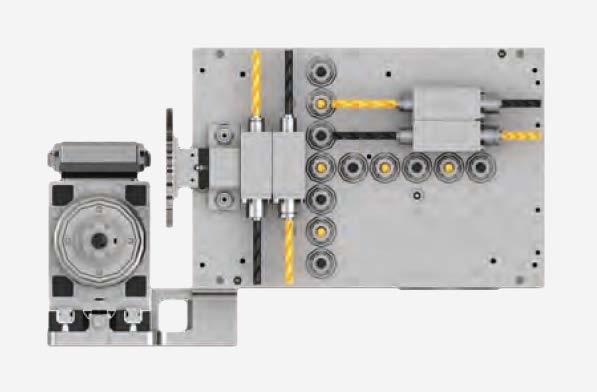

· (12) Vertical drills, (1) Grooving Saw and (4) Horizontal drills in the X-axis and (2)
in the Y-axis
· Max. boring depth: 60 mm
· Grooving Saw with 120 mm diameter and 4.3 mm kerf

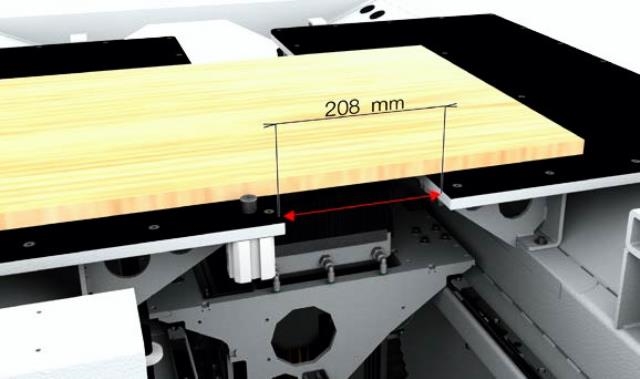

· Minimum Panel Size: 300 mm (11.81″) x 75 mm (3″) x 8 mm (.31″) thick
· Maximum Panel Size: Infinite x 1000 mm (39.36″) x 60 mm (2.4″) thick

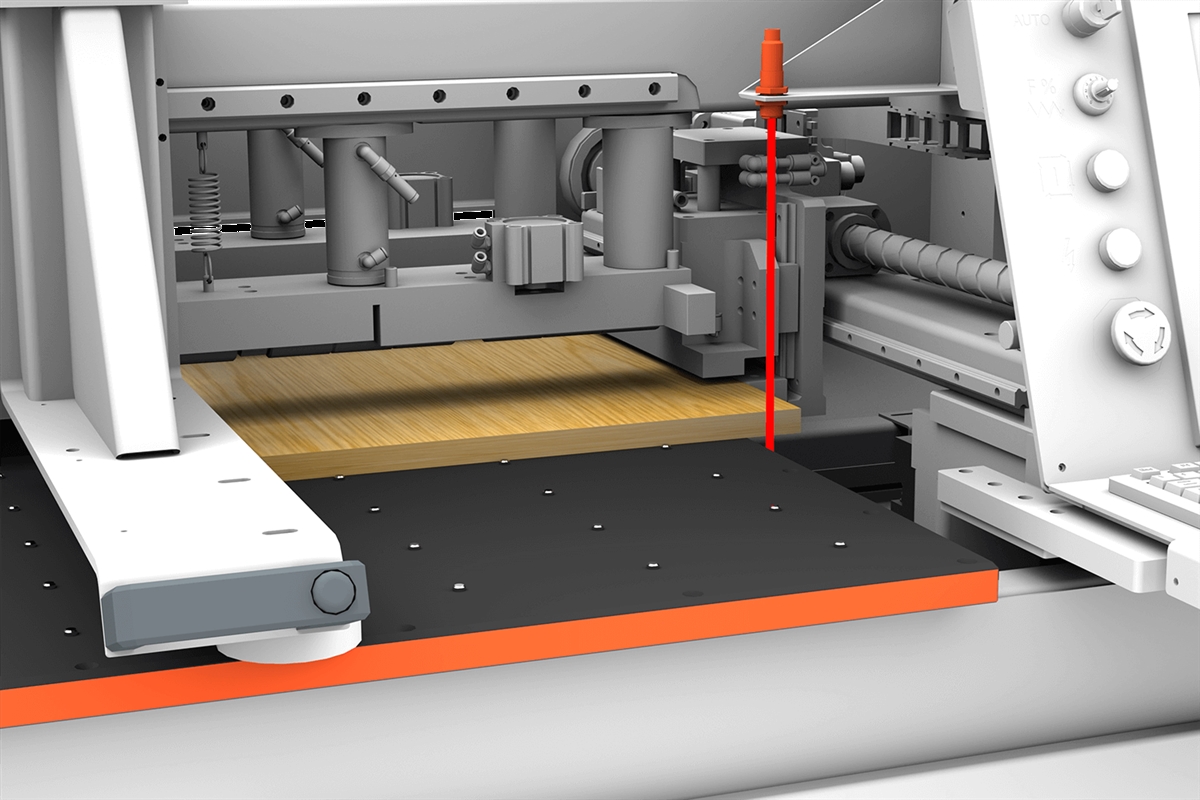

· A laser measuring tool is included to determine the dimensions of the panel and
to reset the boring process according to the real length of the panel itself so there
is accurate panel assembly
· Automatic Lubrication of Y and Z axis
· The entire head unit is moved via ball screws and controlled by brushless servo
motors with automatic timed lubrication
· High precision manual side aligner that slides on ball bearings
· A panel hold down presser ensures the panel is perfectly flat to provide accurate
assembly

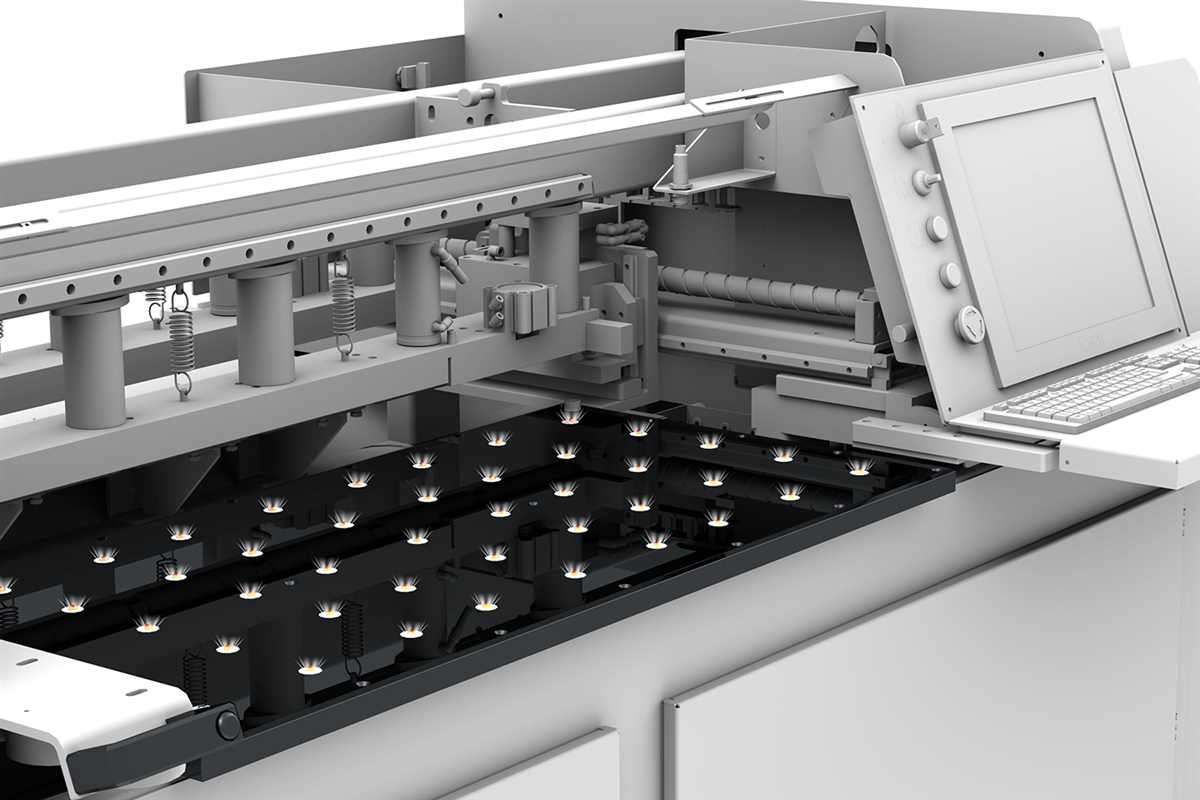

· Air flotation machine surface front and back makes handling the panel easy
· Folding idle roller table on front of machine
· INCLUDES a starter tooling package (Drill bits and Grooving Saw Blade)
TECHNICAL SPECIFICATIONS:
· Dust collection: (2) 120 mm ports on top and (1) 80 mm on the left side
· Machine footprint: 105″ x 62″ x 57″ tall
· Weight: 3,780 lbs -
