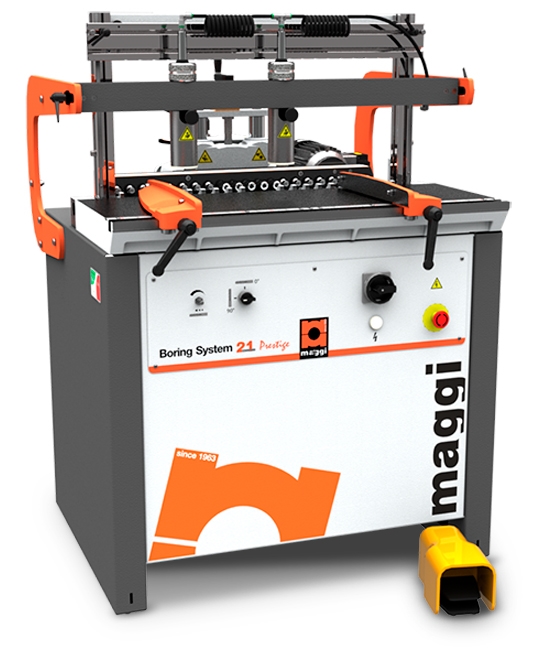

SYSTEM 21 | Maggi | Boring Machines

  • Power:
    2HP 230V 3PH
Request a Quote

  • Description

    The Maggi System 21 Prestige Boring Machine provides a 21 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.

  • Specs

    •Accurate positioning of the boring unit to the table with digital readout.

    •3-Phase Option. Single Phase also available.

    •0 to 2.5″ adjustable drilling depth with patented spiral setting device.

    •(2) patented quick release material clamps with auto-setting to firmly hold material to table

    •Powerful 2 HP motor

    •34″ x 13″ cast iron table.

    •Cast iron side fences with ruler and magnifying glass.

    •Mirror imaging device to ensure quick and accurate set-up of the side fences.

    •120″ line boring fence with (2) stops

    •Foot actuated pneumatic clamps and drill cycle.

    •Uses 10 Left Hand (red/orange) and 11 Right Hand (black) boring bits

    •Includes: Magnetic starter with overload protection and (21) quick change chucks.

    •Dust Outlet: 3″; Net weight: 605 lbs; •Dimensions: 40.5″ x 40.5″ x 50″ Tall;

    •Crated Dimensions: 44″ x 38″ x 42″ Tall; Crated •Weight: 640 lbs

    •Made in Italy.

  • Download

    Brochure_Maggi_Boring_21_prestige
