SYSTEM 23 | Maggi | Boring Machines

  • Power:
    2HP 230V 3PH
Request a Quote

  • Description

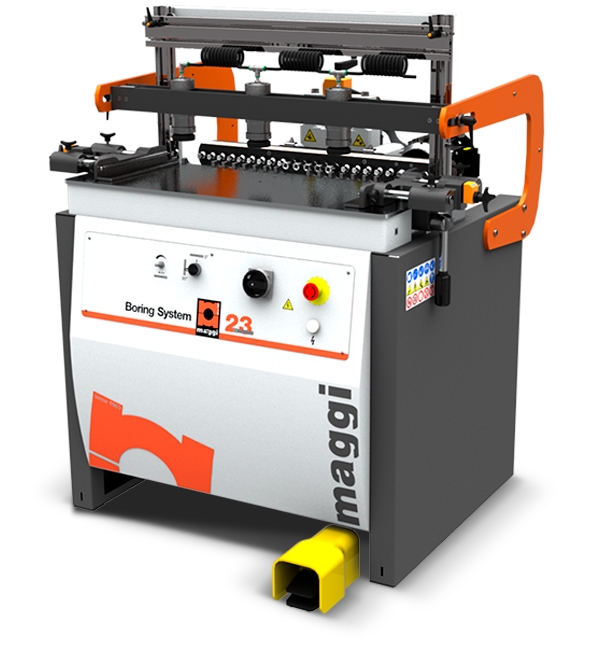

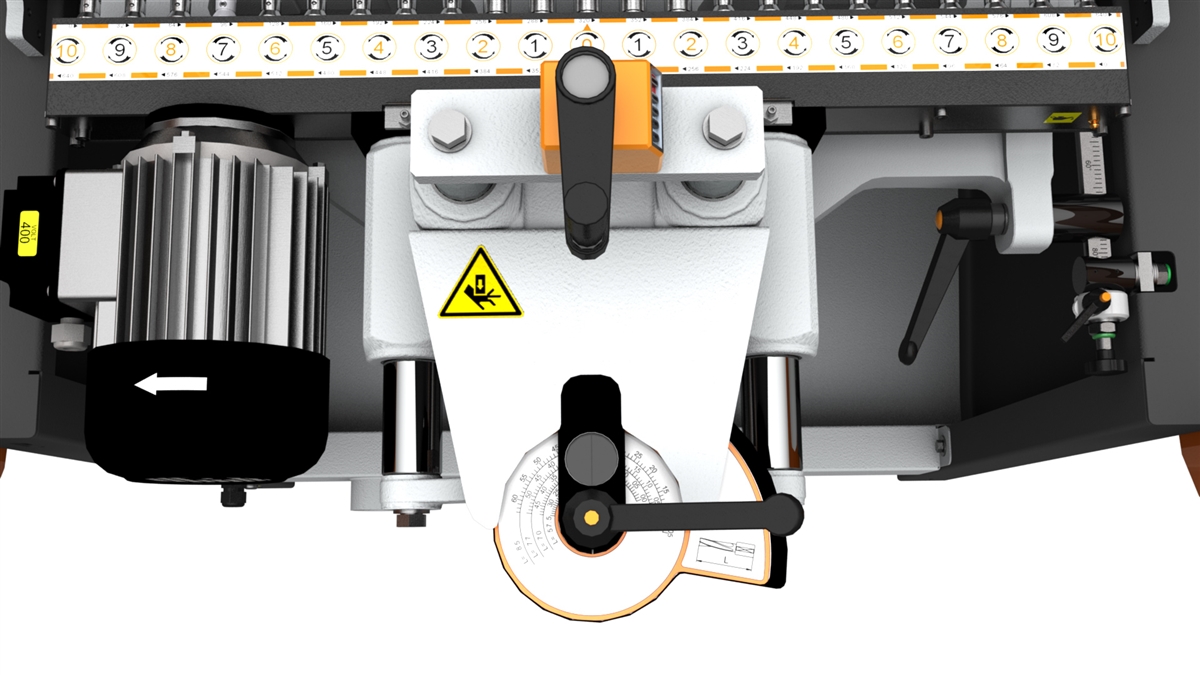

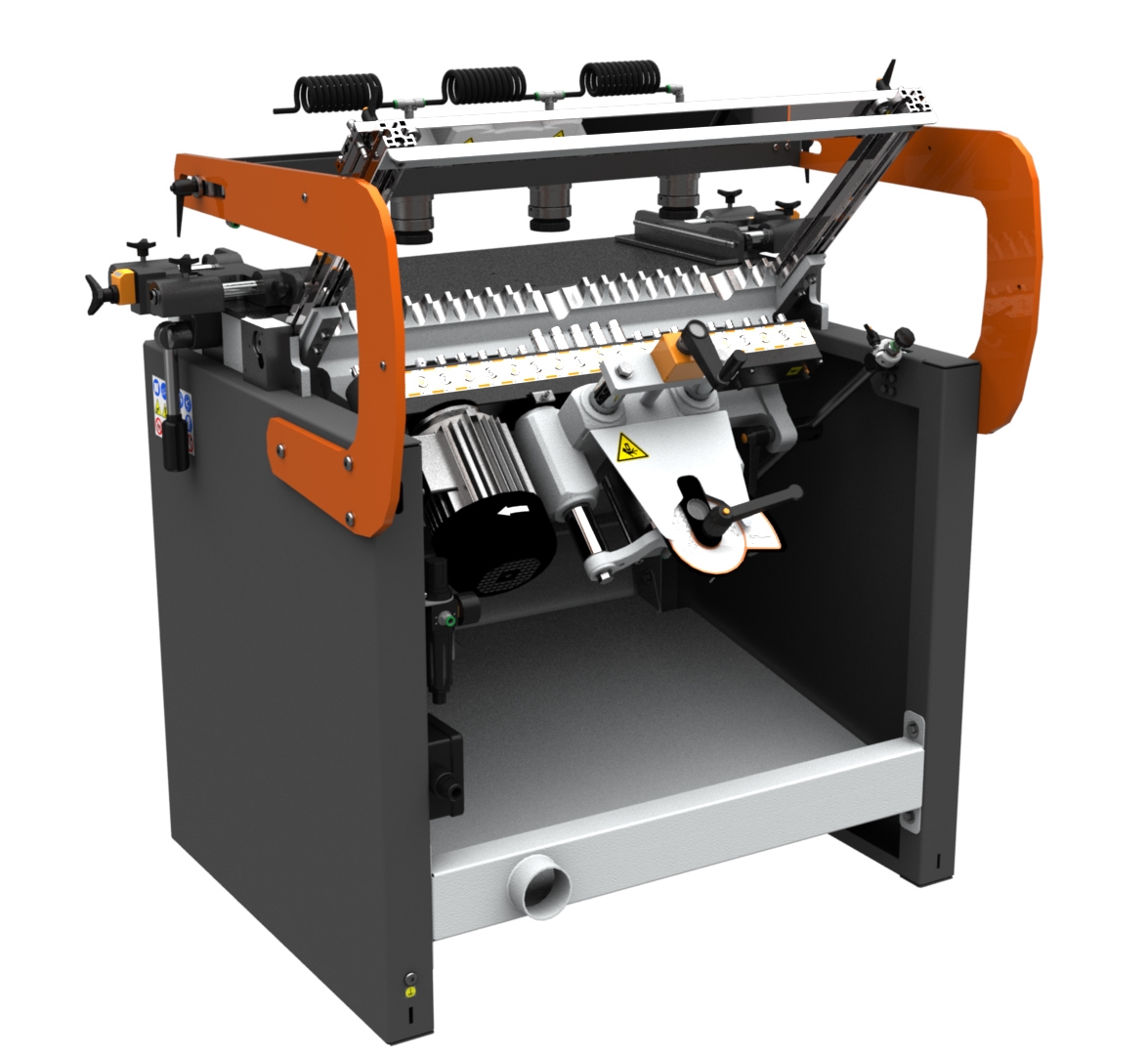

    The Maggi System 23 Boring Machine provides a 23 spindle 32 mm universal drilling solution, with horizontal and vertical boring capabilities and pneumatic tilting of the boring unit with locking points from 0 to 90 degrees for quick set-up at any angle.

  • Specs

    •Accurate positioning of the boring unit to the table with digital readout.

    •0 to 2.5″ adjustable drilling depth with patented spiral setting device.

    •(2) patented quick release material clamps with auto-setting to firmly hold material to table.

    •Powerful 2 HP motor.

    •37″ x 13″ cast iron table.

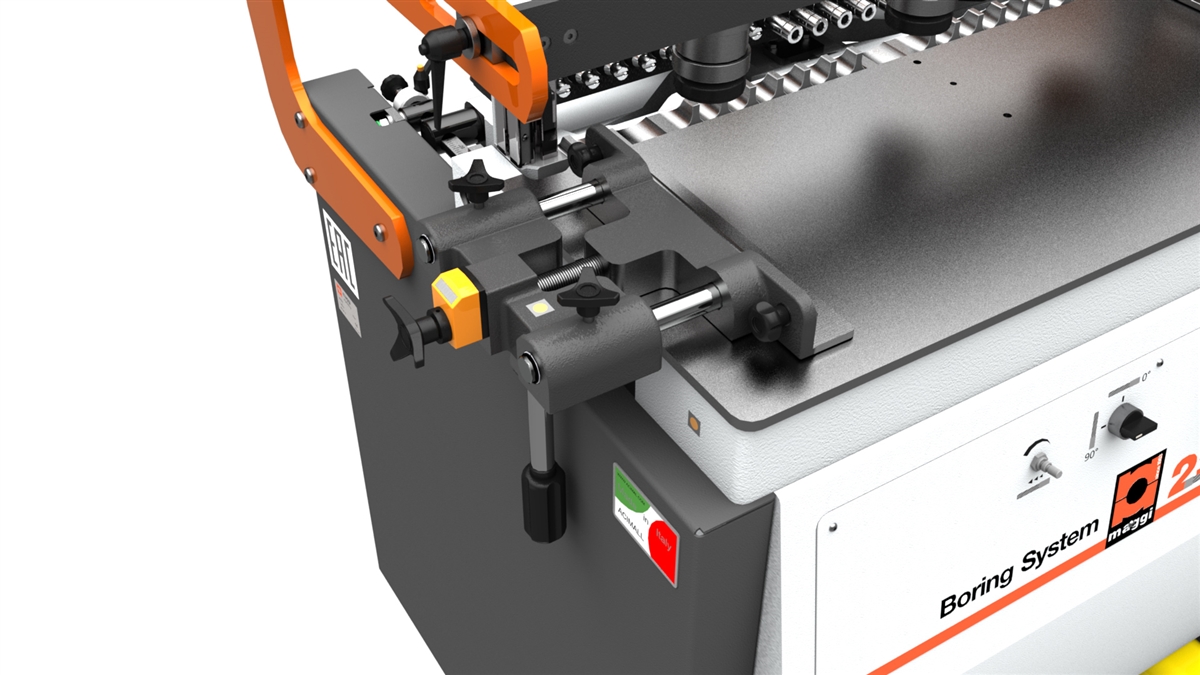

    •Side fences with mechanical digital readout for quick and accurate setting.

    •120″ line boring fence with (4) stops.

    •Foot actuated pneumatic clamps and drill cycle.

    •Uses 11 Left Hand (red/orange) and 12 Right Hand (black) boring bits

    •Includes: Magnetic Starter with overload protection and (23) quick change chucks.

    •Dust Outlet: 3″

    •Voltage: 230V 3-Phase

    •Net weight: 630 lbs.

    •Dimensions: 51.7″ x 37.8″ x 50″ Tall.

    •Crated Dimensions: 44″ x 38″ x 42″ Tall.

    •Crated Weight: 664 lbs.

  • Download

    Brochure_Boring_System23
