C-1205 HSK | PMK | Coping Machines

  • Power:
    7.5HP 230/460V 3PH
Request a Quote

  • Description

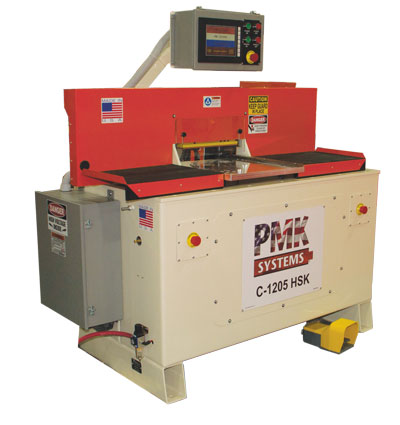

    The C-1205 HSK is PMK’s most innovative coping and end-matching machine featuring quick change spindles and an 8″ touch screen monitor.  The machine is used by cabinet door manufacturers, architectural millworks and high end cabinet door companies.  It is perfect for doing wide plank flooring, re-claimed lumber, and interior and exterior doors. The C-1205 HSK is used for manufacturing products 3/4 inch thick and larger for our residential and commercial customers.

  • Specs

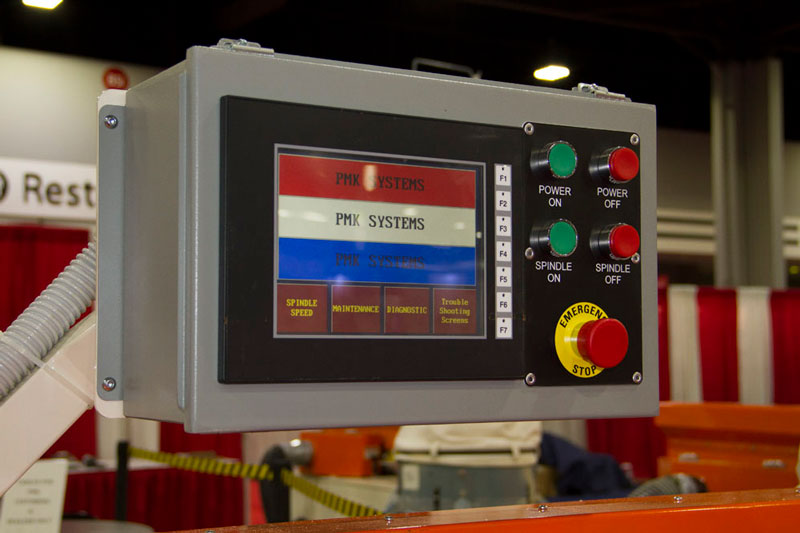

    •PMK Custom C-1205 HSK/PLC features quick change spindles with 8″ touch screen monitor

    •30 seconds or less tooling change capability

    •(2) HSK Direct Drive spindles, 1 1/4″ Diameter, rotating 6,000-9,000 RPM, controlled by PLC & Touch screen monitor

    •(2) 7 1/2, 3 Phase, 230/460 volt motors (please specify your voltage)

    •Tool holder / Milling arbor 1.25″

    •Length of spindle 55mm, 2.165″

    •UNLIMITED LENGTH OF PART

    •Small footprint – 71″ wide x 39″ deep x 53″ high

    •Machine weight 2,239 lbs. (+/-)
