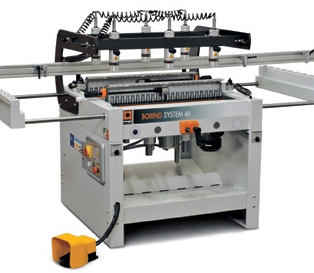

SYSTEM 46 | Maggi | Boring Machines

  • Power:
    2-2HP 230V 3PH
Request a Quote

  • Description

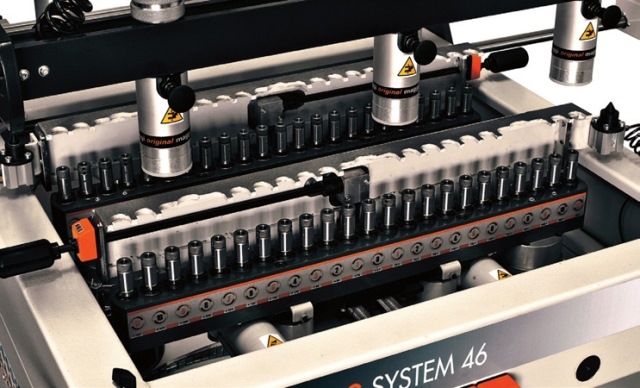

    The Maggi System 46 Boring Machine provides (2) 23-spindle heads on 32 mm centers; distance between first and last spindle center of each head is 27-23/32″ (704 mm).

    If you are making closets you may need the Hydraulic Brake for thru drilling. Please call for price of the part, and installation if needed.

    Accessory for thru drilling: hydraulic brake to control head movement speed

    One required for each head.

  • Specs

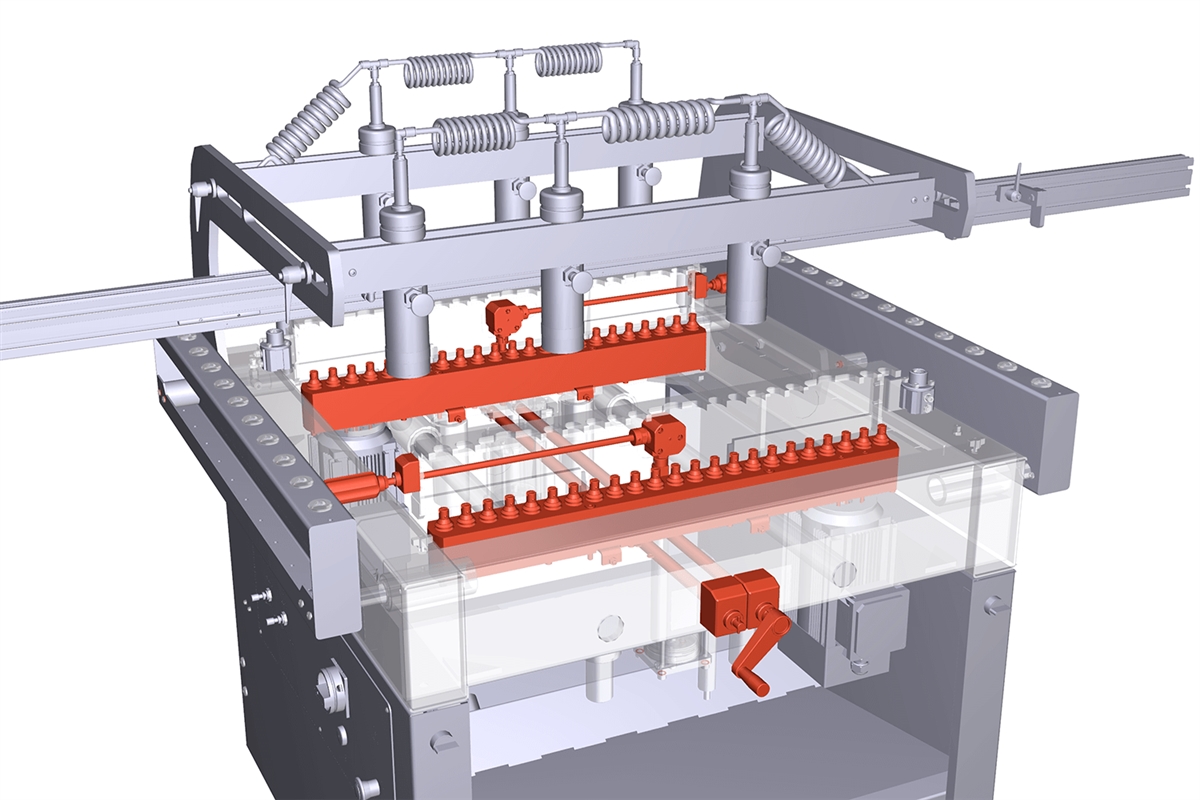

    •Front end adjustment for quick and easy set-up.
    •(2) 2 HP 3,500 RPM motors
    •Boring depth is 2-1/16″ (55 mm).

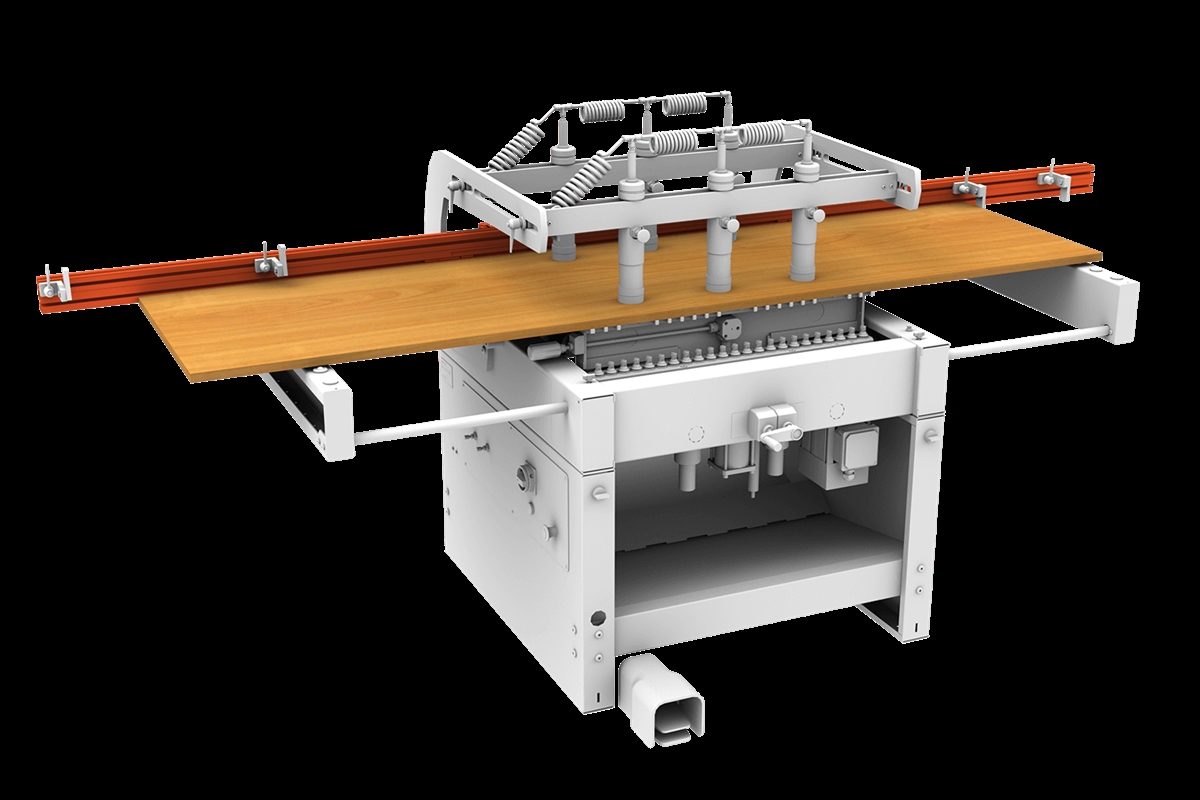

    •Side depth counter system; extractable 400 mm support rollers for long panels.
    •Maximum distance between heads is 25-19/32″ (650 mm) and minimum width is 5-1/8″ (130 mm).
    •Complete with: 46 quick change chucks, 10′ extension fence with (4) flip-stops and (2) pneumatic reference pins; (6) patented safety clamps.
    •This machine can be used for single or double row line drilling.
    •Uses 24 LH (red) and 22 RH (black) boring bits.
    •Working air pressure 94 psi.
    •Voltage: 230V 3-Phase
    •Net weight: 820 lbs.; Crated weight: 940 lbs.

  • Download

    MaggiSystem46Brochure
