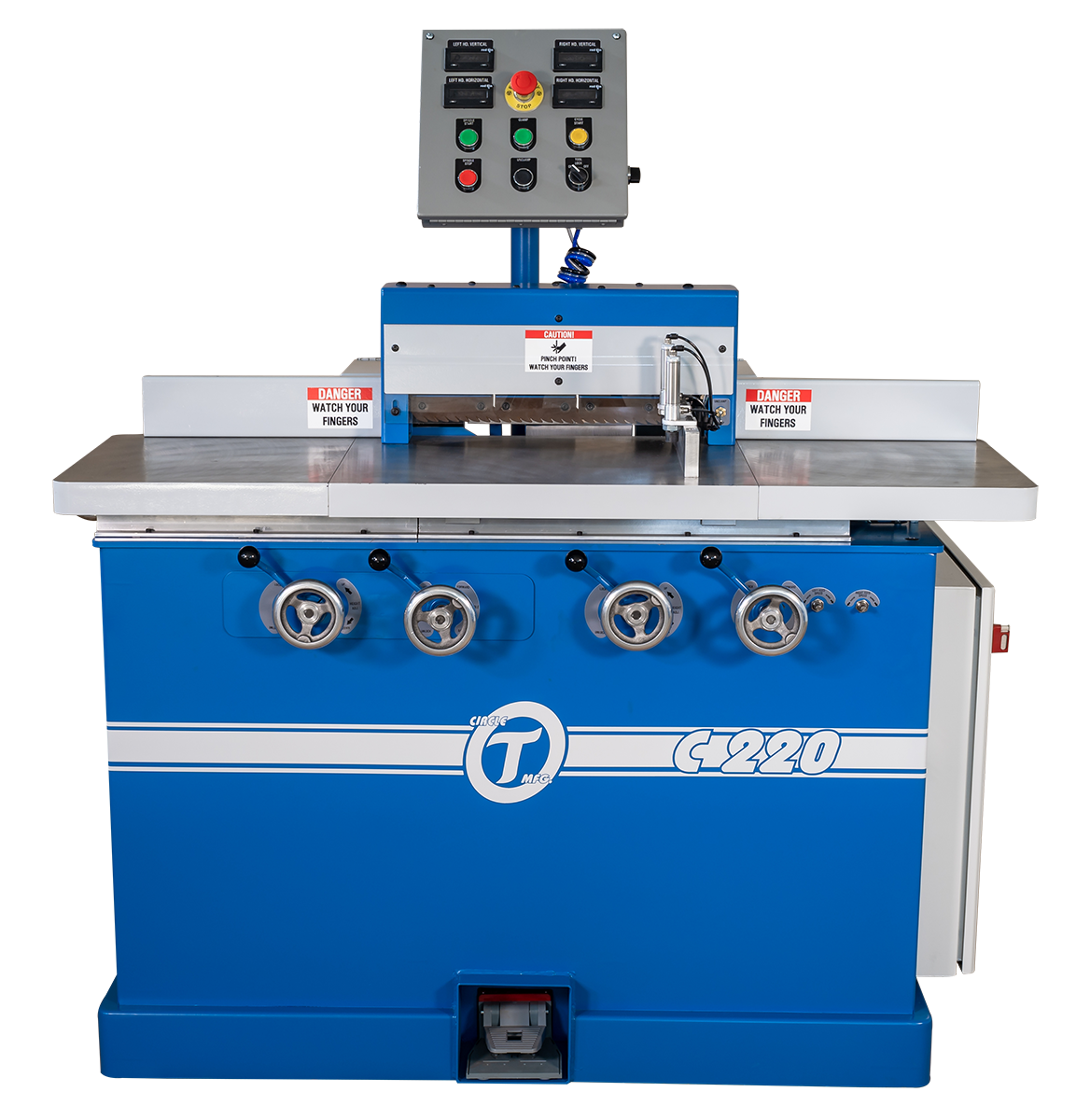

Description

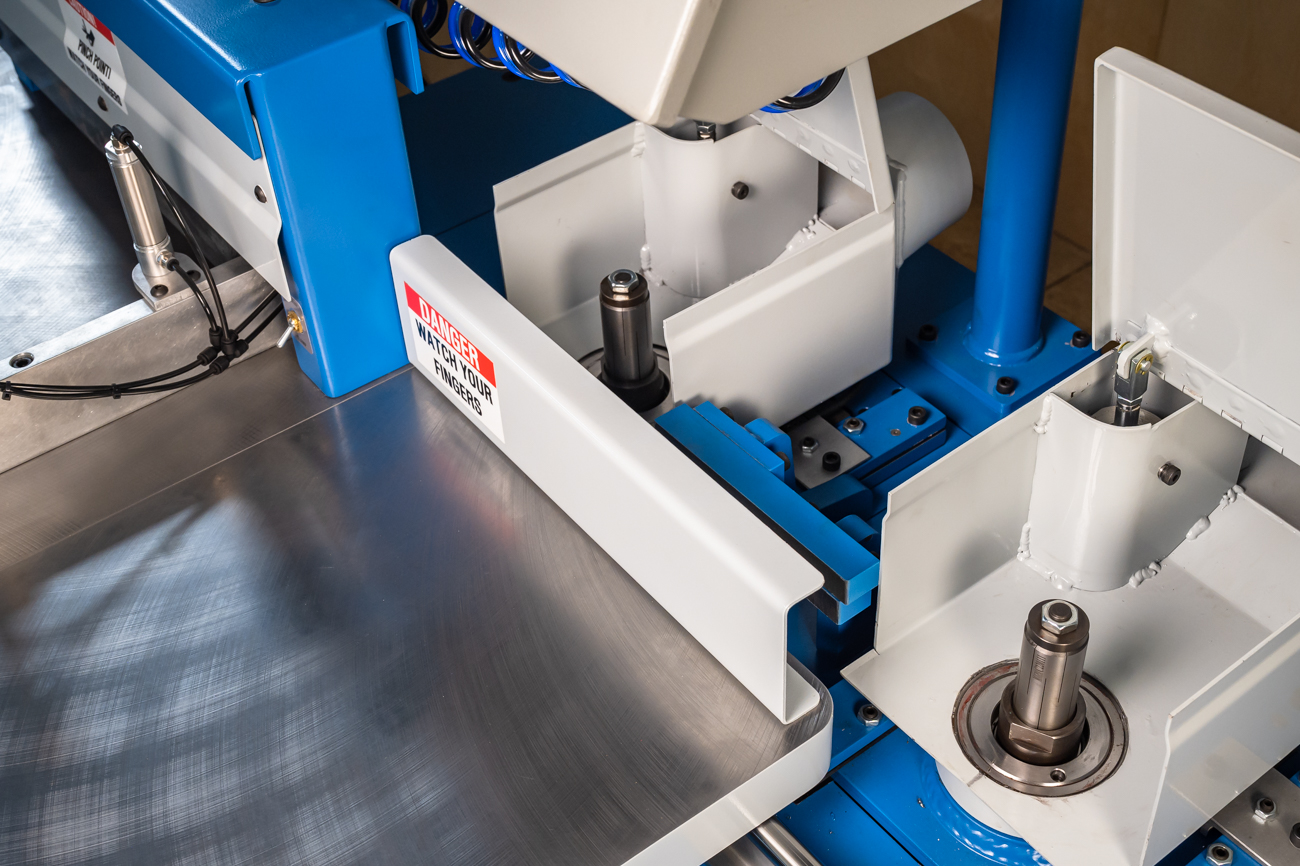

•TWO EASY QUICK-CHANGE
SPINDLES
•EASY Foot Pedal Cycle Start

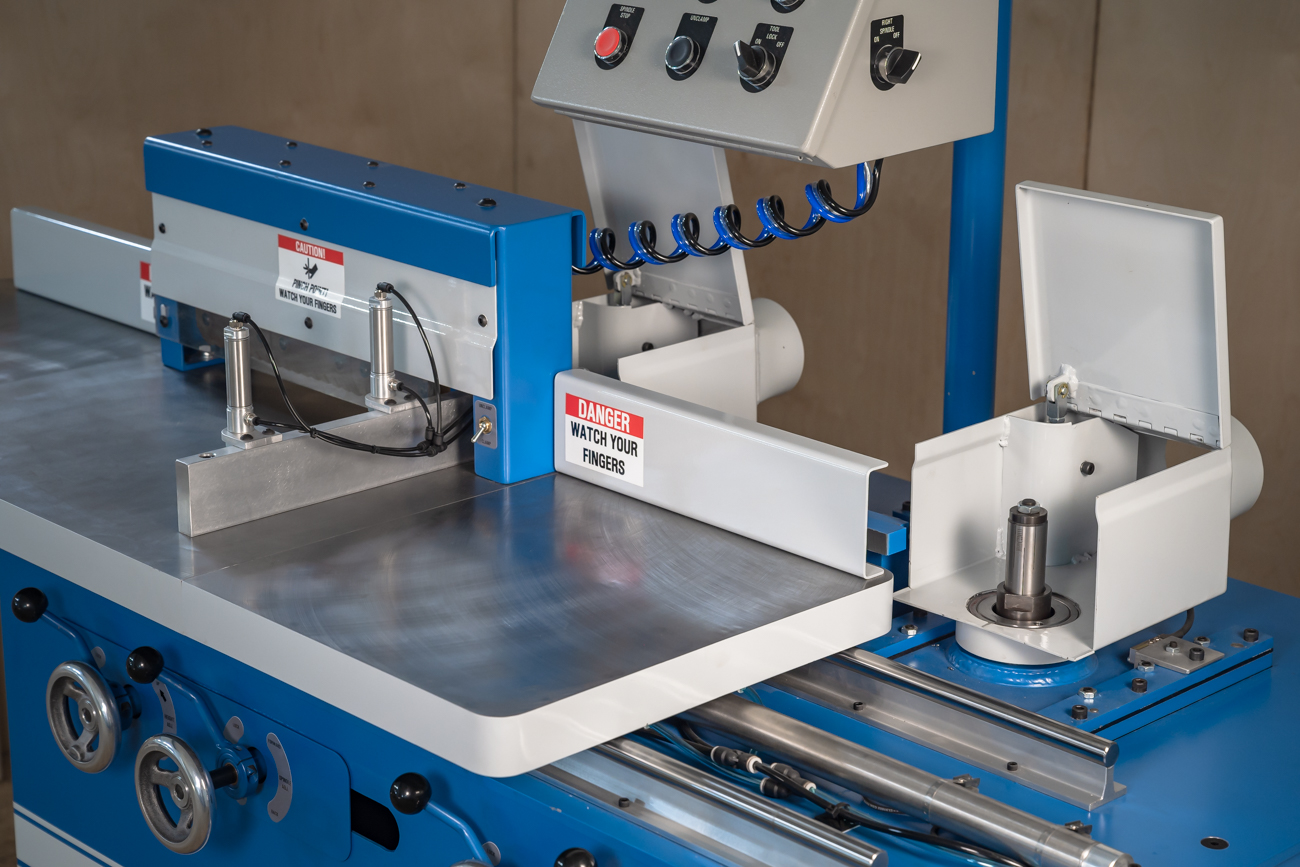

•EASY Pneumatic Hold-Down Clamp System

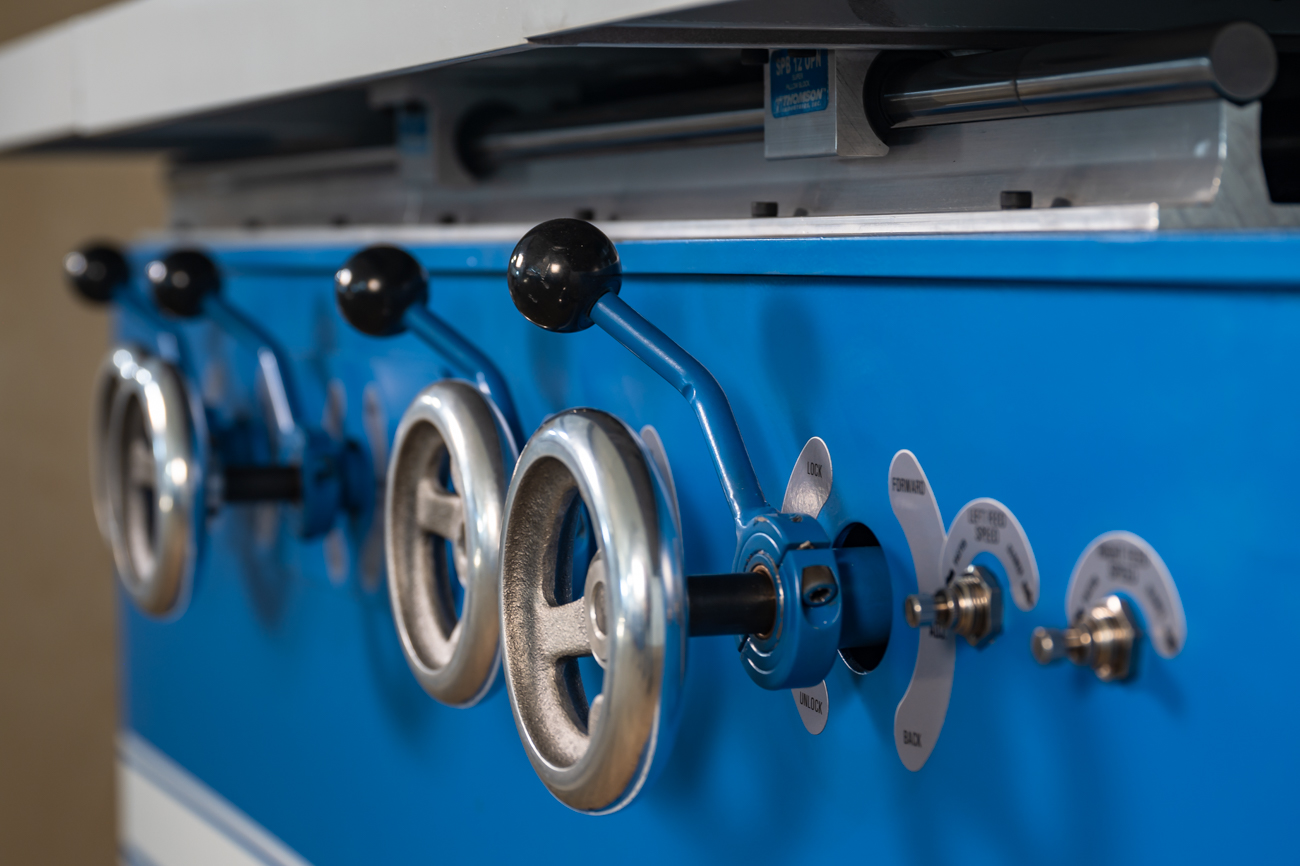

•EASY Y and Z Axis Adjustments with Digital
Readouts •3” and 4” ID Heads Compatible
•1.25” Spindles
•Use your current heads on the QUICK-CHANGE SPINDLES – no tool holders needed
•NO TEAR OUT -
Specs
DRIVE PACKAGE SPECIFICATIONS:
Main Motors: 2 – 5 H.P.
1.25” Spindles
3” and 4” (ID) Cutter Compatible
Available in 220v 3ph, 460v 3ph, and Hydraulic Drive Packages (some electric needed for readouts)
Flat Belt Drive
Y and Z Axis Spindle Adjustments with DRO
UTILITY REQUIREMENTS:
Dust Collection Requirements: 2 – 4″ Outlets, 670 CFM (each)
Pneumatic Requirements: .3 CFM @ 100 PSI to Power Table and Clamp
4 Amp FLA @ 460v 3ph (Motor FLA, not disconnect size)
8 Amp FLA @ 230v 3ph (Motor FLA, not disconnect size)
DIMENSION SPECIFICATIONS:
Table Size: 53” L x 16” W
Table Height: 36”
Footprint: 53” L x 34” D x 60” H (Additional 17” needed on left side for table movement)
Working Area Footprint: 70” L x 34” W x 60” H
SHIPPING WEIGHT: 1900lbs
SHIPPING DIMENSIONS: 61”L x 42”W x 69”H -
