Description
Ideal solution for furniture or frame production.

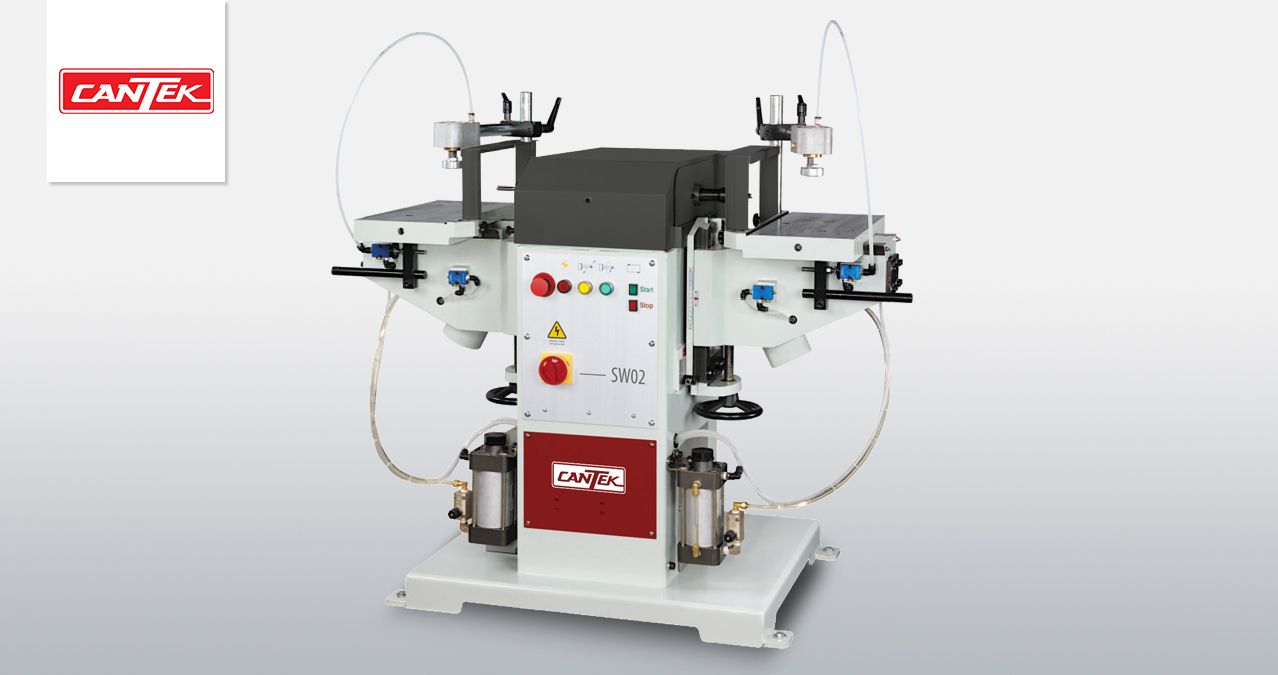

The Cantek SW-02 Oscillating Slot Mortiser is a dual table mortising machine capable of producing horizontal or bevel mortises up to 4.72” long x 1.18” high x 3.15” deep. Paired with the Cantek SW-K6 round tenoner make these the ideal solution for furniture or frame production. The dual table setup permits two operators to work simultaneously for higher throughput and increased productivity. The mortise size is adjustable to your needs and the tables can be adjusted in height to easily locate the mortise precisely for tight and flush joints. A pneumatic clamp holds the workpiece firmly in place.
Why Cantek SW-02 Oscillating Slot Mortiser?
- Dual table setup permits two operators to work simultaneously for increased throughput.
- Capable of producing up to 800 mortises per hour.
- Can produce both horizontal & beveled mortises.
- The air hydraulic combination cylinder assures extremely smooth motion.
- Mortises length & depth are both conveniently adjusted.
- Mortise length adjustment mechanism has a mechanical digital readout for precise adjustment.
- The mortise slot dept is controlled by a proximity switch.
- Employs high quality pneumatic parts for dependable motion control.
- In case of insufficient air pressure, the machine stops for safety protection.
- Cutterhead traverses on a precision round bar, assuring maximum wear resistance, long service life, & high accuracy.
- Tale height is adjustable.
- Chisel bit oscillating speed is variable by frequency inverter.
- Equipped with a safety switch and a pressure switch for safety protection.
-
Specs
Mortise Oscillation Length|Max. 120mm
Mortise Slot Thikness|Max. 30mm
Mortise Slot Depth|Max. 80mm
Hourly Production|500～800 Slots
Table Area|270mm×482mm
Table Tilt（Horizontal)|0˚～－20˚
Table Vertical Movement|0～100mm
Spindle Rotation|9000R.P.M.
Oscillations per minute|67～400 strokes
Spindle Motor|3HP（2.2KW）
Oscillation Motor|0.5HP（0.37KW）
Machine Dimensions（L×W×H|850×1300×1270mm
Net Weight|360KGS -
