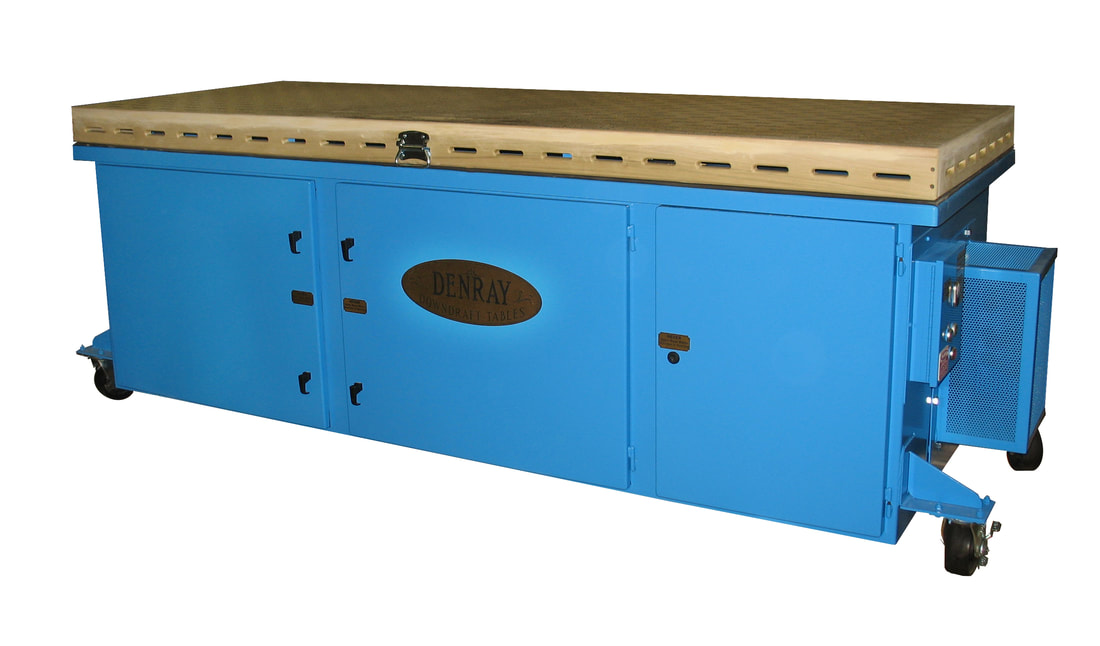

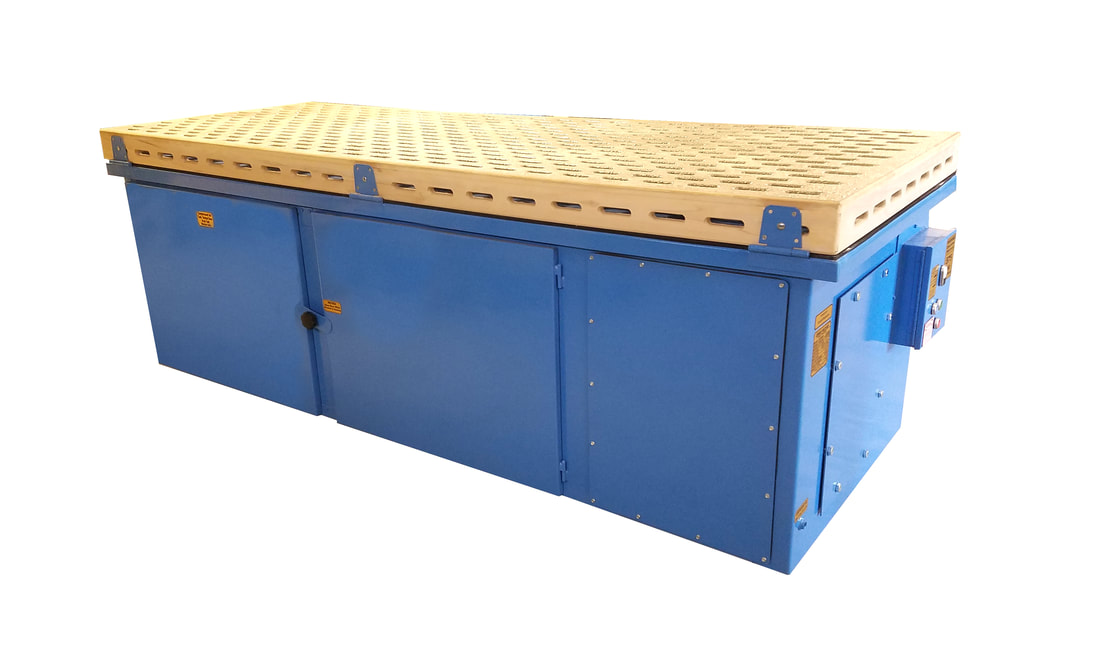

3696B | Denray | Downdraft Tables

  • Power:
    5HP 220V 1PH- 230/460V 3PH
  • Description

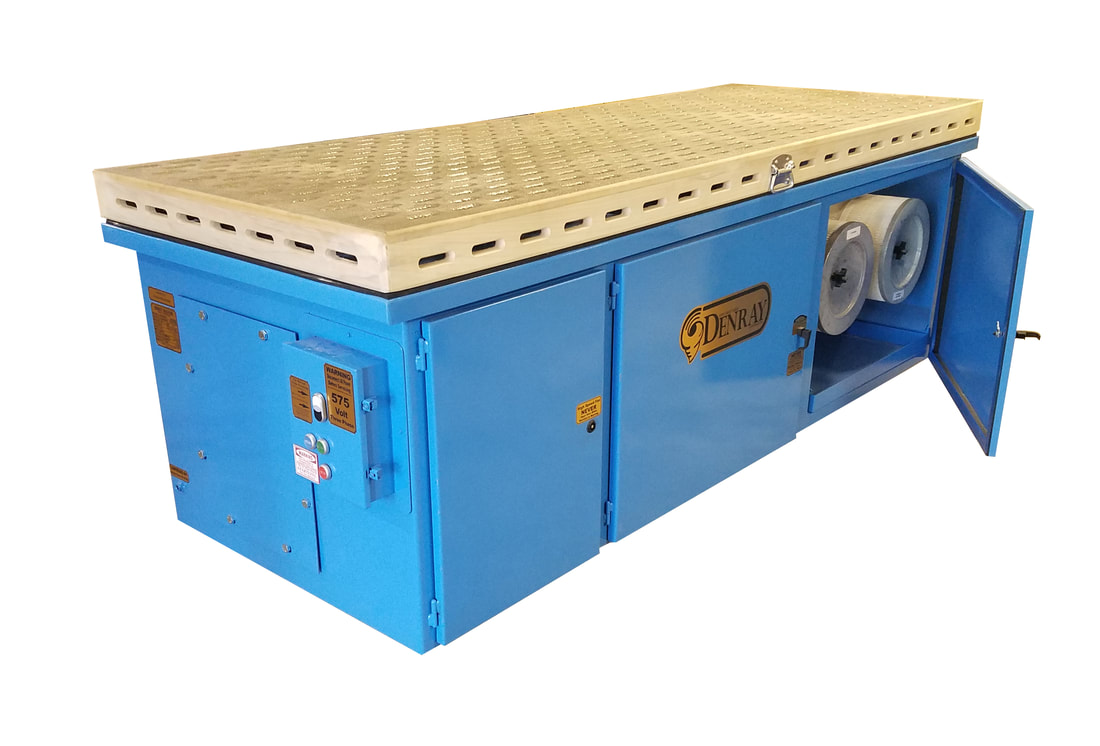

    This model is ideal for medium and large sized jobs and is accommodating for two or three jobs going on at the same time on the same table. The 3696B is one of the larger tables in Denray’s push-button cleaning line. This model comes standard with 80/20 cartridge filters which clean with a 99.95% capture rate at .5 micron, along with a magnetic starter and rubber coated top. *Please note that the starter box on this model is on the left side of the machine.

  • Specs

    •36″ x 72″

    •36″ HEIGHT

    ​•985 LBS

    •5 HP MOTOR

    •18″ FAN

    •4800 CFM

    ​•82 DECIBELS SOUND LEVEL

    •MAG. GAUGE PHASE/VOLTAGE OPTIONS

    SINGLE-PHASE

    220 VOLTAGE (23 AMPS)

    THREE-PHASE

    230 VOLTAGE (13.4 AMPS)

    460 VOLTAGE (6.7 AMPS)

    575 VOLTAGE (5.3 AMPS)
