Description

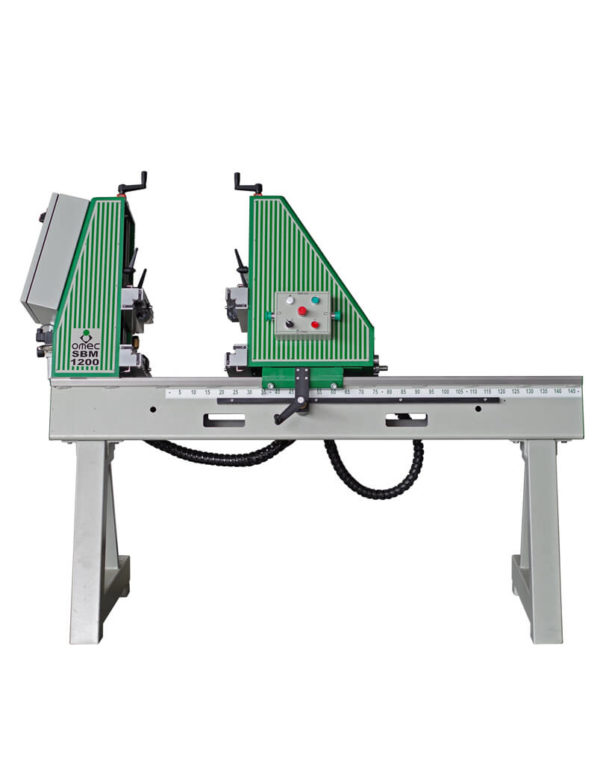

The OMEC SBM1200 manual clamp has been designed and built for assembling small boxes and in particular: the series of the wine boxes, toolboxes, cigar boxes and gift boxes. The size of the box is adjusted manually by the operator. The machine has a hydraulic power plant which drives three cylinders to press the four sides of the box previously inserted in the relevant clamps. Controls are located on a built-in control panel. The SBM1200 model is controlled by a programmable controller (PLC) which is entrusted with the working cycle control.
-
Specs
Power installed on the machine|1.12 Kw
Working pressure|0.4 MPascal
Boxes production|180 n/h
Mass of the machine|445 kg
Mass of the packed machine|525 kg
Overall dimensions (length x width x h)|90x190x160 cm
Dimensions of the packaging|110x220x190 cm
DIMENSIONAL LIMITS OF WORKPIECES
Minimum|Maximum
Width Box|100mm|1050mm
Depth Box|70mm|400mm
Height Box|35mm|255mm
Thickness|2mm|15mm -
