M312 | Circle T | Drawer Notchers

  • Power:
    3PH 230V 1.5HP 4.5 AMP
Request a Quote

  • Description

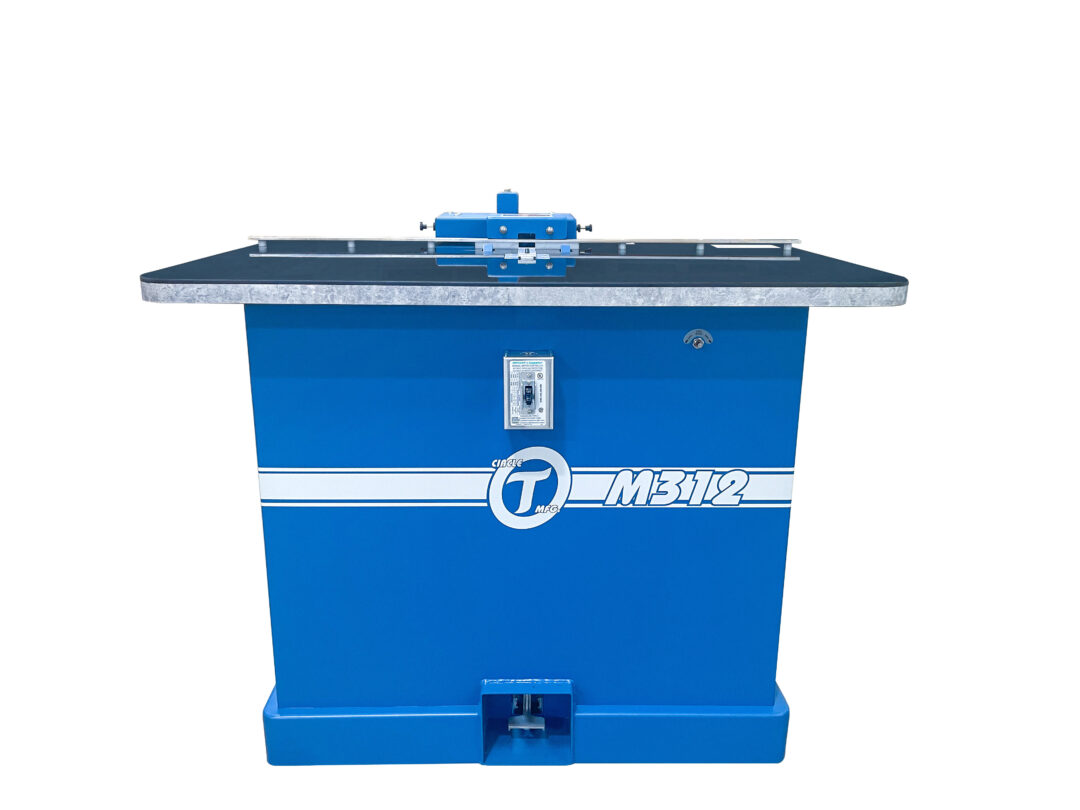

    EASY Drawer Notcher M312 Details


    •The upgraded model M312 includes: EASY Foot Cycle Switch •HIGH WEAR Phenolic Top!!!

    •Under mount notched and locating hole drilled simultaneously!

    •EASY drawer locating regardless of box width using center stop!

    •LOW MAINTENANCE machine for a GREAT VALUE


    APPLICATION SPECIFICATIONS:



    • Notch Dimension: 35mm W x 1/2″ H

    • Locating Hole Diameter: 6mm

    • Operating Performance: Over 200 boxes per hour

  • Specs

    DRIVE PACKAGE SPECIFICATIONS:

    Main Motor: 1.5 HP

    Pneumatic Drill Included

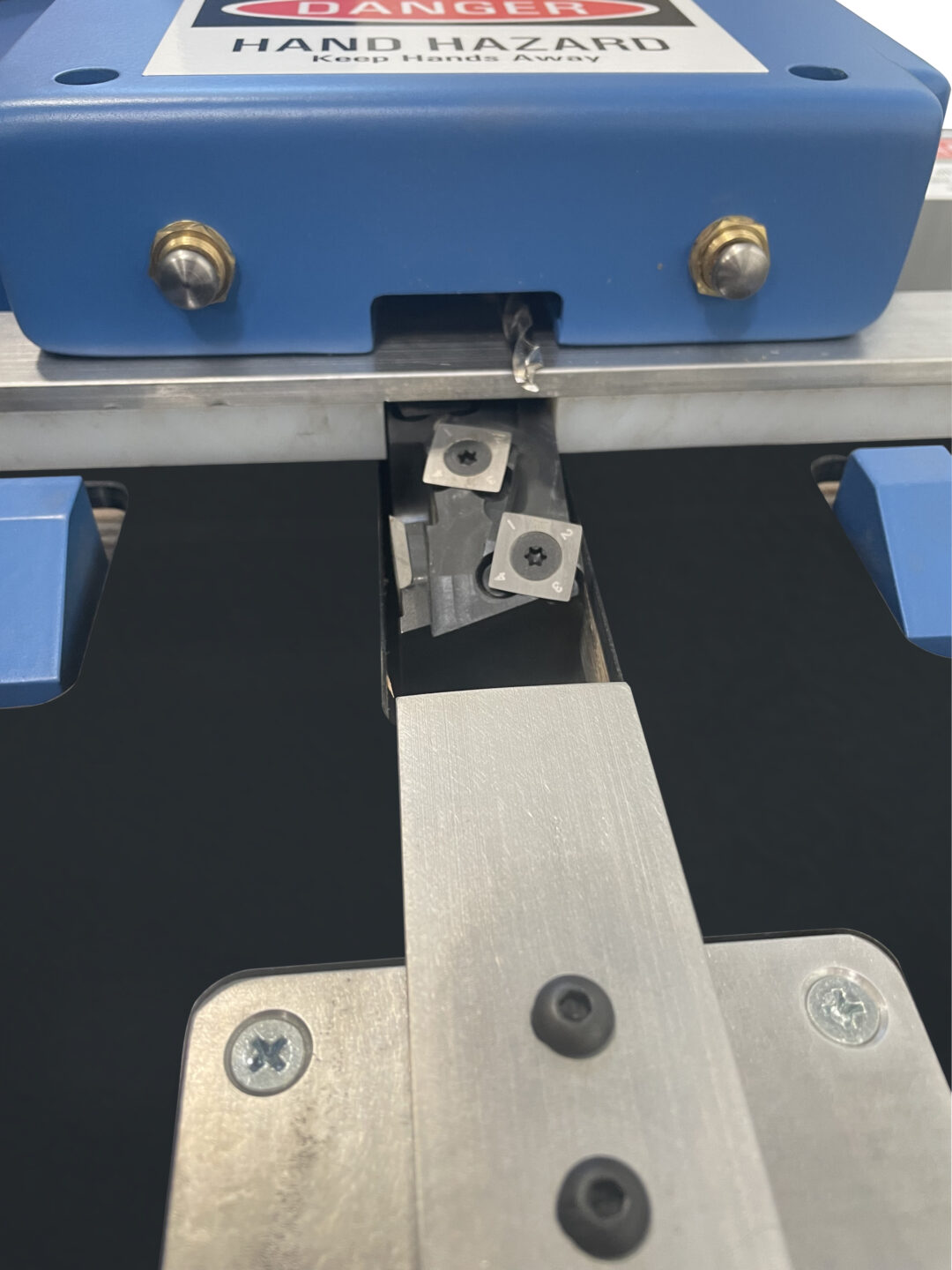

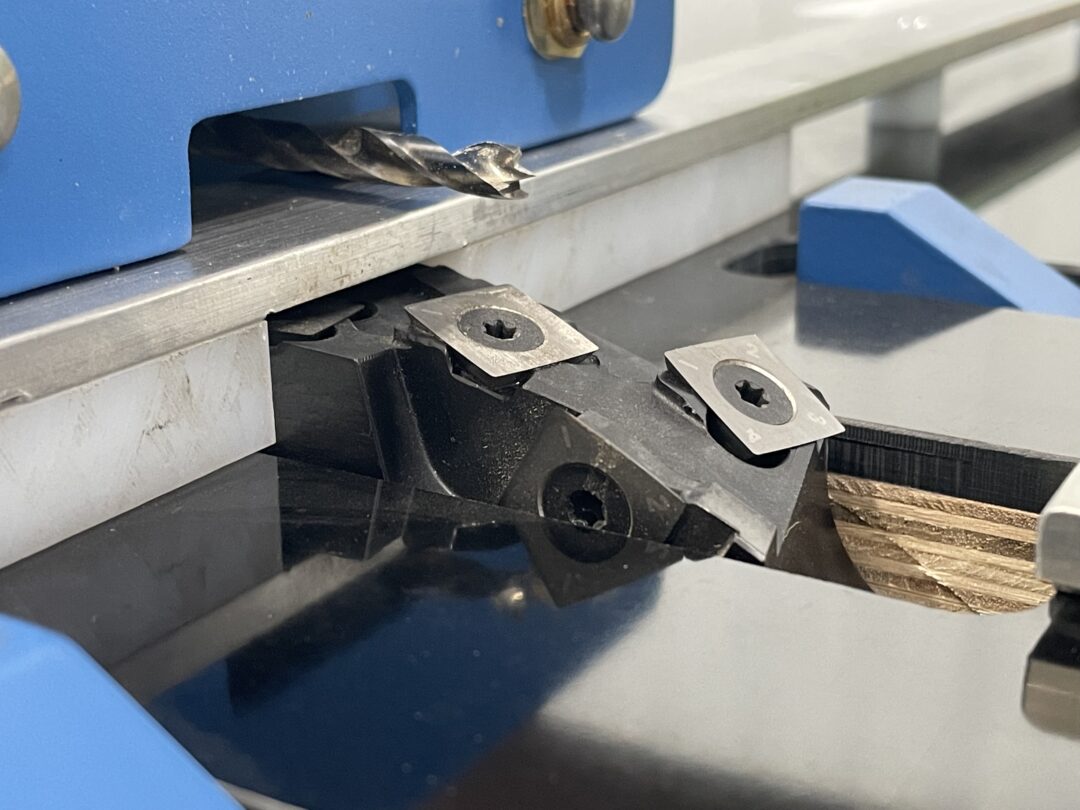

    Insert Cutterhead

    Available in 120V and 220V Single Phase, 230V and 460V 3phase, Hydraulic, and Pneumatic Drive Package as well

    UTILITY REQUIREMENTS:

    Dust Collection Requirements: 670 CFM, 4″ Outlet

    Pneumatic Requirements: 90-100 PSI to power drill and control system

    DIMENSION SPECIFICATIONS:

    Table Size: 22″ x 48″

    Table Height: 36″

    Footprint: 52″ W x 42″ D X 42″ H

    SHIPPING WEIGHT: 625bs

    NET WEIGHT: 460lbs

  • Download

    M312-Brochure-2023-compressed
