Description

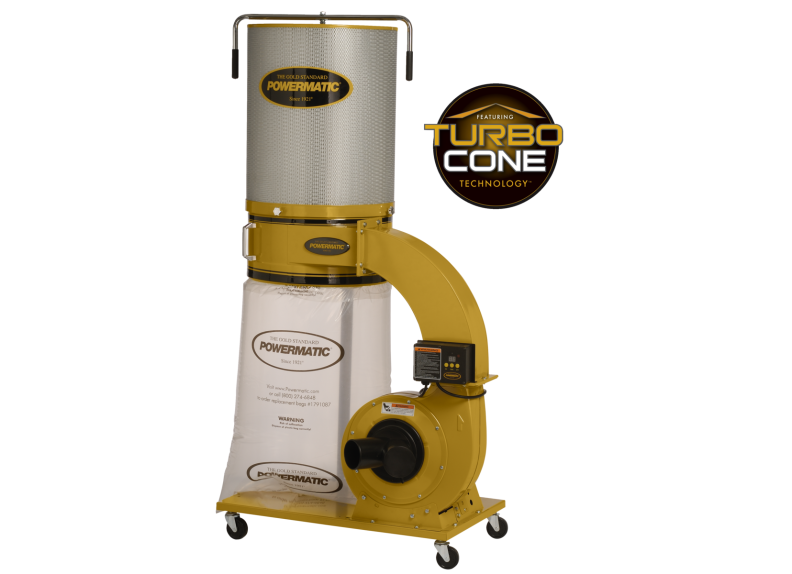

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.
-
Specs
1-Hose Connection Diameter (In.)|6
2-Hoses Connection Diameter (In.)|4
Air Flow @ 6″ (CFM)|1,300
Bag Diameter (In.)|20
Canister Filter Length (In.)|26
Collection Bag Length (In.)|26
Efficiency (Micron)|2
Filter Bag/Canister Length (In.)|26
Gross Weight (Lbs)|165
Impeller Diameter (In.)|12
Impeller Fins|6
Impeller Material|Steel
Motor Amps|15/7.5
Motor Power (HP)|1-3/4
Motor Voltage (V.)|115/230
Net Weight (Lbs.)|154
Overall Dimensions(L x W x H) (In.)|37 x 29 x 72
Prewired Voltage (V.)|115
Prop 65|Cancer and Reproductive Harm
Sound Rating (Db.)|75-90
Static Pressure (Wc.)|11.31
Velocity @ 6″ (FPM)|5,374
