Description
Standard Construction: · 35mm Linear Guide Rails
· Ball Type Linear Guide Bearings
· Helical Rack & Pinion on X & Y Axes
· Ballscrew Z axis
· 5,700 IPM Travel Speeds
· 1,600 IPM Cutting Speeds High Rigidity Constuction:
· 45mm Linear Guide Rails
· Roller Type Linear Guide Bearings
· Pre-Loaded Ballscrews on all Axes
· 2,500 IPM Travel Speeds
· 1,600 IPM Cutting Speeds
· Milling Spindle Options
· Ready for Ferrous Materials
MAKE YOURS PURPOSE BUILT

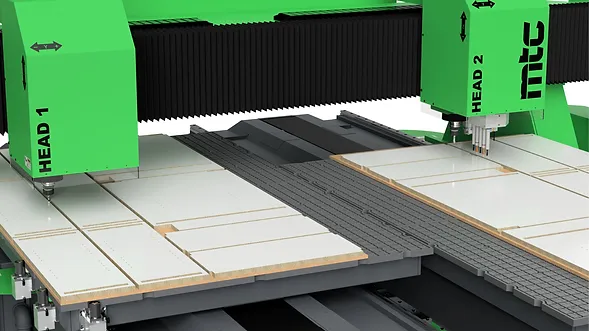

· Up to 4 Cutting Heads
· Automatic Tool Change Spindles
· Drill Units

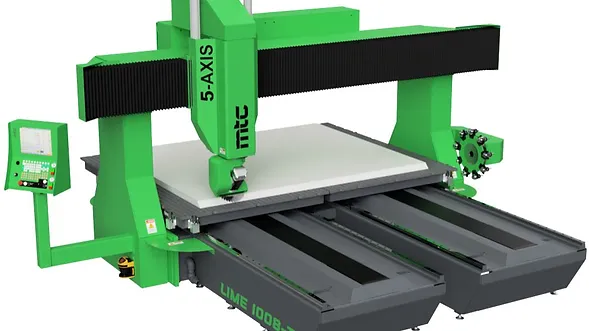

· 5-Axis Machining (RTCP capable)
· Multiple Table Sizes to choose from
· Single Table or Twin Table
· Left-to-Right or Front-to-Back Orientation
Features
· Absolute Encoders
· MPG (Hand-Wheel)
· MPG Simulation with “Play & Rewind”
· Spoil-Board Thickness Management
· Vacuum Matrix Tables
· Pendulum Processing
· On-Spindle Tool Changers
· Programmable Head Positioning -
Specs
Standard Bridge
· 14” of Clearance Under the Bridge
· 16” of Z Axis Travel with Vertical Spindle
· 8″ of Z Axis Travel with 5-Axis Spindle
Mid-Mast Bridge
· 31” of Clearance Under the Bridge
· 31” of Z Axis Travel with Vertical Spindle
· 21″ of Z Axis Travel with 5-Axis Spindle
High-Mast Bridge
· 48” of Clearance Under the Bridge
· 48” of Z Axis · Travel with Vertical Spindle
· 38″ of Z Axis Travel with 5-Axis Spindle
Machine Weights
· 508-12,000 lbs

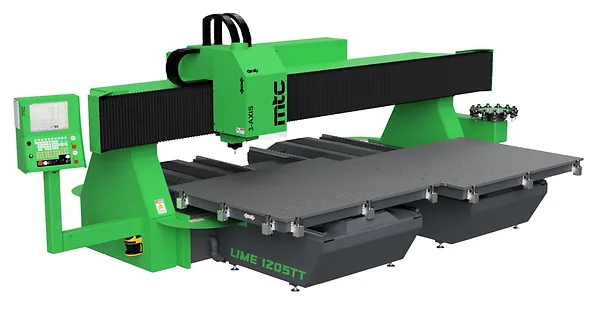

· 1205TT – 16,000 lbs
· 1008TT – 17,000 lbs
